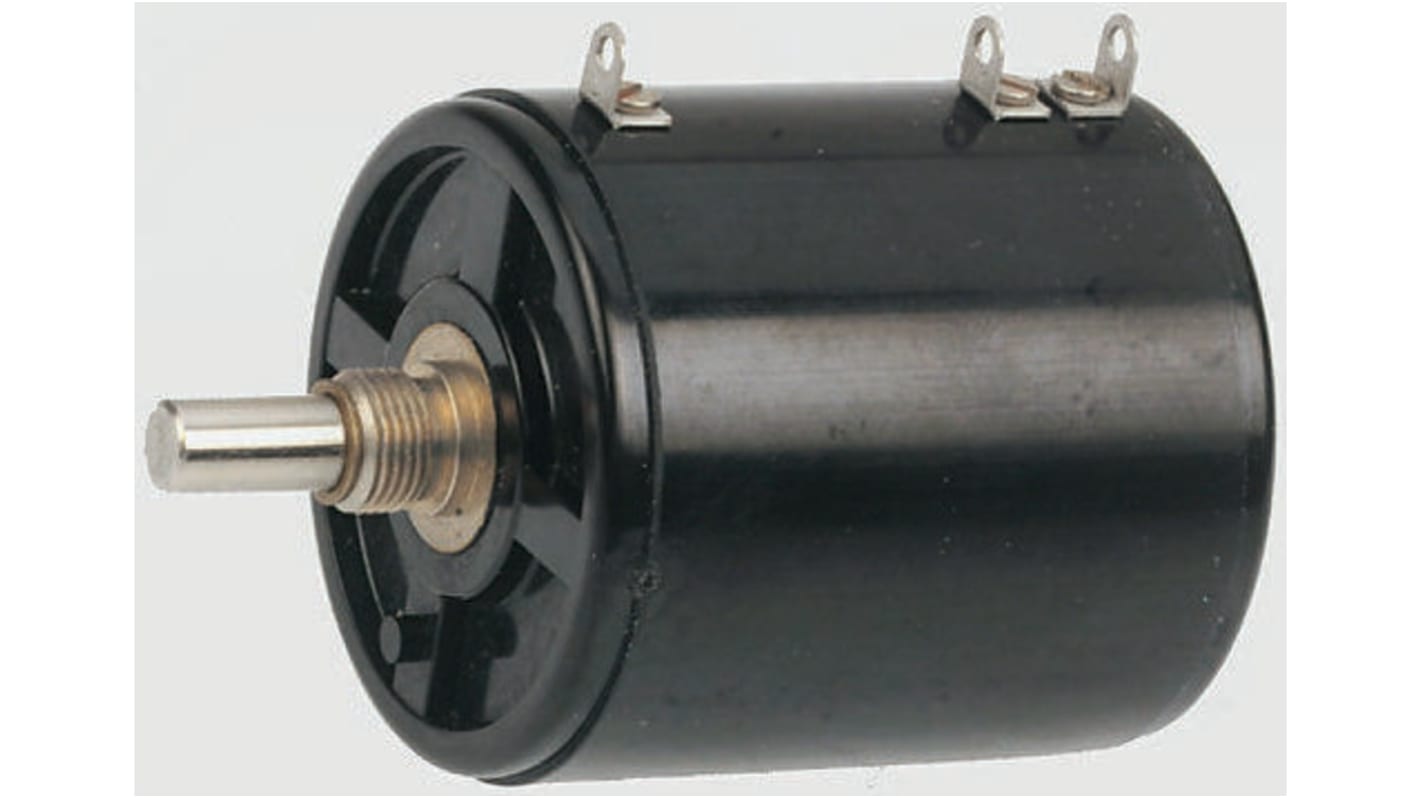

Vishay 860B1101 10 Turn 1 Gang Rotary Wirewound Potentiometer with a 6.35 mm Dia. Shaft, 100Ω, ±3%, 8W, Linear

  • RS Stock No. 294-3713
  • Mfr. Part No. 860B1101
  • Brand Vishay
Technical Reference
Legislation and Compliance
Non Compliant
Product Details

46mm 10 Turn 860 Series

The Vishay 860 range of precision wirewound ten turn potentiometers.

Wirewound potentiometers
Stainless steel shaft
Glass filled thermoset plastic housing

Linearity (Independent) ±0.25%
Temperature Coefficient ±20ppm/ºC (wire only)
  ±800ppm/ºC (100Ω)
  ±110ppm/ºC (2KΩ)
Insulation Resistance 1000MΩ @ 500Vdc
Dielectric Strength 1000Vac (rms)
Electrical & Mechanical, Rotation 3600° +4°/-0°
Rotational Life 500000 shaft rev
Starting Torque (max) 1.7oz -in . (126gcm)
Operating Temperature -55°C → 125°C
Dimensions Body Ø 46.02 L.50.8mm
Shaft (metal) Ø6.35mm L.20.6mm**
Mounting Bush (metal) Ø9.5mm L.7.92mm
* measurement includes bush

Supplied with

metal lockwasher and nut.

Precision - Multi-Turn and Servo

Specifications
Attribute Value
Potentiometer Type Rotary
Maximum Resistance 100 Ω
Number of Gangs 1
Number of Turns 10
Power Rating 8W
Electrical Taper Linear
Mounting Hole Diameter 9.525mm
Element Material Wirewound
Mounting Type Panel Mount
Termination Style Solder Lug
Shaft Length 20.6mm
Shaft Diameter 6.35 mm
Length 71.42mm
Depth 46.02mm
Height 51.56mm
Tolerance ±3%
Dimensions 71.42 x 46.02 x 51.56mm
Series 860
Temperature Coefficient ±800ppm/°C
Minimum Operating Temperature -55°C
Actuator Type Round Shaft
Maximum Operating Temperature +125°C
