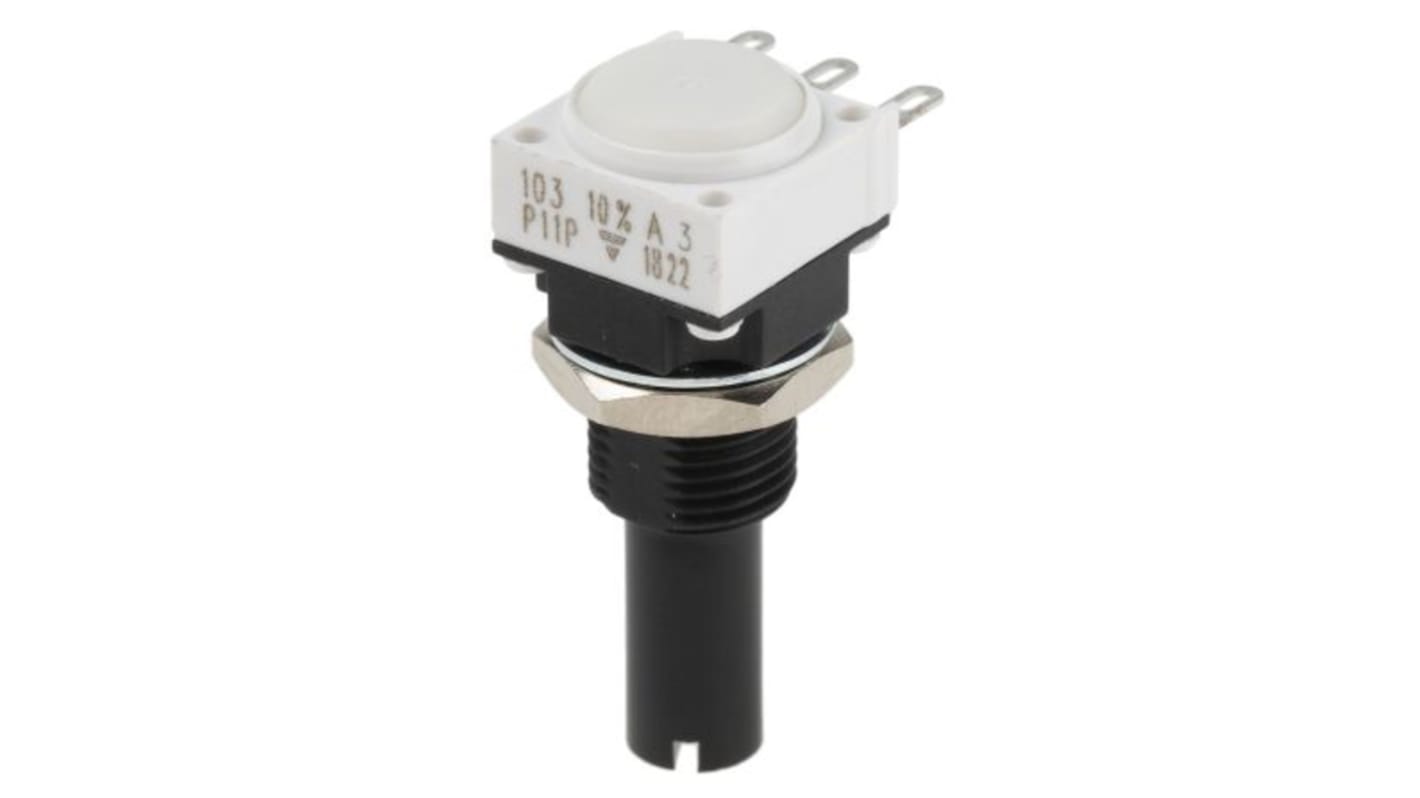

Vishay P11P 10 kΩ Rotary Potentiometer 1-Turns 1-Gang Panel Mount

RS Stock No.:: 168-0053
Mfr. Part No.:: P11P1F0GJSY00103KA
Brand:: Vishay

Vishay P11P 10 kΩ Rotary Potentiometer 1-Turns 1-Gang Panel Mount

Bulk discount available

Subtotal (1 box of 40 units)*

£463.96

(exc. VAT)

£556.76

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 120 unit(s) shipping from 20 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Box*
40 - 40	£11.599	£463.96
80 +	£11.019	£440.76

*price indicative

RS Stock No.:: 168-0053
Mfr. Part No.:: P11P1F0GJSY00103KA
Brand:: Vishay

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Vishay
	Potentiometer Type	Rotary
	Product Type	Potentiometer
	Maximum Resistance	10kΩ
	Shaft Diameter	6.35mm
	Number of Gangs	1
	Packaging	Box
	Number of Turns	1
	Power Rating	1W
	Electrical Taper	Linear
	Element Material	Cermet
	Mount Type	Panel Mount
	Termination Style	Solder Lug
	Shaft Length	22.2mm
	Minimum Operating Temperature	-40°C
	Pin Count	3
	Maximum Operating Temperature	100°C
	Length	10.83mm
	Standards/Approvals	CECC 41000, IEC 60393-1
	Series	P11P
	Actuator Type	Slotted Shaft
	Tolerance ±	10%
	Mounting Hole Diameter	9.525 mm

	Select all
	Brand Vishay
	Potentiometer Type Rotary
	Product Type Potentiometer
	Maximum Resistance 10kΩ
	Shaft Diameter 6.35mm
	Number of Gangs 1
	Packaging Box
	Number of Turns 1
	Power Rating 1W
	Electrical Taper Linear
	Element Material Cermet
	Mount Type Panel Mount
	Termination Style Solder Lug
	Shaft Length 22.2mm
	Minimum Operating Temperature -40°C
	Pin Count 3
	Maximum Operating Temperature 100°C
	Length 10.83mm
	Standards/Approvals CECC 41000, IEC 60393-1
	Series P11P
	Actuator Type Slotted Shaft
	Tolerance ± 10%
	Mounting Hole Diameter 9.525 mm

P11P, P11D 12.5 mm Modular Panel Potentiometer High Dielectric Strength Data Sheet

COO (Country of Origin):: CZ

12.5mm Modular Panel Potentiometer P11P

Vishay P11P series 12.5mm modular panel potentiometers feature cermet elements to provide better stability than carbon elements and also a 5,000-VRMS dielectric strength for greater reliability, robustness, and corrosion protection. The versatile panel potentiometers offer a wide range of configurations for control panel applications in welding machines, Air conditioning units, tooling machines, medical systems, and X-ray equipment. The devices feature up to seven modules, two shaft lengths, and 29 Terminal styles. Offered in shaft and panel-sealed versions, the P11P series provides up to 21 indent positions along with rotary switch options.

High Dielectric Strength Potentiometer up to 5000Vrms

12.5mm Square, Single-Turn Panel Control

Plastic shaft and bushing

Two shaft lengths

Cermet element

Test according to CECC 41000 or IEC 60393-1
