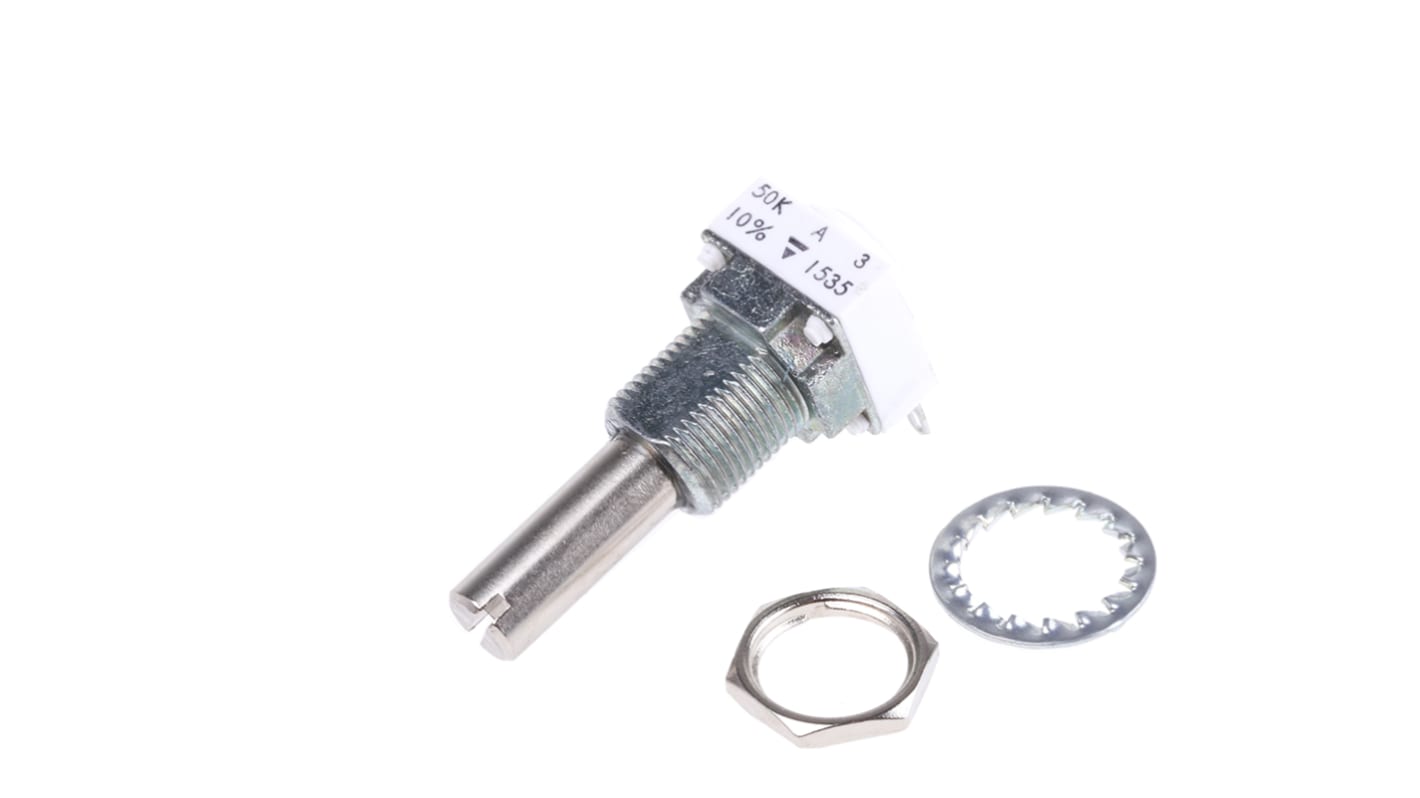

Vishay P11S 50kΩ Rotary Potentiometer 1-Gang Panel Mount, P11S1V0FLSY00503KA
- RS Stock No.:
- 167-8875
- Mfr. Part No.:
- P11S1V0FLSY00503KA
- Brand:
- Vishay
Bulk discount available
Subtotal (1 box of 60 units)*
£677.34
(exc. VAT)
£812.82
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Box* |
|---|---|---|
| 60 - 60 | £11.289 | £677.34 |
| 120 + | £10.724 | £643.44 |
*price indicative
- RS Stock No.:
- 167-8875
- Mfr. Part No.:
- P11S1V0FLSY00503KA
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Potentiometer Type | Rotary | |
| Maximum Resistance | 50kΩ | |
| Number of Gangs | 1 | |
| Number of Turns | 1 | |
| Power Rating | 1W | |
| Electrical Taper | Linear | |
| Element Material | Cermet | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Shaft Length | 25mm | |
| Shaft Diameter | 6 mm | |
| Tolerance | ±10% | |
| Series | P11S | |
| Actuator Type | Slotted Shaft | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Potentiometer Type Rotary | ||
Maximum Resistance 50kΩ | ||
Number of Gangs 1 | ||
Number of Turns 1 | ||
Power Rating 1W | ||
Electrical Taper Linear | ||
Element Material Cermet | ||
Mounting Type Panel Mount | ||
Termination Style Solder Lug | ||
Shaft Length 25mm | ||
Shaft Diameter 6 mm | ||
Tolerance ±10% | ||
Series P11S | ||
Actuator Type Slotted Shaft | ||
12mm P11 Series
Cermet track potentiometer with metal body and shaft
Panel mounting, solder pin connection
Single or double linear & logarithmic models
Insulation resistance >1000GΩ at 500Vdc
Environmental class 55/125/56
Enclosures class IP64
Linear tracks rated 1W, log tracks 0.5W
Panel mounting, solder pin connection
Single or double linear & logarithmic models
Insulation resistance >1000GΩ at 500Vdc
Environmental class 55/125/56
Enclosures class IP64
Linear tracks rated 1W, log tracks 0.5W
Standards
CECC 41301-004; NFC 83253; LNZ, GAM T1
Supplied with
metal lock washer and nut.
