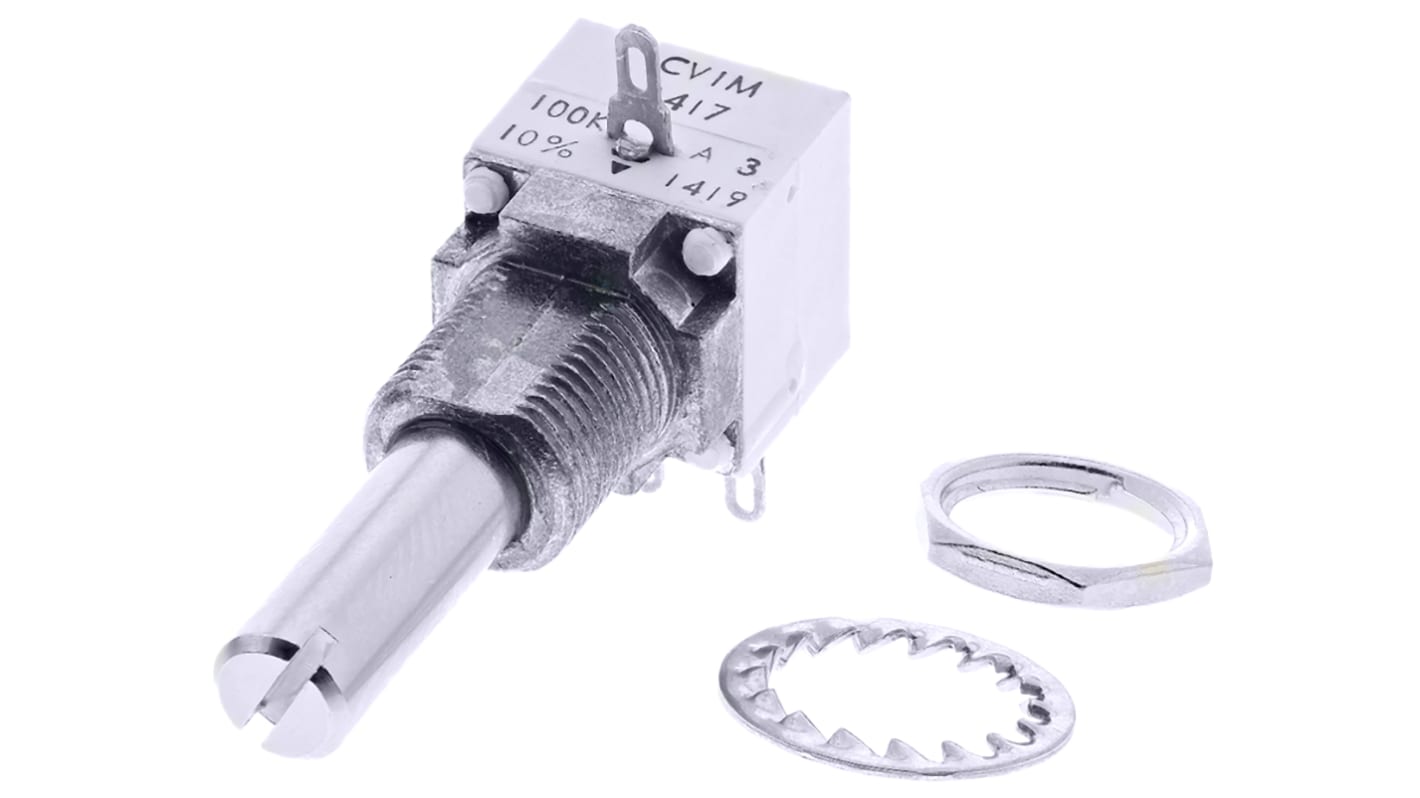

Vishay P11S 100kΩ Rotary Potentiometer 1-Gang Panel Mount, P11S2V0FLSY00D0046
- RS Stock No.:
- 167-8944
- Mfr. Part No.:
- P11S2V0FLSY00D0046
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 167-8944
- Mfr. Part No.:
- P11S2V0FLSY00D0046
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Potentiometer Type | Rotary | |
| Maximum Resistance | 100kΩ | |
| Number of Gangs | 1 | |
| Number of Turns | 1 | |
| Power Rating | 1W | |
| Electrical Taper | Linear | |
| Element Material | Cermet | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Shaft Length | 25mm | |
| Shaft Diameter | 6 mm | |
| Tolerance | ±10% | |
| Series | P11S | |
| Actuator Type | Slotted Shaft | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Potentiometer Type Rotary | ||
Maximum Resistance 100kΩ | ||
Number of Gangs 1 | ||
Number of Turns 1 | ||
Power Rating 1W | ||
Electrical Taper Linear | ||
Element Material Cermet | ||
Mounting Type Panel Mount | ||
Termination Style Solder Lug | ||
Shaft Length 25mm | ||
Shaft Diameter 6 mm | ||
Tolerance ±10% | ||
Series P11S | ||
Actuator Type Slotted Shaft | ||
- COO (Country of Origin):
- CZ
Vishay 1W Sealed single turn potentiometer with mid point - P11 series
Potentiometers with cermet track
6 mm metal shaft
Version with mid point "J" located at 50 % of the electrical travel
Mid click at the central point
Panel installation, solder terminal outputs
6 mm metal shaft
Version with mid point "J" located at 50 % of the electrical travel
Mid click at the central point
Panel installation, solder terminal outputs
Approvals
CEGCC 41301-004. NFC 83253
