MPN

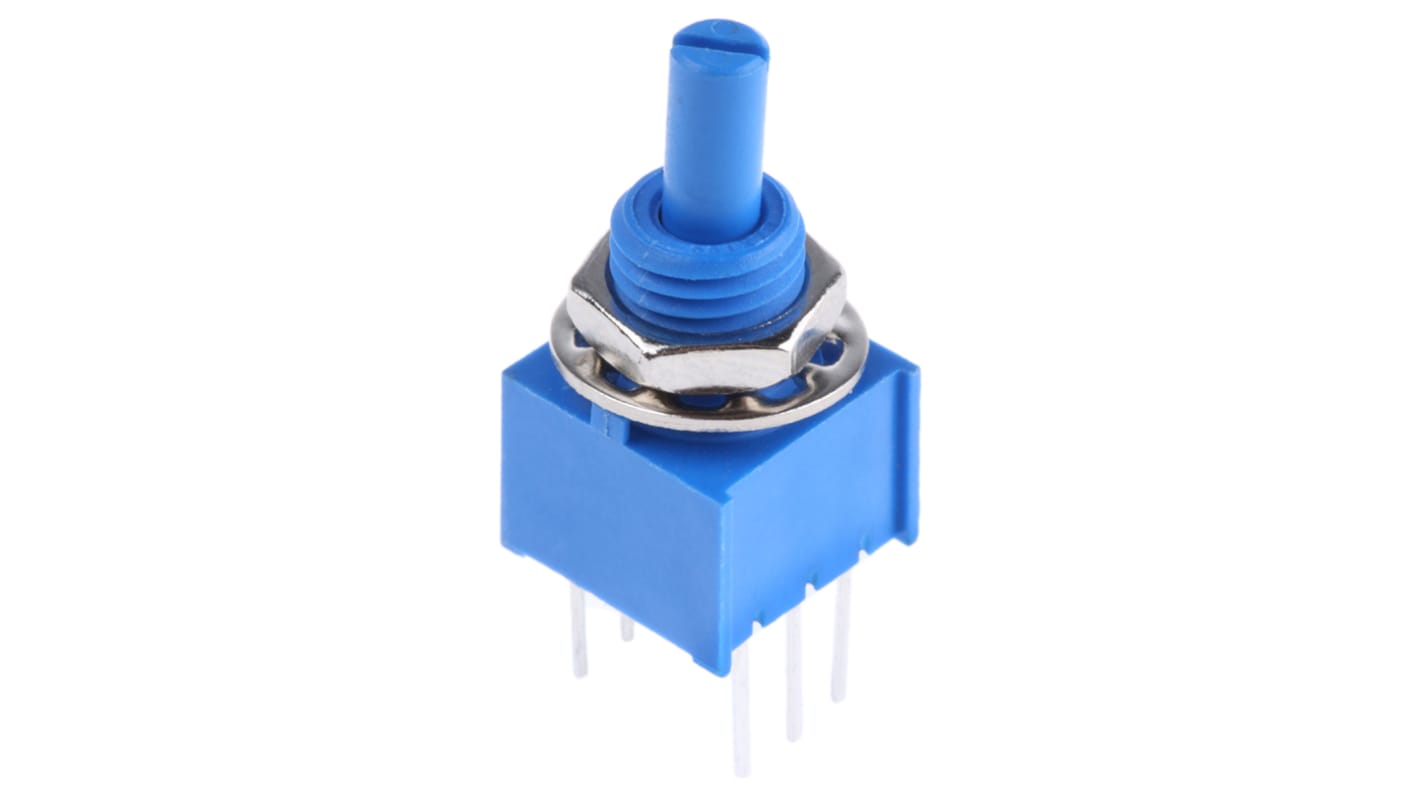

Bourns 3310 10 kΩ Rotary Potentiometer 1-Turns 2-Gang Panel Mount, Through Hole

RS Stock No.:: 167-3219
Mfr. Part No.:: 3310H-003-103L
Brand:: Bourns

Bourns 3310 10 kΩ Rotary Potentiometer 1-Turns 2-Gang Panel Mount, Through Hole

Subtotal (1 tube of 50 units)*

£438.35

(exc. VAT)

£526.00

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

100 unit(s) shipping from 30 March 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Tube*
50 +	£8.767	£438.35

*price indicative

RS Stock No.:: 167-3219
Mfr. Part No.:: 3310H-003-103L
Brand:: Bourns

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Bourns
	Potentiometer Type	Rotary
	Product Type	Potentiometer
	Maximum Resistance	10kΩ
	Shaft Diameter	3.18mm
	Number of Gangs	2
	Number of Turns	1
	Power Rating	0.25W
	Electrical Taper	Linear
	Element Material	Conductive Plastic
	Mount Type	Panel Mount, Through Hole
	Termination Style	PC Pin
	Shaft Length	12.7mm
	Minimum Operating Temperature	-40°C
	Adjustment Type	Side
	Pin Count	3
	Maximum Operating Temperature	125°C
	Length	9.53mm
	Standards/Approvals	RoHS
	Actuator Type	Slotted Shaft
	Tolerance ±	20%
	Mounting Hole Diameter	6.35 mm
	Series	3310

	Select all
	Brand Bourns
	Potentiometer Type Rotary
	Product Type Potentiometer
	Maximum Resistance 10kΩ
	Shaft Diameter 3.18mm
	Number of Gangs 2
	Number of Turns 1
	Power Rating 0.25W
	Electrical Taper Linear
	Element Material Conductive Plastic
	Mount Type Panel Mount, Through Hole
	Termination Style PC Pin
	Shaft Length 12.7mm
	Minimum Operating Temperature -40°C
	Adjustment Type Side
	Pin Count 3
	Maximum Operating Temperature 125°C
	Length 9.53mm
	Standards/Approvals RoHS
	Actuator Type Slotted Shaft
	Tolerance ± 20%
	Mounting Hole Diameter 6.35 mm
	Series 3310
