MPN

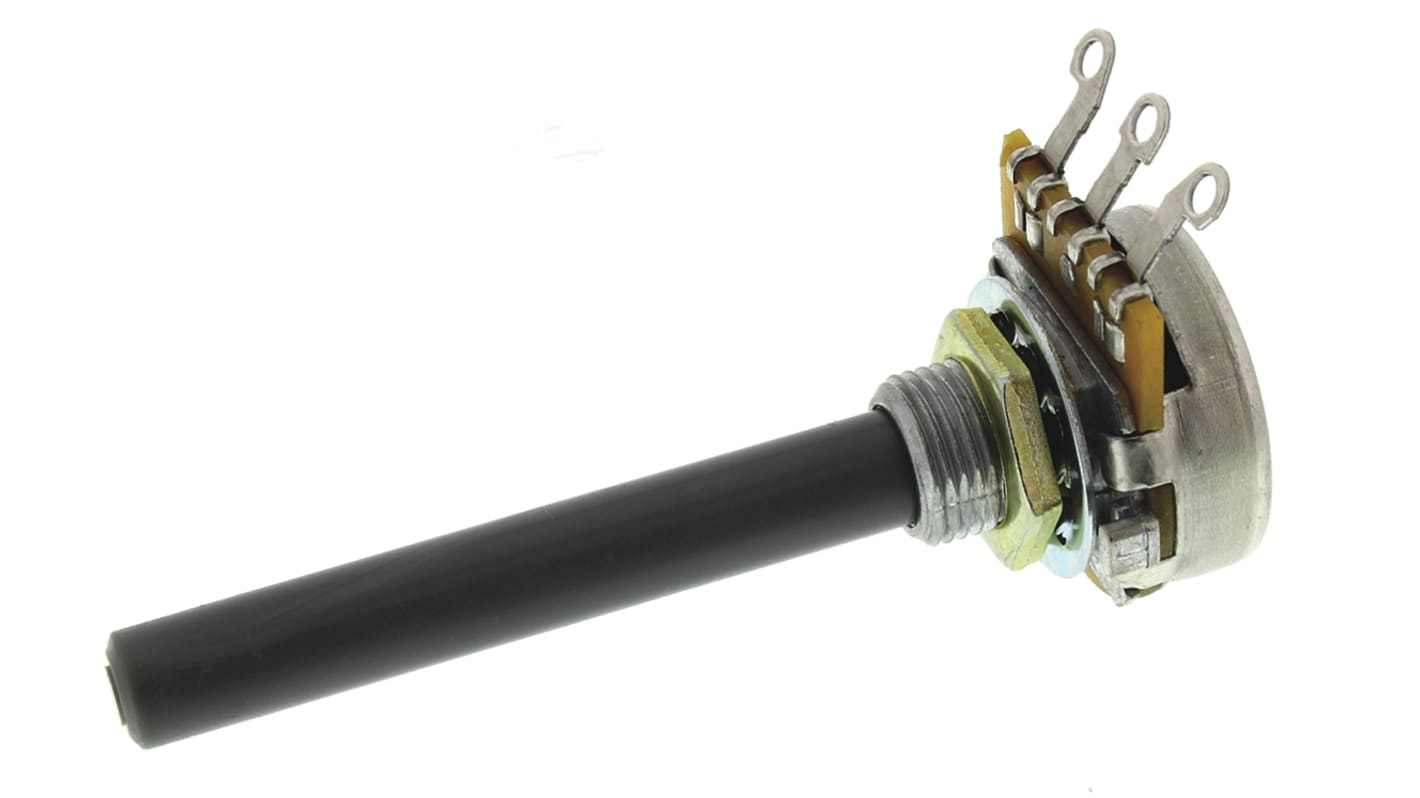

TE Connectivity 23 100 kΩ Rotary Potentiometer 1-Turns 1-Gang Panel Mount

RS Stock No.:: 135-4431
Mfr. Part No.:: 1624153-2
Brand:: TE Connectivity

TE Connectivity 23 100 kΩ Rotary Potentiometer 1-Turns 1-Gang Panel Mount

Subtotal (1 box of 200 units)*

£562.00

(exc. VAT)

£674.00

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 1,600 unit(s) shipping from 20 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Box*
200 +	£2.81	£562.00

*price indicative

RS Stock No.:: 135-4431
Mfr. Part No.:: 1624153-2
Brand:: TE Connectivity

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TE Connectivity
	Potentiometer Type	Rotary
	Product Type	Potentiometer
	Maximum Resistance	100kΩ
	Number of Gangs	1
	Shaft Diameter	6.35mm
	Number of Turns	1
	Power Rating	0.2W
	Electrical Taper	Logarithmic
	Element Material	Carbon
	Mount Type	Panel Mount
	Termination Style	Solder Lug
	Shaft Length	30mm
	Minimum Operating Temperature	-25°C
	Pin Count	3
	Adjustment Type	Side
	Maximum Operating Temperature	70°C
	Length	60.7mm
	Height	25.2mm
	Standards/Approvals	RoHS
	Depth	21.6mm
	Actuator Type	Round Shaft
	Tolerance ±	20%
	Series	23

	Select all
	Brand TE Connectivity
	Potentiometer Type Rotary
	Product Type Potentiometer
	Maximum Resistance 100kΩ
	Number of Gangs 1
	Shaft Diameter 6.35mm
	Number of Turns 1
	Power Rating 0.2W
	Electrical Taper Logarithmic
	Element Material Carbon
	Mount Type Panel Mount
	Termination Style Solder Lug
	Shaft Length 30mm
	Minimum Operating Temperature -25°C
	Pin Count 3
	Adjustment Type Side
	Maximum Operating Temperature 70°C
	Length 60.7mm
	Height 25.2mm
	Standards/Approvals RoHS
	Depth 21.6mm
	Actuator Type Round Shaft
	Tolerance ± 20%
	Series 23

Datasheet

COO (Country of Origin):: GB

50mm Long Shaft, Rotary, Switched and Dual Potentiometers

TE Connectivity brings you a range of premium quality rotary potentiometers. With their brilliant build quality, they also boast a carbon element material and are panel mounted. They’re built with ruggedness in mind and are housed in an aluminium housing. Not to mention they’re solder lug termination to make it easier for a panel mount.
