Bourns PTL 10kΩ Slide Slide Potentiometer 1-Gang Through Hole, PTL01-15R0-103B1

View all Potentiometers

Subtotal (1 unit)*

£4.43

(exc. VAT)

£5.32

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 527 unit(s) shipping from 13 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£4.43

*price indicative

RS Stock No.:
134-8196
Mfr. Part No.:
PTL01-15R0-103B1
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Potentiometer Type

Slide

Maximum Resistance

10kΩ

Number of Gangs

1

Number of Turns

1

Power Rating

0.2W

Electrical Taper

Linear

Element Material

Carbon

Mounting Type

Through Hole

Termination Style

PC Pin

Shaft Length

15mm

Travel Length

100mm

Tolerance

±20%

Actuator Type

Lever

Series

PTL

COO (Country of Origin):
TW

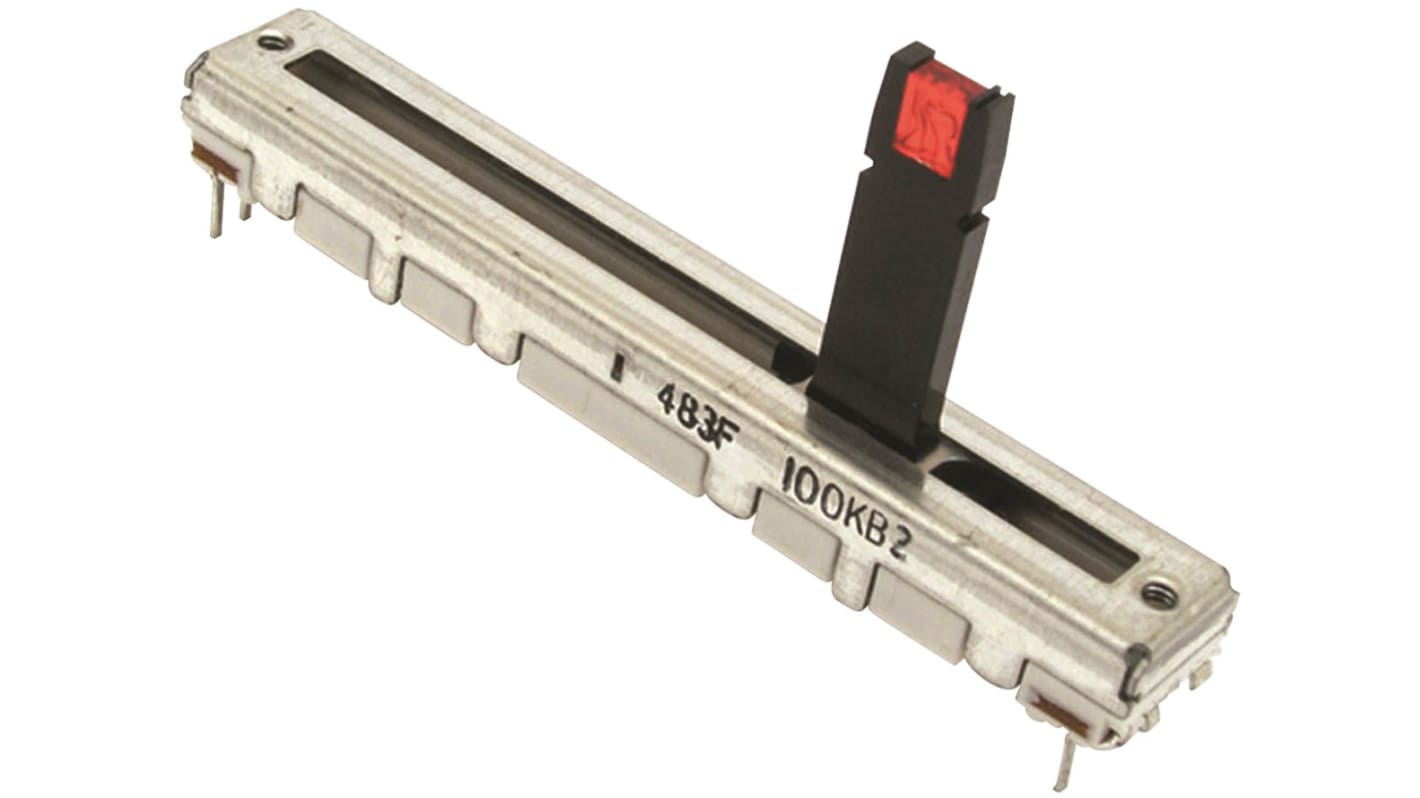

PTL Series - Slide Potentiometer with LED


PTL Series slide potentiometer with LED lever illumination, a carbon element and a linear taper. The PTL series slide potentiometers are available in a choice of two colours / travel length options with a 15mm lever and a centre detent. Applications for the PTL series include mixing consoles, drum machines, keyboards and synthesisers and equalisers.

Colour / travel length options:-

30mm travel length option with Green LED
60mm travel length option with Red LED
60mm travel length option with Green LED
