Vishay P16 1kΩ Rotary Potentiometer 1-Gang Panel Mount, P16NP102MAB15CV1F
- RS Stock No.:
- 329-019
- Mfr. Part No.:
- P16NP102MAB15CV1F
- Brand:
- Vishay
Subtotal (1 box of 20 units)*
£261.00
(exc. VAT)
£313.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 20 + | £13.05 | £261.00 |
*price indicative
- RS Stock No.:
- 329-019
- Mfr. Part No.:
- P16NP102MAB15CV1F
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Potentiometer Type | Rotary | |
| Maximum Resistance | 1kΩ | |
| Number of Gangs | 1 | |
| Number of Turns | 1 | |
| Power Rating | 0.5W | |
| Electrical Taper | Linear | |
| Element Material | Cermet | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Shaft Length | 8.8mm | |
| Shaft Diameter | 16 mm | |
| Actuator Type | Round Shaft | |
| Series | P16 | |
| Tolerance | ±20% | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Potentiometer Type Rotary | ||
Maximum Resistance 1kΩ | ||
Number of Gangs 1 | ||
Number of Turns 1 | ||
Power Rating 0.5W | ||
Electrical Taper Linear | ||
Element Material Cermet | ||
Mounting Type Panel Mount | ||
Termination Style Solder Lug | ||
Shaft Length 8.8mm | ||
Shaft Diameter 16 mm | ||
Actuator Type Round Shaft | ||
Series P16 | ||
Tolerance ±20% | ||
- COO (Country of Origin):
- CZ

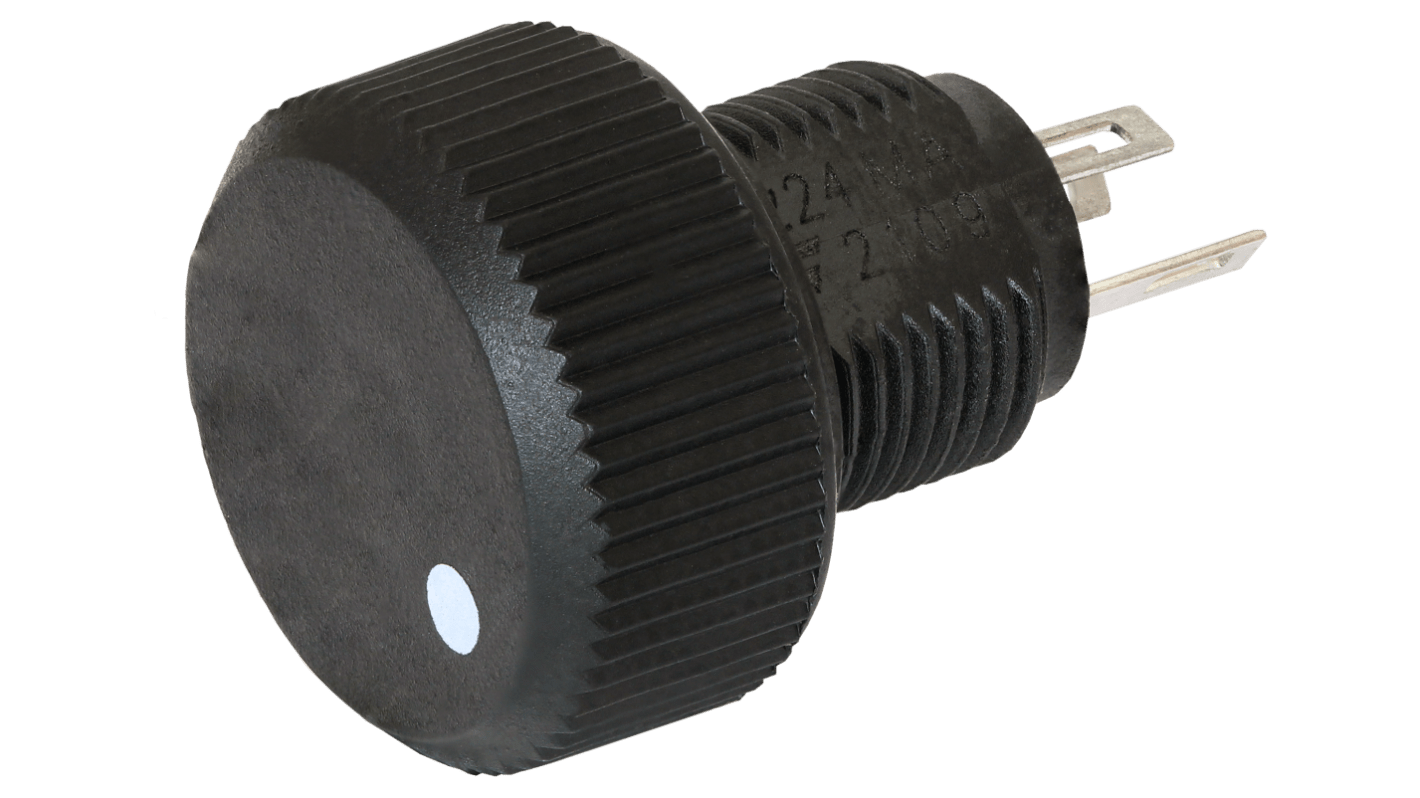

The Vishay Knob Potentiometer features a unique design that integrates a knob with a cermet potentiometer. This design allows the mounting hardware and terminals to be located on the backside of the panel, minimizing the required clearance. This compact arrangement makes the potentiometer ideal for applications where space is limited while still providing precise control.
IP67 rated
Fully sealed and panel sealed
Compact
Test according to CECC 41000 or IEC 60393-1
RoHS compliant
Fully sealed and panel sealed
Compact
Test according to CECC 41000 or IEC 60393-1
RoHS compliant
