Vishay P16 100kΩ Rotary Potentiometer 1-Gang Panel Mount, P16NM104MAB15CV1D

View all Potentiometers

Subtotal (1 unit)*

£21.52

(exc. VAT)

£25.82

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 38 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£21.52

*price indicative

RS Stock No.:
298-388
Mfr. Part No.:
P16NM104MAB15CV1D
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Potentiometer Type

Rotary

Maximum Resistance

100kΩ

Number of Gangs

1

Number of Turns

1

Power Rating

1W

Electrical Taper

Linear

Element Material

Cermet

Mounting Type

Panel Mount

Termination Style

Solder Lug

Shaft Length

9.4mm

Shaft Diameter

16 mm

Actuator Type

Round Shaft

Tolerance

±20%

Series

P16

COO (Country of Origin):
CZ

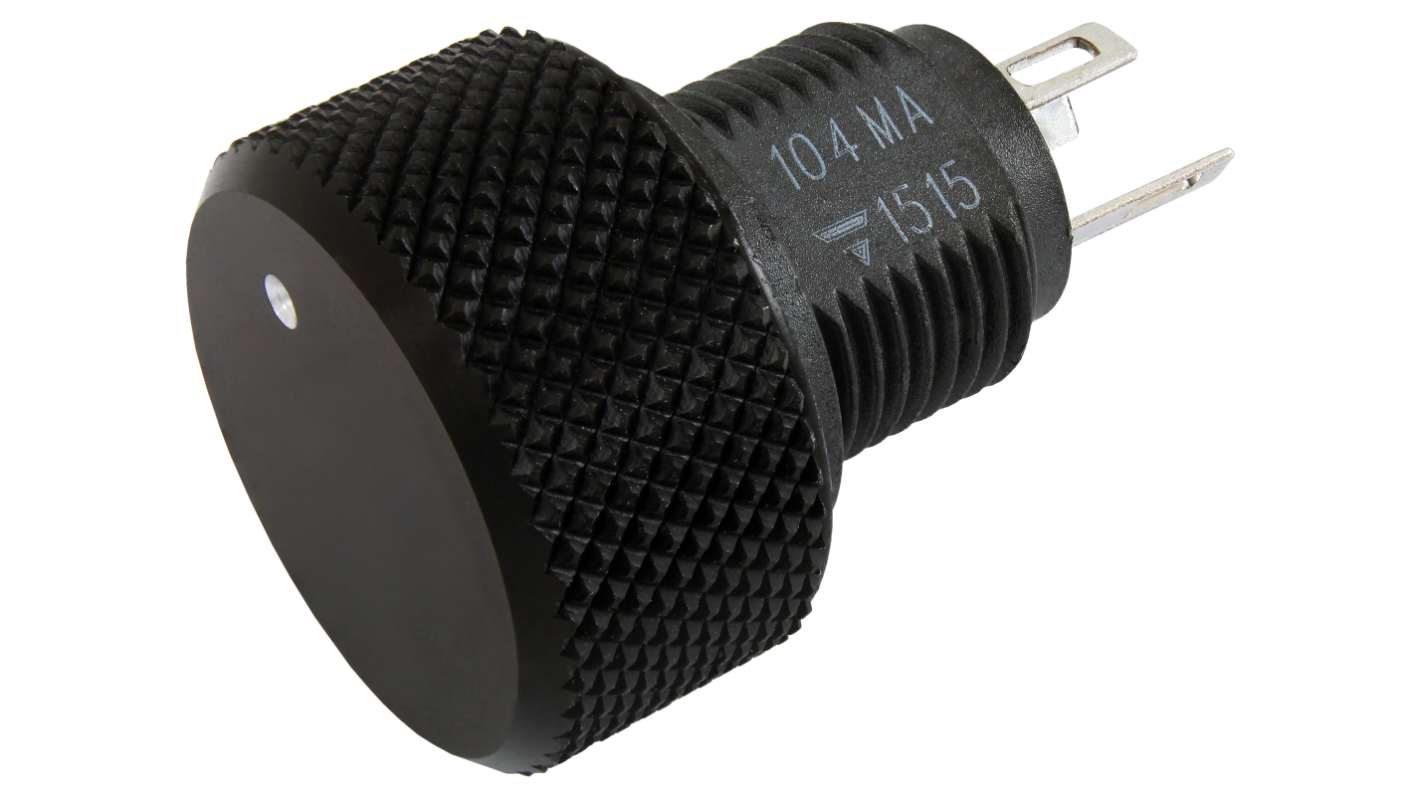

The Vishay Potentiometer comes with a compact design, featuring a knob-driven cermet potentiometer. The P16 version is rated for 1 W at 40°C for industrial applications, while the PA16 version is rated for 0.5 W at 40°C for audio applications. It offers high dielectric strength of 2500 VRMS and is fully sealed with minimal clearance requirements. Tested according to CECC 41000 or IEC 60393-1.

Blue white yellow red and black knob
Several marking dot line gradient 5 graduations 10 graduations fan light volume temperature
Metallic or plastic knob options
Custom knob and marking on request
Detent option on request haptic technology
