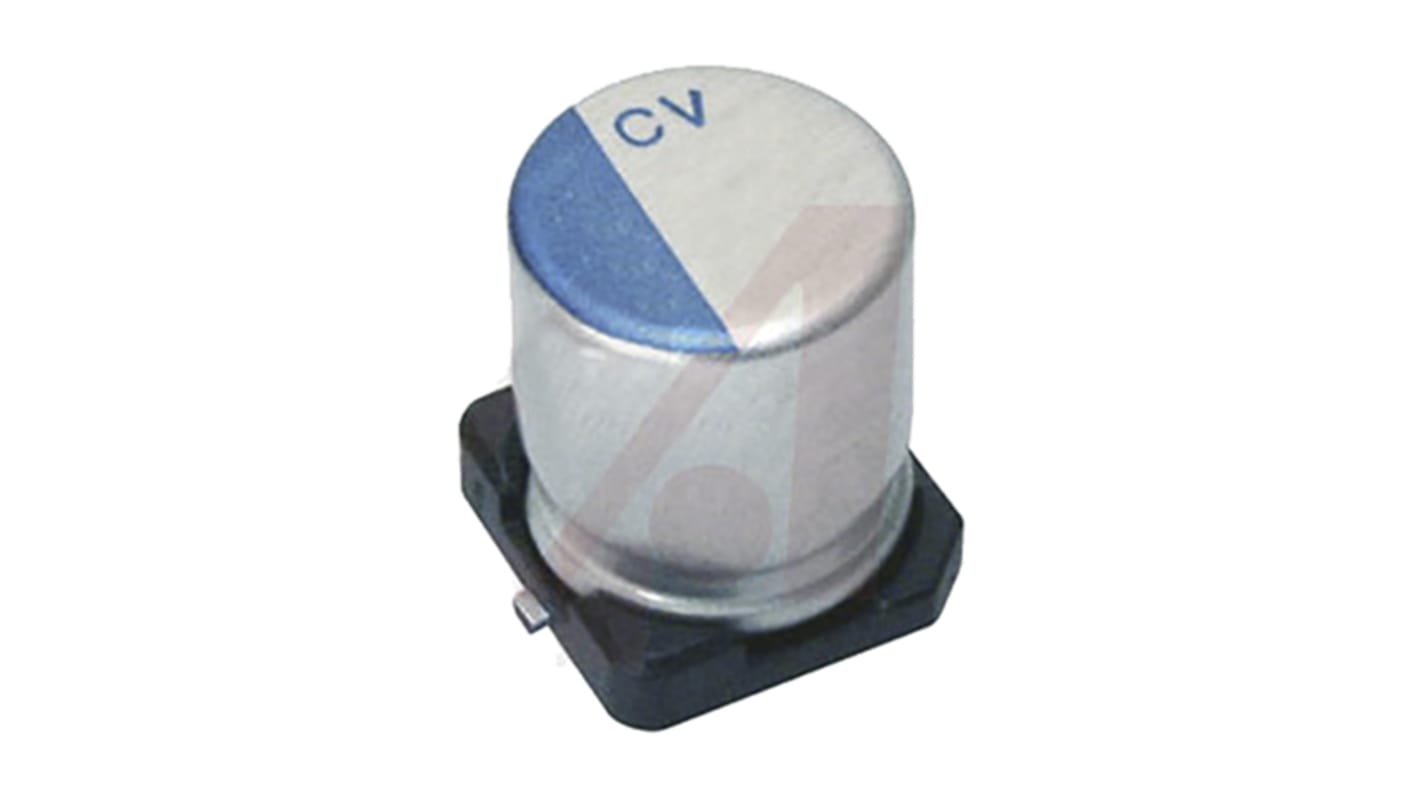

Nichicon 33μF Surface Mount Polymer Capacitor, 50V dc
- RS Stock No.:
- 851-7981
- Mfr. Part No.:
- PCV1H330MCL6GS
- Brand:
- Nichicon
Discontinued
- RS Stock No.:
- 851-7981
- Mfr. Part No.:
- PCV1H330MCL6GS
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Technology | Polymer, Electrolytic | |
| Capacitance | 33µF | |
| Voltage | 50V dc | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 36mΩ | |
| Lead Pitch | 3.2mm | |
| Tolerance | ±20% | |
| Height | 10mm | |
| Maximum Operating Temperature | +105°C | |
| Dimensions | 8 (Dia) x 10mm | |
| Series | CV | |
| Electrolyte Type | Solid | |
| Polarised | Polar | |
| Dissipation Factor | 12% | |
| Ripple Current | 1700mArms | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 8mm | |
| Leakage Current | 330 μA | |
| Lifetime | 3000h | |
| Select all | ||
|---|---|---|
Brand Nichicon | ||
Technology Polymer, Electrolytic | ||
Capacitance 33µF | ||
Voltage 50V dc | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 36mΩ | ||
Lead Pitch 3.2mm | ||
Tolerance ±20% | ||
Height 10mm | ||
Maximum Operating Temperature +105°C | ||
Dimensions 8 (Dia) x 10mm | ||
Series CV | ||
Electrolyte Type Solid | ||
Polarised Polar | ||
Dissipation Factor 12% | ||
Ripple Current 1700mArms | ||
Minimum Operating Temperature -55°C | ||
Diameter 8mm | ||
Leakage Current 330 μA | ||
Lifetime 3000h | ||
- COO (Country of Origin):
- JP
CV Series Solid Electrolytic SMT
Nichicon CV Series Conductive Polymer Aluminium Solid Electrolytic Capacitors offer high voltage and long life. Features of the CV Series Capacitors include capacitance range from 5.6 to 680μF, rated voltage range from 16V to 125V, low ESR, high ripple current, load life of 3000 hours, and a wide temperature range.
Low ESR
High Ripple current
Lead free reflow soldering
High reliability
High Ripple current
Lead free reflow soldering
High reliability
