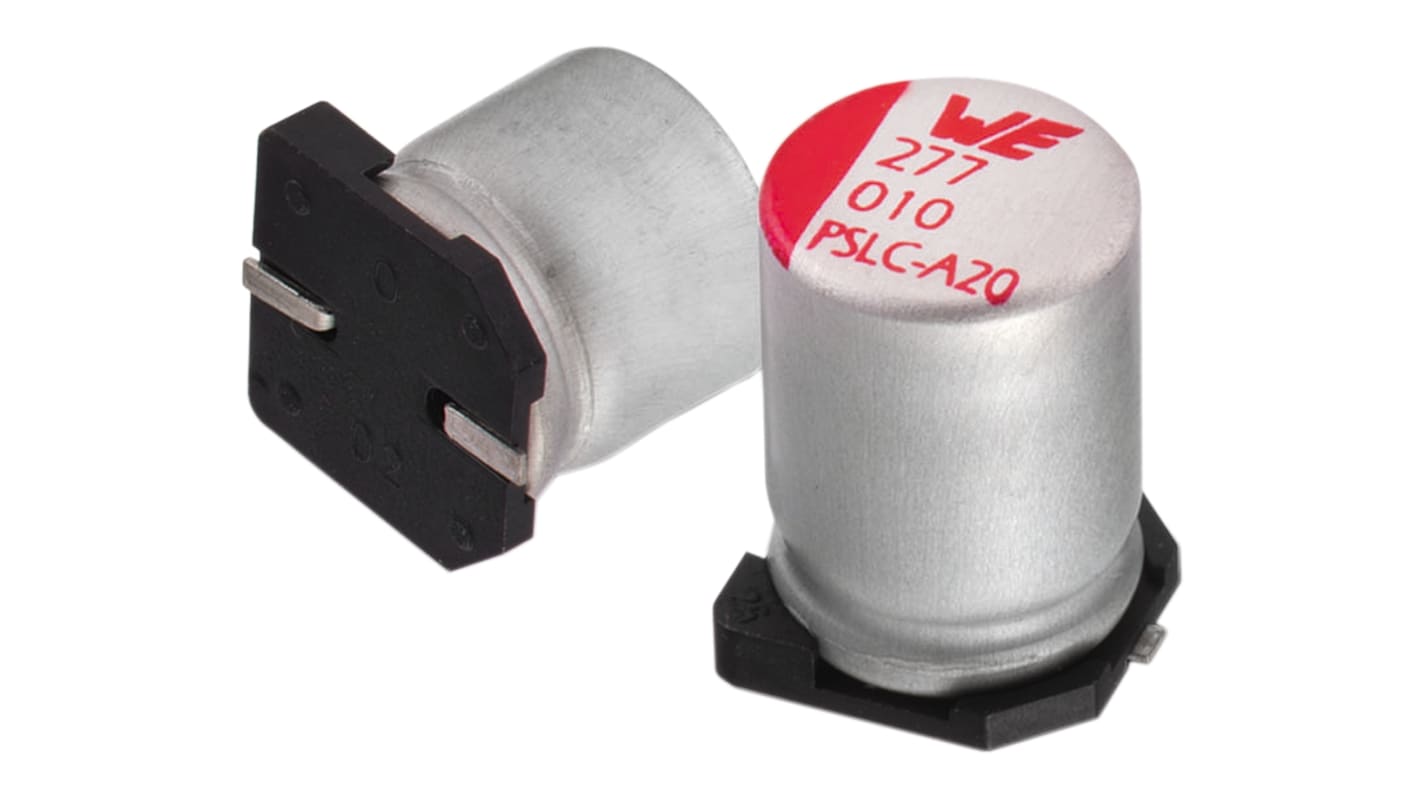

Wurth Elektronik 560μF Surface Mount Polymer Capacitor, 10V dc
- RS Stock No.:
- 838-7605
- Mfr. Part No.:
- 875115260005
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 pack of 2 units)*
£2.67
(exc. VAT)
£3.204
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,998 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £1.335 | £2.67 |
| 10 - 18 | £1.27 | £2.54 |
| 20 - 38 | £1.205 | £2.41 |
| 40 - 198 | £1.145 | £2.29 |
| 200 + | £0.975 | £1.95 |
*price indicative
- RS Stock No.:
- 838-7605
- Mfr. Part No.:
- 875115260005
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Technology | Polymer | |
| Capacitance | 560µF | |
| Dielectric Material Family | Aluminium | |
| Voltage | 10V dc | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 20mΩ | |
| Lead Pitch | 4.5mm | |
| Tolerance | ±20% | |
| Length | 8.7mm | |
| Maximum Operating Temperature | +105°C | |
| Height | 8.55mm | |
| Dimensions | 8.7 (Dia) x 8.7mm | |
| Series | WCAP-PSHP | |
| Polarised | Polar | |
| Lifetime | 2000h | |
| Minimum Operating Temperature | -55°C | |
| Dissipation Factor | 8% | |
| Ripple Current | 3.7A | |
| Leakage Current | 1120 μA | |
| Diameter | 8.7mm | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Technology Polymer | ||
Capacitance 560µF | ||
Dielectric Material Family Aluminium | ||
Voltage 10V dc | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 20mΩ | ||
Lead Pitch 4.5mm | ||
Tolerance ±20% | ||
Length 8.7mm | ||
Maximum Operating Temperature +105°C | ||
Height 8.55mm | ||
Dimensions 8.7 (Dia) x 8.7mm | ||
Series WCAP-PSHP | ||
Polarised Polar | ||
Lifetime 2000h | ||
Minimum Operating Temperature -55°C | ||
Dissipation Factor 8% | ||
Ripple Current 3.7A | ||
Leakage Current 1120 μA | ||
Diameter 8.7mm | ||
Wurth Elektronik SMD Aluminium Polymer Capacitor - WCAP-PSHP series
Aluminium Polymer capacitors contain solid conductive polymer instead of wet electrolytic, thus the benefits are:
High permissible ripple current due to lower ESR at high frequency range
Higher long term stability and expected life
No dry out phenomenon due to solid conductive polymer
High permissible ripple current due to lower ESR at high frequency range
Higher long term stability and expected life
No dry out phenomenon due to solid conductive polymer
WCAP-PSHP are miniaturised polymer electrolytic capacitor series
Operating temperature: -55°C to +105°C
Low ESR at high frequency range
High permissible ripple current
Load life of 2000h @ +105°C
Reflow soldering is recommended
Operating temperature: -55°C to +105°C
Low ESR at high frequency range
High permissible ripple current
Load life of 2000h @ +105°C
Reflow soldering is recommended
