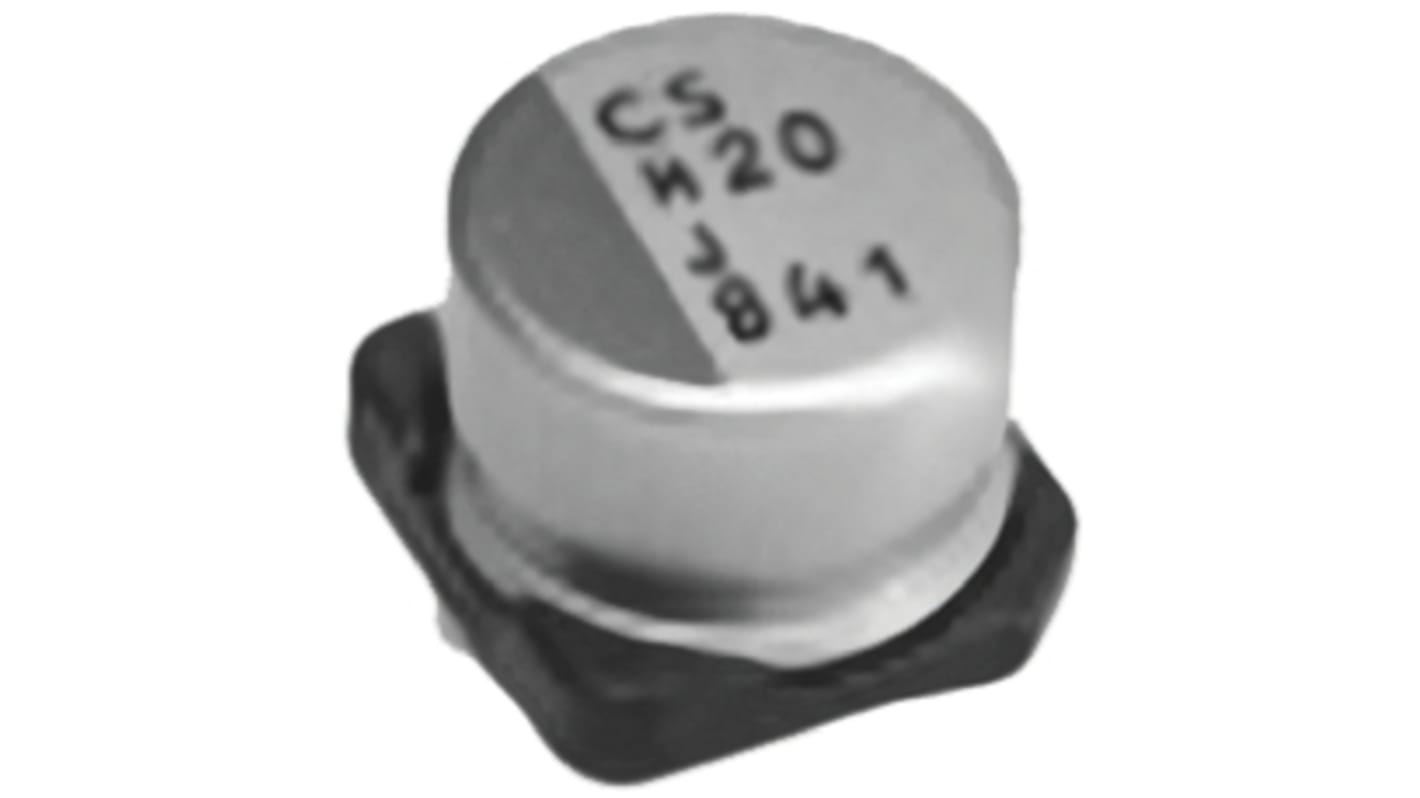

Nichicon 68μF Surface Mount Polymer Capacitor, 10V dc
- RS Stock No.:
- 714-8935
- Mfr. Part No.:
- PCS1A680MCL1GS
- Brand:
- Nichicon
Subtotal (1 pack of 5 units)*
£0.48
(exc. VAT)
£0.575
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.096 | £0.48 |
*price indicative
- RS Stock No.:
- 714-8935
- Mfr. Part No.:
- PCS1A680MCL1GS
- Brand:
- Nichicon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Technology | Polymer | |
| Capacitance | 68µF | |
| Dielectric Material Family | Aluminium | |
| Voltage | 10V dc | |
| Mounting Type | Surface Mount | |
| Equivalent Series Resistance | 30mΩ | |
| Lead Pitch | 1.6mm | |
| Tolerance | ±20% | |
| Length | 6mm | |
| Height | 6mm | |
| Maximum Operating Temperature | +105°C | |
| Dimensions | 5 (Dia) x 6mm | |
| Series | CS | |
| Electrolyte Type | Solid | |
| Lifetime | 5000h | |
| Leakage Current | 136 μA | |
| Diameter | 5mm | |
| Minimum Operating Temperature | -55°C | |
| Polarised | Polar | |
| Dissipation Factor | 0.12% | |
| Ripple Current | 2.1A | |
| Select all | ||
|---|---|---|
Brand Nichicon | ||
Technology Polymer | ||
Capacitance 68µF | ||
Dielectric Material Family Aluminium | ||
Voltage 10V dc | ||
Mounting Type Surface Mount | ||
Equivalent Series Resistance 30mΩ | ||
Lead Pitch 1.6mm | ||
Tolerance ±20% | ||
Length 6mm | ||
Height 6mm | ||
Maximum Operating Temperature +105°C | ||
Dimensions 5 (Dia) x 6mm | ||
Series CS | ||
Electrolyte Type Solid | ||
Lifetime 5000h | ||
Leakage Current 136 μA | ||
Diameter 5mm | ||
Minimum Operating Temperature -55°C | ||
Polarised Polar | ||
Dissipation Factor 0.12% | ||
Ripple Current 2.1A | ||
- COO (Country of Origin):
- CN
CS series
Guaranteed 5000 hours at 105°C
Surface mount type
Capacitance tolerance: ±20%
Operating temperature range -55 to +105°C
Surface mount type
Capacitance tolerance: ±20%
Operating temperature range -55 to +105°C
