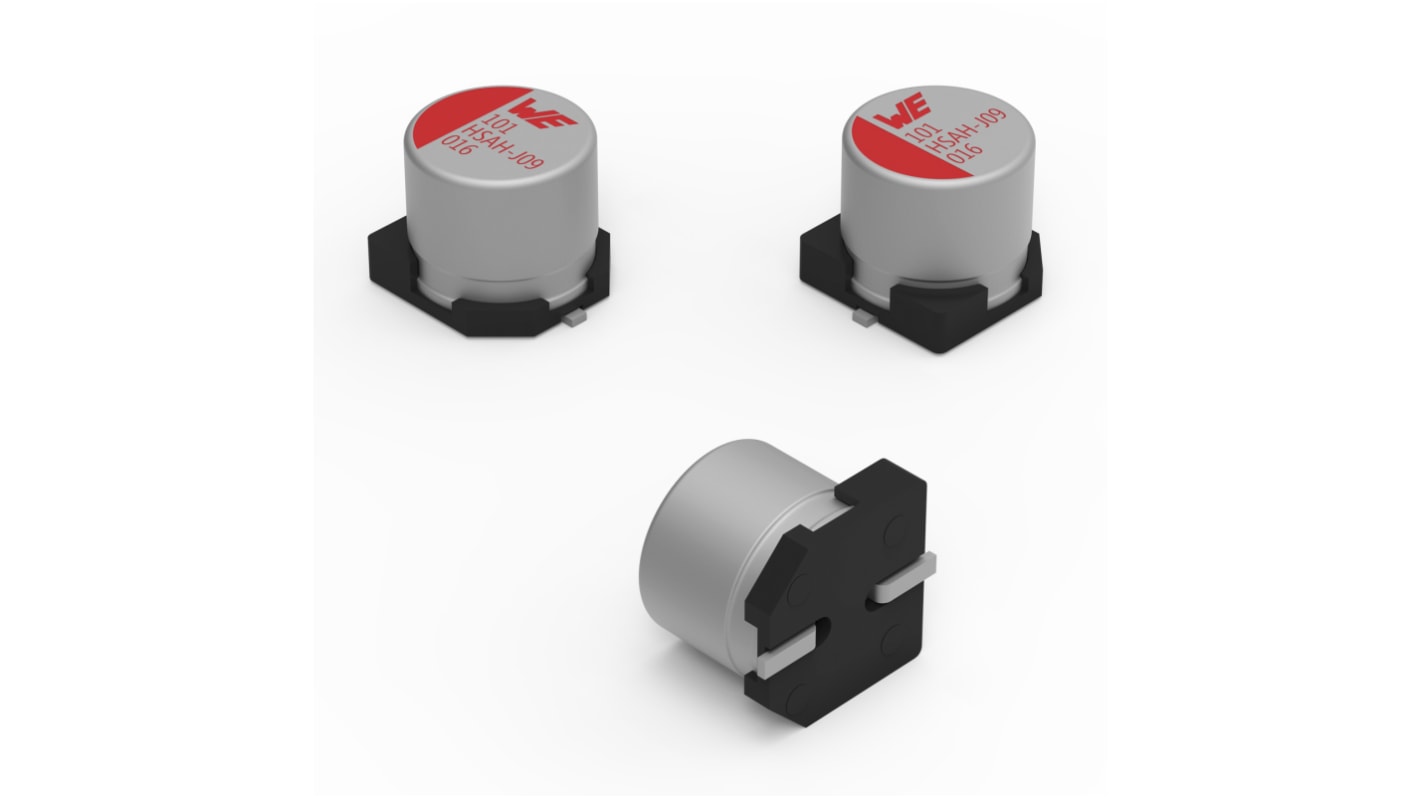

Wurth Elektronik 100 μF Surface Aluminium Polymer Capacitor, 50V dc
- RS Stock No.:
- 275-9494P
- Mfr. Part No.:
- 875585757007
- Brand:
- Wurth Elektronik
Bulk discount available
View bulk pricing optionsSubtotal 50 units (supplied on a continuous strip)*
£104.50
(exc. VAT)
£125.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 566 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 99 | £2.09 |
| 100 - 199 | £1.91 |
| 200 + | £1.65 |
*price indicative
- RS Stock No.:
- 275-9494P
- Mfr. Part No.:
- 875585757007
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Aluminium Polymer Capacitor | |
| Technology | Polymer, Hybrid | |
| Capacitance | 100μF | |
| Voltage | 50V dc | |
| Mount Type | Surface | |
| Package/Case | Plastic | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Dimensions | 10 x 10.5 mm | |
| Series | WCAP-HSAH | |
| Length | 10.5mm | |
| Height | 10.5mm | |
| Electrolyte Type | Hybrid | |
| Dissipation Factor | 10% | |
| Leakage Current | 50μA | |
| Ripple Current | 1600mA | |
| Minimum Operating Temperature | -55°C | |
| Automotive Standard | No | |
| Lifetime | 4000 h | |
| Diameter | 10mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Aluminium Polymer Capacitor | ||
Technology Polymer, Hybrid | ||
Capacitance 100μF | ||
Voltage 50V dc | ||
Mount Type Surface | ||
Package/Case Plastic | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Dimensions 10 x 10.5 mm | ||
Series WCAP-HSAH | ||
Length 10.5mm | ||
Height 10.5mm | ||
Electrolyte Type Hybrid | ||
Dissipation Factor 10% | ||
Leakage Current 50μA | ||
Ripple Current 1600mA | ||
Minimum Operating Temperature -55°C | ||
Automotive Standard No | ||
Lifetime 4000 h | ||
Diameter 10mm | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik hybrid capacitor has high ripple current characteristics and high stability over the temperature range.
It has application in industry and telecommunication
Low leakage current
