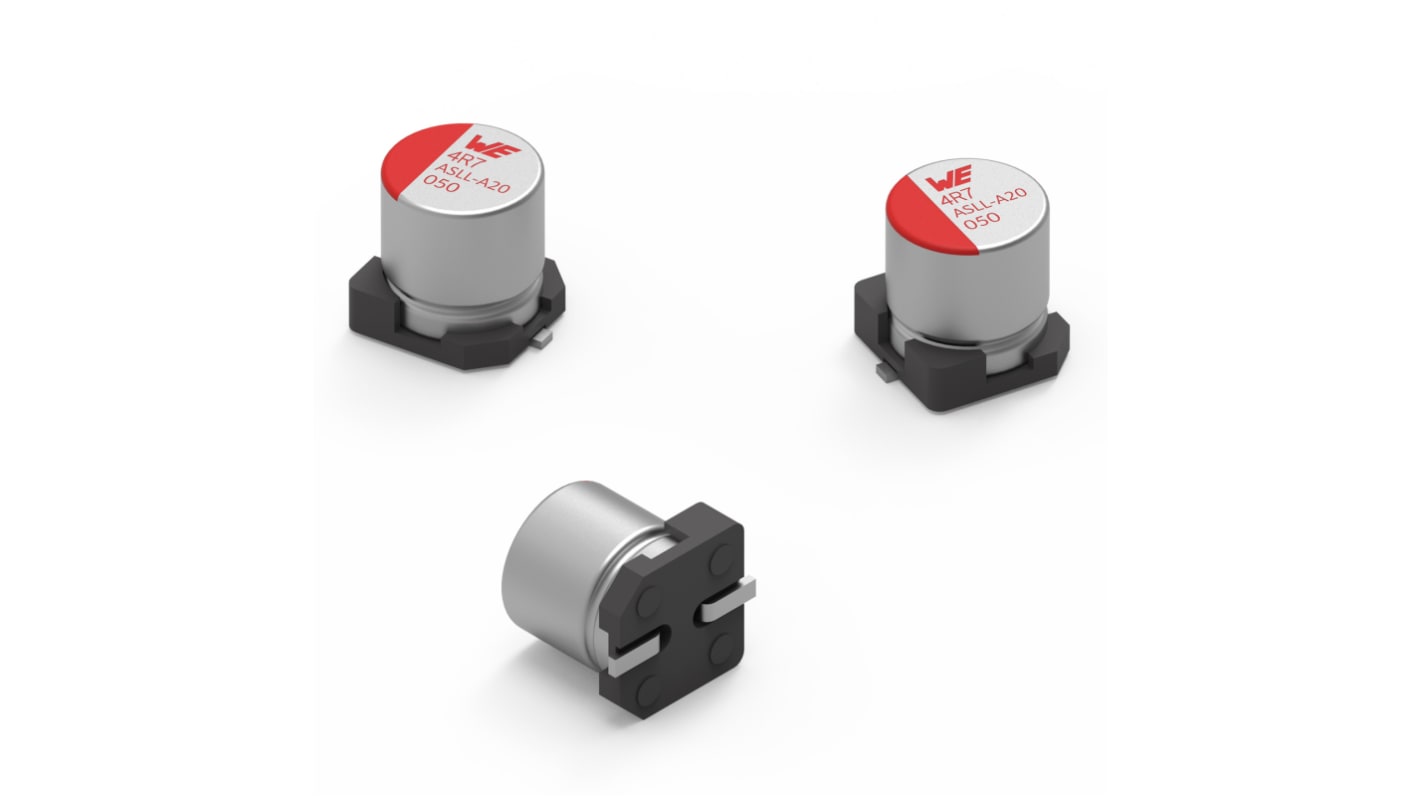

Wurth Elektronik 22 μF Surface Aluminium Polymer Capacitor, 63V dc
- RS Stock No.:
- 275-9239P
- Mfr. Part No.:
- 865060745003
- Brand:
- Wurth Elektronik
Stock information currently inaccessible
- RS Stock No.:
- 275-9239P
- Mfr. Part No.:
- 865060745003
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Aluminium Polymer Capacitor | |
| Technology | Aluminium Electrolytic | |
| Capacitance | 22μF | |
| Voltage | 63V dc | |
| Mount Type | Surface | |
| Package/Case | Can | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 105°C | |
| Dimensions | 6.3 x 7.7 mm | |
| Height | 7.7mm | |
| Length | 7.7mm | |
| Series | WCAP-ASLL | |
| Automotive Standard | No | |
| Leakage Current | 13.9μA | |
| Dissipation Factor | 10% | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 6.3mm | |
| Ripple Current | 120mA | |
| Lifetime | 2000 h | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Aluminium Polymer Capacitor | ||
Technology Aluminium Electrolytic | ||
Capacitance 22μF | ||
Voltage 63V dc | ||
Mount Type Surface | ||
Package/Case Can | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 105°C | ||
Dimensions 6.3 x 7.7 mm | ||
Height 7.7mm | ||
Length 7.7mm | ||
Series WCAP-ASLL | ||
Automotive Standard No | ||
Leakage Current 13.9μA | ||
Dissipation Factor 10% | ||
Minimum Operating Temperature -55°C | ||
Diameter 6.3mm | ||
Ripple Current 120mA | ||
Lifetime 2000 h | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik aluminium electrolytic capacitors has applications in filtering and smoothing. It is used as input and output capacitor for switched-mode power supply.
Low impedance and long life +105 degree Celsius
It comes with reflow soldering
