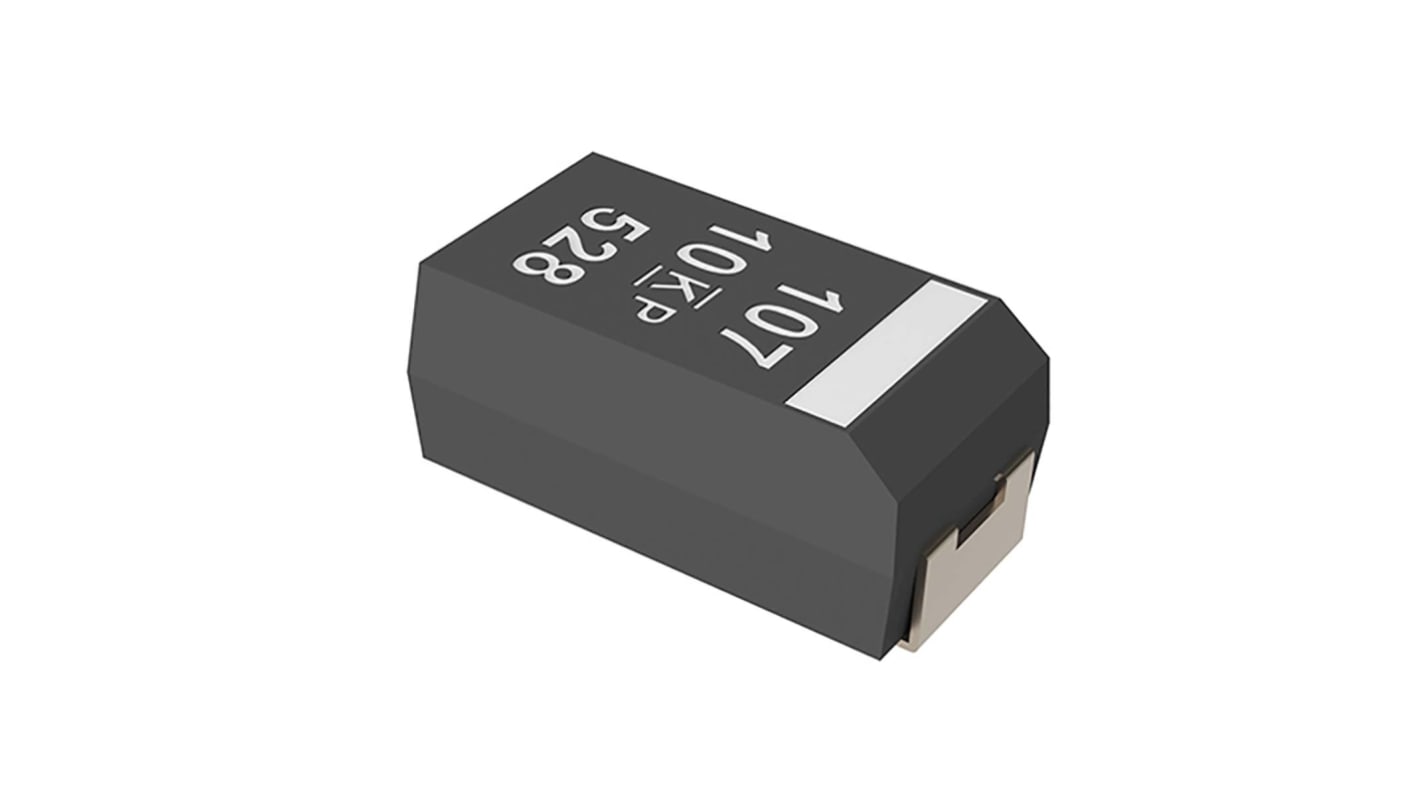

KEMET 150 μF Surface Mount Polymer Capacitor, 10V dc
- RS Stock No.:
- 204-9715
- Mfr. Part No.:
- T598V157M010ATE025
- Brand:
- KEMET
Subtotal (1 tape of 1000 units)*
£1,045.00
(exc. VAT)
£1,254.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tape* |
|---|---|---|
| 1000 + | £1.045 | £1,045.00 |
*price indicative
- RS Stock No.:
- 204-9715
- Mfr. Part No.:
- T598V157M010ATE025
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KEMET | |
| Product Type | Polymer Capacitor | |
| Technology | Hybrid | |
| Capacitance | 150μF | |
| Voltage | 10V dc | |
| Mount Type | Surface Mount | |
| Package/Case | 7343-20 | |
| Polarity | Polar | |
| Tolerance | ±10 % | |
| Maximum Operating Temperature | 155°C | |
| Dimensions | 4.3 x 7.3 x 1.9 mm | |
| Length | 7.3mm | |
| Depth | 4.3mm | |
| Height | 2.8mm | |
| Series | KO-CAP | |
| Electrolyte Type | Solid | |
| Dissipation Factor | 10% | |
| Ripple Current | 4000mA | |
| Automotive Standard | AEC-Q200 | |
| Minimum Operating Temperature | -55°C | |
| Lifetime | 2000 h | |
| Leakage Current | 150μA | |
| Select all | ||
|---|---|---|
Brand KEMET | ||
Product Type Polymer Capacitor | ||
Technology Hybrid | ||
Capacitance 150μF | ||
Voltage 10V dc | ||
Mount Type Surface Mount | ||
Package/Case 7343-20 | ||
Polarity Polar | ||
Tolerance ±10 % | ||
Maximum Operating Temperature 155°C | ||
Dimensions 4.3 x 7.3 x 1.9 mm | ||
Length 7.3mm | ||
Depth 4.3mm | ||
Height 2.8mm | ||
Series KO-CAP | ||
Electrolyte Type Solid | ||
Dissipation Factor 10% | ||
Ripple Current 4000mA | ||
Automotive Standard AEC-Q200 | ||
Minimum Operating Temperature -55°C | ||
Lifetime 2000 h | ||
Leakage Current 150μA | ||
- COO (Country of Origin):
- CN
The KEMET Organic Capacitor (KO-CAP) is a solid electrolytic capacitor with a conductive polymer cathode, capable of delivering very low ESR and an improved capacitance retention at high frequencies. It combines the low ESR of the multilayer ceramic, the high capacitance of aluminium electrolytic and the volumetric efficiency of tantalum into a single surface mount package. Enhancements to the design and selected material upgrades were introduced to deliver 1,000 hours at 85°C/85% RH rated voltage. It fully complies with the AEC-Q200 qualification testing with maximum operational temperature life up to 125ºC.
Ultra low ESR
ESR values down to 5mO
TS 16949 certified plants
Subject to PPAP/PSW and change control
Meets or exceeds EIA standard 535BAAC
Tape & Reel standard packaging per EIA 481
Halogen-free epoxy and RoHS compliant
