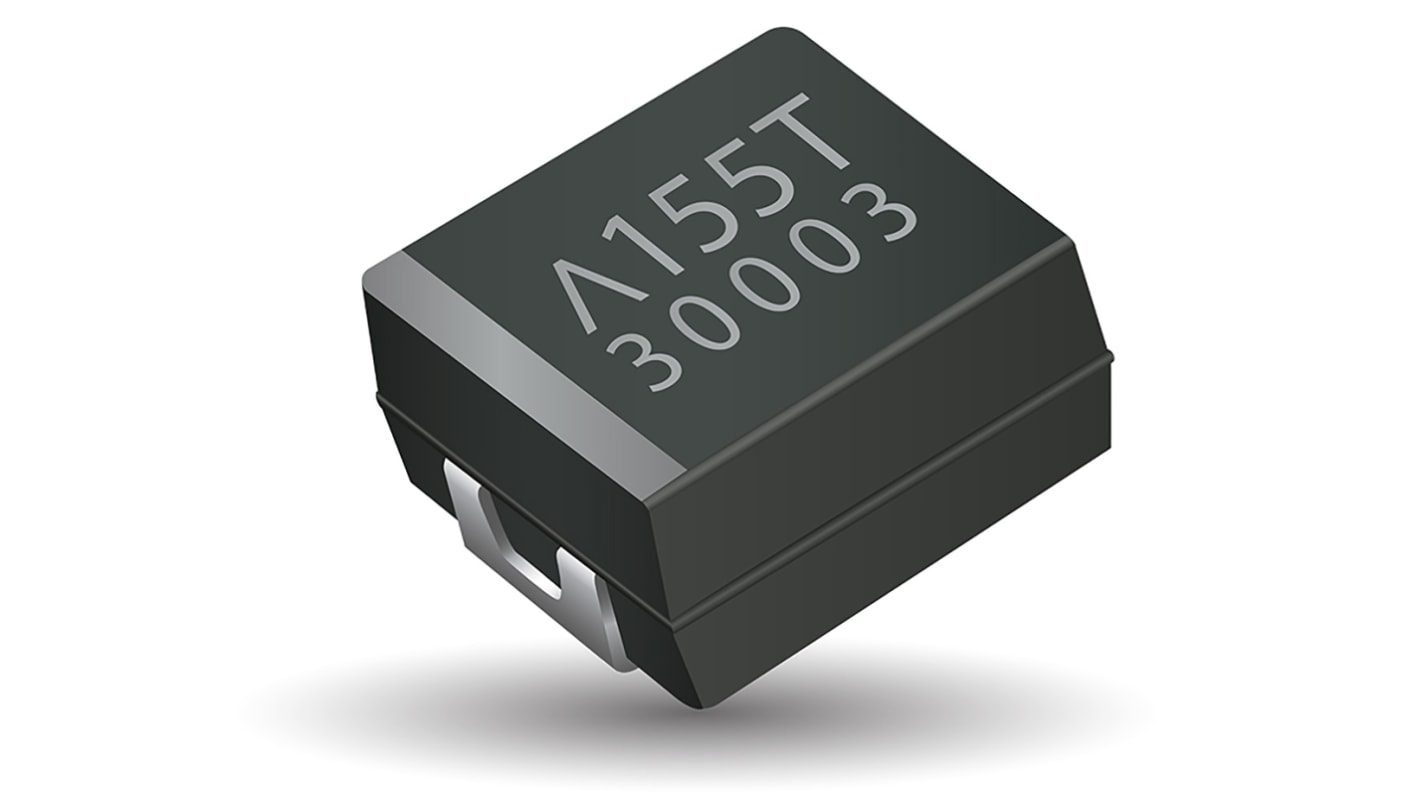

KYOCERA AVX 15μF Surface Mount Polymer Capacitor, 25V dc

View all Polymer Capacitors

Subtotal (1 pack of 2 units)*

£1.56

(exc. VAT)

£1.88

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 264 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 +£0.78£1.56

*price indicative

Packaging Options:
RS Stock No.:
186-4735
Mfr. Part No.:
TCQD156M025R0070E
Brand:
KYOCERA AVX
Find similar products by selecting one or more attributes.
Select all

Brand

KYOCERA AVX

Technology

Polymer

Capacitance

15µF

Dielectric Material Family

Tantalum

Voltage

25V dc

Mounting Type

Surface Mount

Package/Case

2917 (7343-31)

Equivalent Series Resistance

70mΩ

Lead Pitch

4.4mm

Tolerance

±20%

Length

7.3mm

Depth

4.3mm

Height

2.9mm

Maximum Operating Temperature

+125°C

Dimensions

7.3 x 4.3 x 2.9mm

Series

TCQ

Electrolyte Type

Solid

Leakage Current

37.5 μA

Polarised

Polar

Dissipation Factor

6%

Minimum Operating Temperature

-55°C

Automotive Standard

AEC-Q200

COO (Country of Origin):
CZ
AVX’s TCQ low ESR conductive polymer capacitors series with components developed to deliver high endurance & performance stability to address the reliability requirements of automotive applications.

Conductive polymer electrode
Benign failure mode under recommended use conditions
Robust design for automotive applications

Humidity 85°C/85%RH, Vr, 1000 hours
Basic reliability 1%/1000hrs@85°C Vr with 60% confidence level -55 to +125°C operation temperature
Full voltage range: 4-50V
DCL 0.1 CV
3x reflow 260°C compatible
Applications
DC/DC converters
Telecommunications (Coupling/Decoupling)
Industrial & Special
Automotive (Body Electronics, Cabin Controls, Infotainment, Comfort, After Market, Etc)
