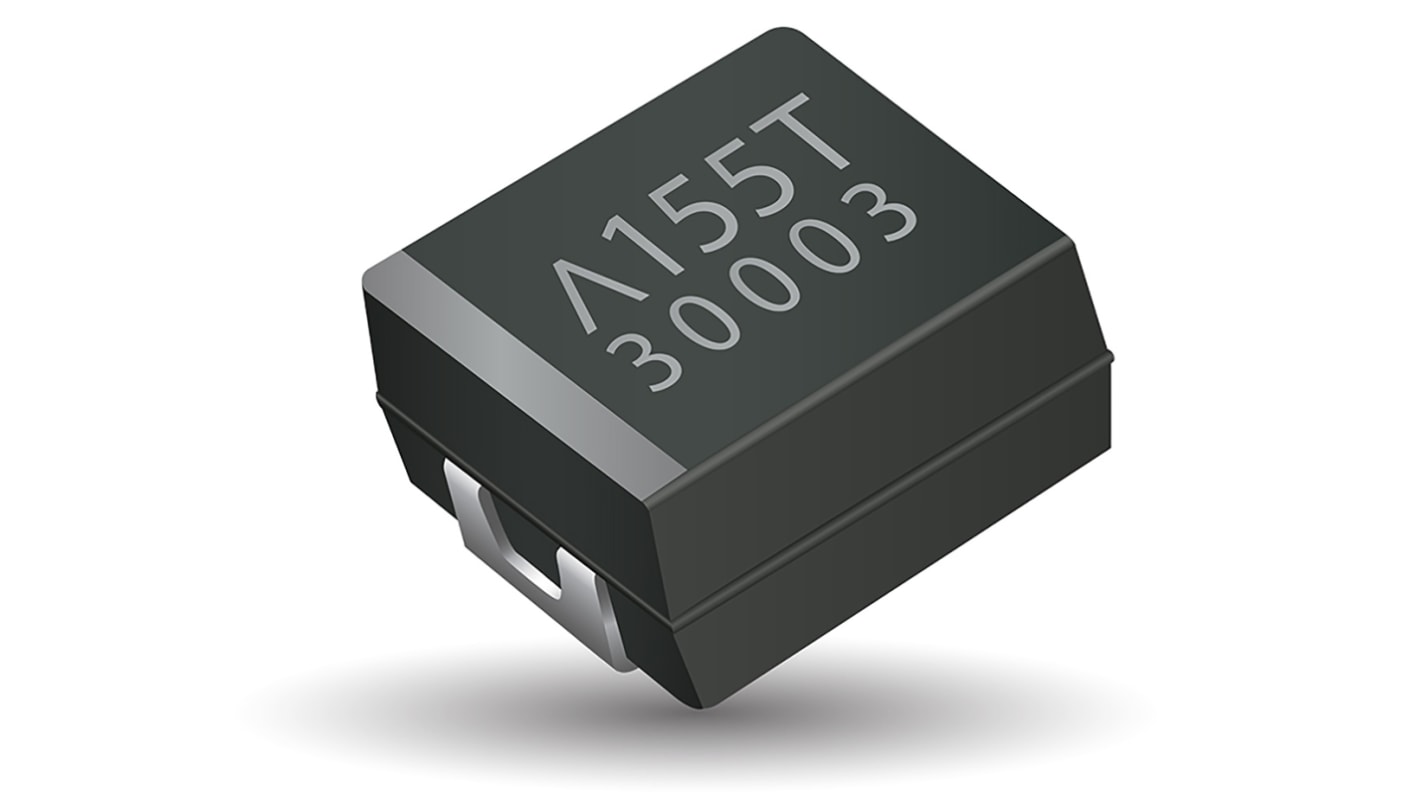

KYOCERA AVX 47μF Surface Mount Polymer Capacitor, 35V dc
- RS Stock No.:
- 186-4717
- Mfr. Part No.:
- TCQU476M035R0070E
- Brand:
- KYOCERA AVX
Available to back order for despatch 25/09/2024
Added
Price Each (On a Reel of 400)
£2.323
(exc. VAT)
£2.788
(inc. VAT)
| Units | Per unit | Per Reel* |
| 400 + | £2.323 | £929.20 |
| *price indicative | ||
- RS Stock No.:
- 186-4717
- Mfr. Part No.:
- TCQU476M035R0070E
- Brand:
- KYOCERA AVX
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CZ
Product Details
AVX’s TCQ low ESR conductive polymer capacitors series with components developed to deliver high endurance & performance stability to address the reliability requirements of automotive applications.
Conductive polymer electrode
Benign failure mode under recommended use conditions
Robust design for automotive applications
Humidity 85°C/85%RH, Vr, 1000 hours
Basic reliability 1%/1000hrs@85°C Vr with 60% confidence level -55 to +125°C operation temperature
Full voltage range: 4-50V
DCL 0.1 CV
3x reflow 260°C compatible
Applications
DC/DC converters
Telecommunications (Coupling/Decoupling)
Industrial & Special
Automotive (Body Electronics, Cabin Controls, Infotainment, Comfort, After Market, Etc)
Benign failure mode under recommended use conditions
Robust design for automotive applications
Humidity 85°C/85%RH, Vr, 1000 hours
Basic reliability 1%/1000hrs@85°C Vr with 60% confidence level -55 to +125°C operation temperature
Full voltage range: 4-50V
DCL 0.1 CV
3x reflow 260°C compatible
Applications
DC/DC converters
Telecommunications (Coupling/Decoupling)
Industrial & Special
Automotive (Body Electronics, Cabin Controls, Infotainment, Comfort, After Market, Etc)
Specifications
Attribute | Value |
|---|---|
| Technology | Polymer |
| Capacitance | 47µF |
| Dielectric Material Family | Tantalum |
| Voltage | 35V dc |
| Mounting Type | Surface Mount |
| Package/Case | 2924 (7361-43) |
| Equivalent Series Resistance | 70mΩ |
| Lead Pitch | 4.4mm |
| Tolerance | ±20% |
| Length | 7.3mm |
| Depth | 6.1mm |
| Height | 4.1mm |
| Maximum Operating Temperature | +125°C |
| Dimensions | 7.3 x 6.1 x 4.1mm |
| Series | TCQ |
| Electrolyte Type | Solid |
| Polarised | Polar |
| Dissipation Factor | 12% |
| Minimum Operating Temperature | -55°C |
| Leakage Current | 164.5 μA |
| Automotive Standard | AEC-Q200 |
