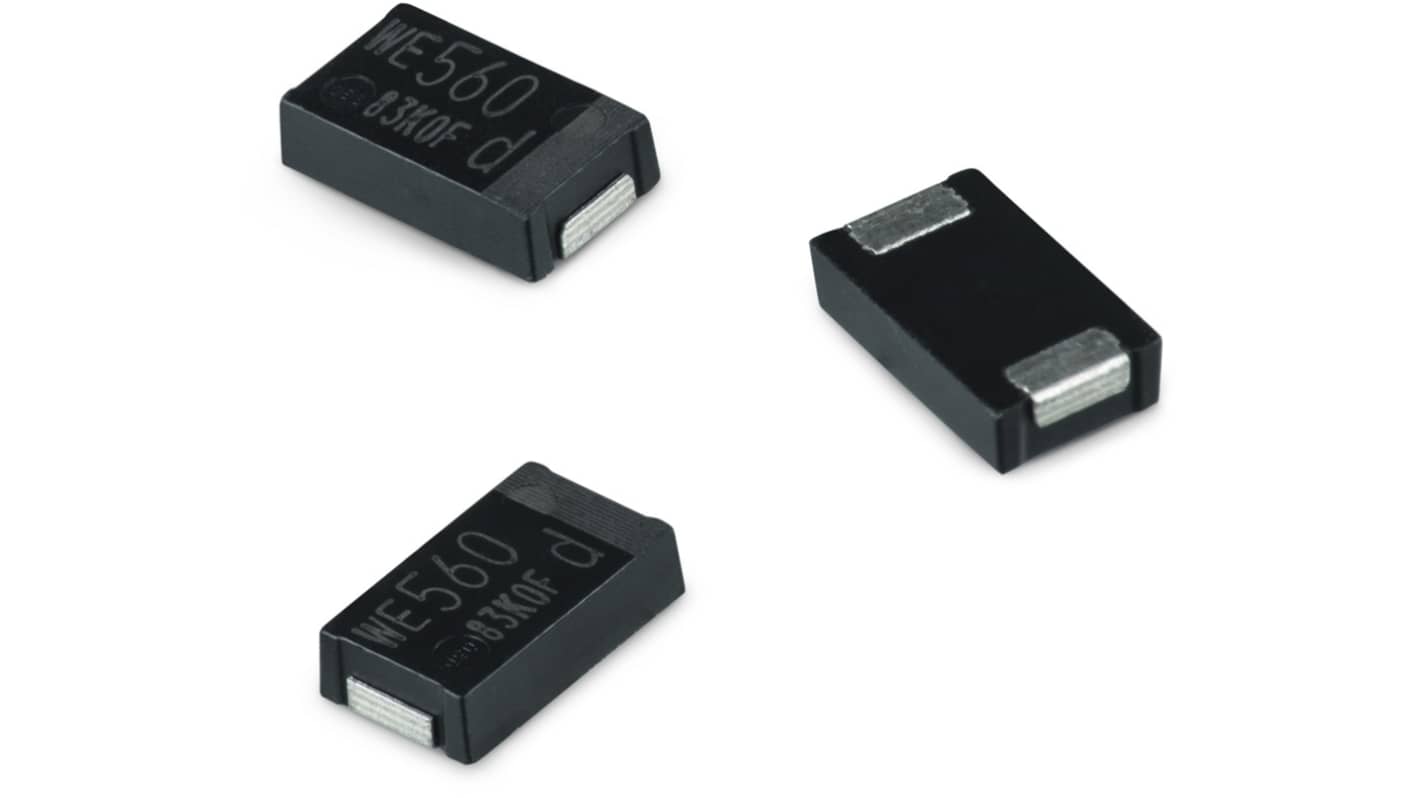

Wurth Elektronik 330μF Surface Mount Polymer Capacitor, 2V dc

View all Polymer Capacitors

Subtotal (1 reel of 3500 units)*

£3,710.00

(exc. VAT)

£4,445.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 07 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3500 +£1.06£3,710.00

*price indicative

Development Kit Box with a flash stating "Win"
Win A Würth Elektronik Lighting Development Kit
Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.
Claim my Lighting Kit
RS Stock No.:
185-5167
Mfr. Part No.:
875046219001
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Technology

Polymer

Capacitance

330µF

Dielectric Material Family

Aluminium

Voltage

2V dc

Mounting Type

Surface Mount

Equivalent Series Resistance

3mΩ

Tolerance

±20%

Length

7.3mm

Depth

4.3mm

Height

1.9mm

Maximum Operating Temperature

+105°C

Dimensions

7.3 x 4.3 x 1.9mm

Series

WCAP-PHSE

Dissipation Factor

6%

Minimum Operating Temperature

-55°C

Polarised

Polar

Leakage Current

66 μA

Lifetime

2000h

Ripple Current

10.2A

COO (Country of Origin):
JP
Super low ESR product series

High ripple current capability

Low profile

Mounting style: H-Chip SMT

Capacitance range: 330 μF ‒ 560 μF

Capacitance tolerance: ±20 %

Voltage range (UR): 2 ‒ 2.5 V(DC)

Operating temperature: -55 °C up to +105 °C

Endurance: 2000h @ +105 °C

Dimensions (LxWxH) in mm: 7.3 x 4.3 x 1.9

Recommended soldering: Reflow soldering

Applications

Noise suppression

Input and output capacitor for DC/DC converter

USB Charger, Smart Meter, Power Bank

Communication infrastructure, Server, Mainboards
