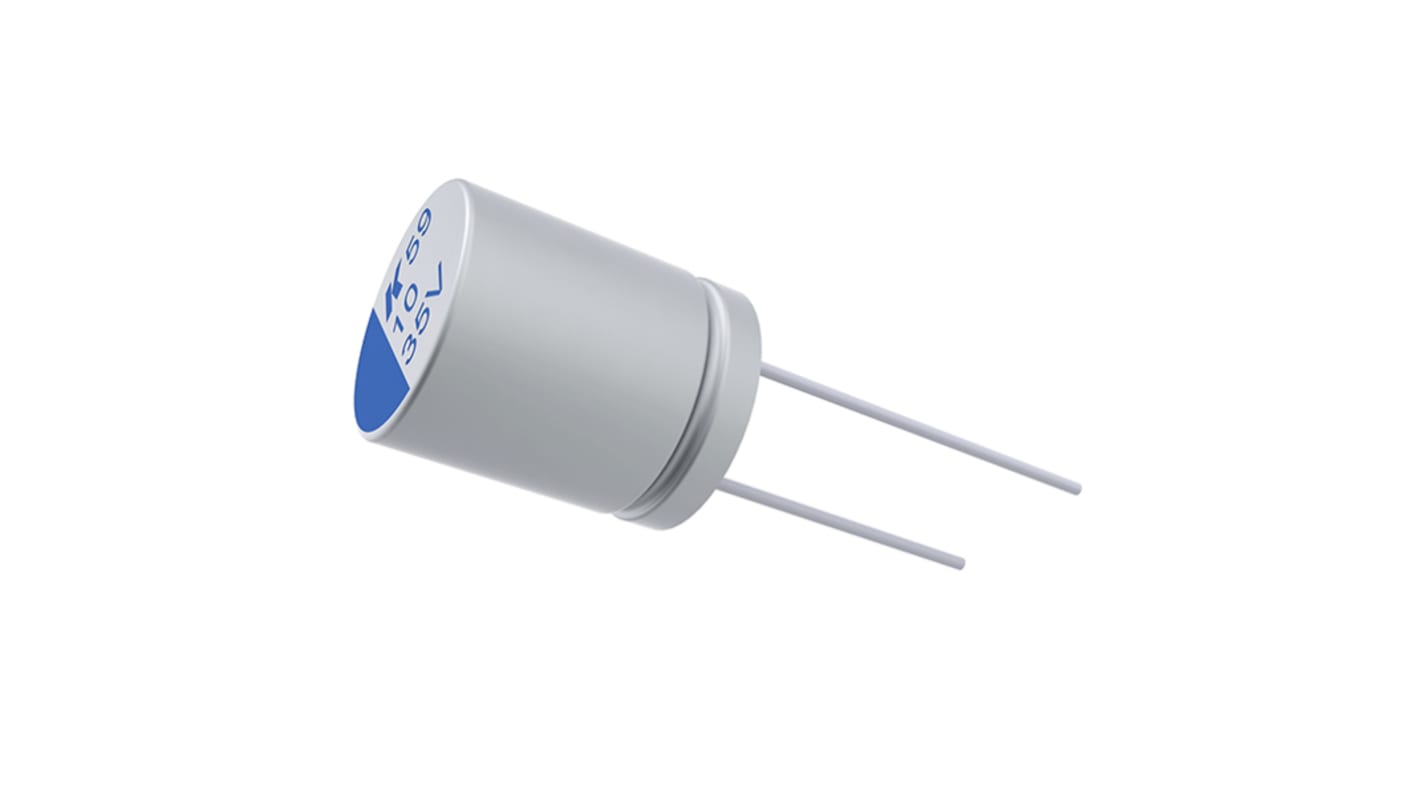

KEMET 100μF Through Hole Polymer Capacitor, 35V dc
- RS Stock No.:
- 173-9459
- Mfr. Part No.:
- A759KS107M1VAAE031
- Brand:
- KEMET
Bulk discount available
Subtotal (1 pack of 10 units)*
£6.74
(exc. VAT)
£8.09
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 10 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 40 | £0.674 | £6.74 |
50 - 90 | £0.64 | £6.40 |
100 - 240 | £0.593 | £5.93 |
250 - 490 | £0.552 | £5.52 |
500 + | £0.499 | £4.99 |
*price indicative
- RS Stock No.:
- 173-9459
- Mfr. Part No.:
- A759KS107M1VAAE031
- Brand:
- KEMET
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KEMET | |
Technology | Electrolytic | |
Capacitance | 100µF | |
Dielectric Material Family | Aluminium | |
Voltage | 35V dc | |
Mounting Type | Through Hole | |
Equivalent Series Resistance | 31mΩ | |
Lead Pitch | 3.5mm | |
Tolerance | ±20% | |
Maximum Operating Temperature | +125°C | |
Height | 12mm | |
Dimensions | 8 (Dia) x 12mm | |
Series | A759 | |
Electrolyte Type | Solid | |
Polarised | Polar | |
Dissipation Factor | 12% | |
Lifetime | 2000h | |
Diameter | 8mm | |
Ripple Current | 4.29A | |
Minimum Operating Temperature | -55°C | |
Leakage Current | 525 μA | |
Select all | ||
---|---|---|
Brand KEMET | ||
Technology Electrolytic | ||
Capacitance 100µF | ||
Dielectric Material Family Aluminium | ||
Voltage 35V dc | ||
Mounting Type Through Hole | ||
Equivalent Series Resistance 31mΩ | ||
Lead Pitch 3.5mm | ||
Tolerance ±20% | ||
Maximum Operating Temperature +125°C | ||
Height 12mm | ||
Dimensions 8 (Dia) x 12mm | ||
Series A759 | ||
Electrolyte Type Solid | ||
Polarised Polar | ||
Dissipation Factor 12% | ||
Lifetime 2000h | ||
Diameter 8mm | ||
Ripple Current 4.29A | ||
Minimum Operating Temperature -55°C | ||
Leakage Current 525 μA | ||
- COO (Country of Origin):
- CN
KEMETs A759 Single-Ended Conductive Polymer AluminumSolid Electrolytic Capacitors offer longer life and greater stability across a wide range of temperatures. The A759 highly conductive solid polymer electrolyte eliminates the risk of explosion from drying out and due to its low ESR properties, is able to withstand higher ripple currents duringnormal operation. The A759 is ideally suited for industrial and commercial applications. Typical applications include long life LED drivers, professional power amplifiers and industrial power supplies).
Through-hole form factor
High Voltage
Low impedance
High ripple current
125°C/2,000 hours
High Voltage
Low impedance
High ripple current
125°C/2,000 hours
