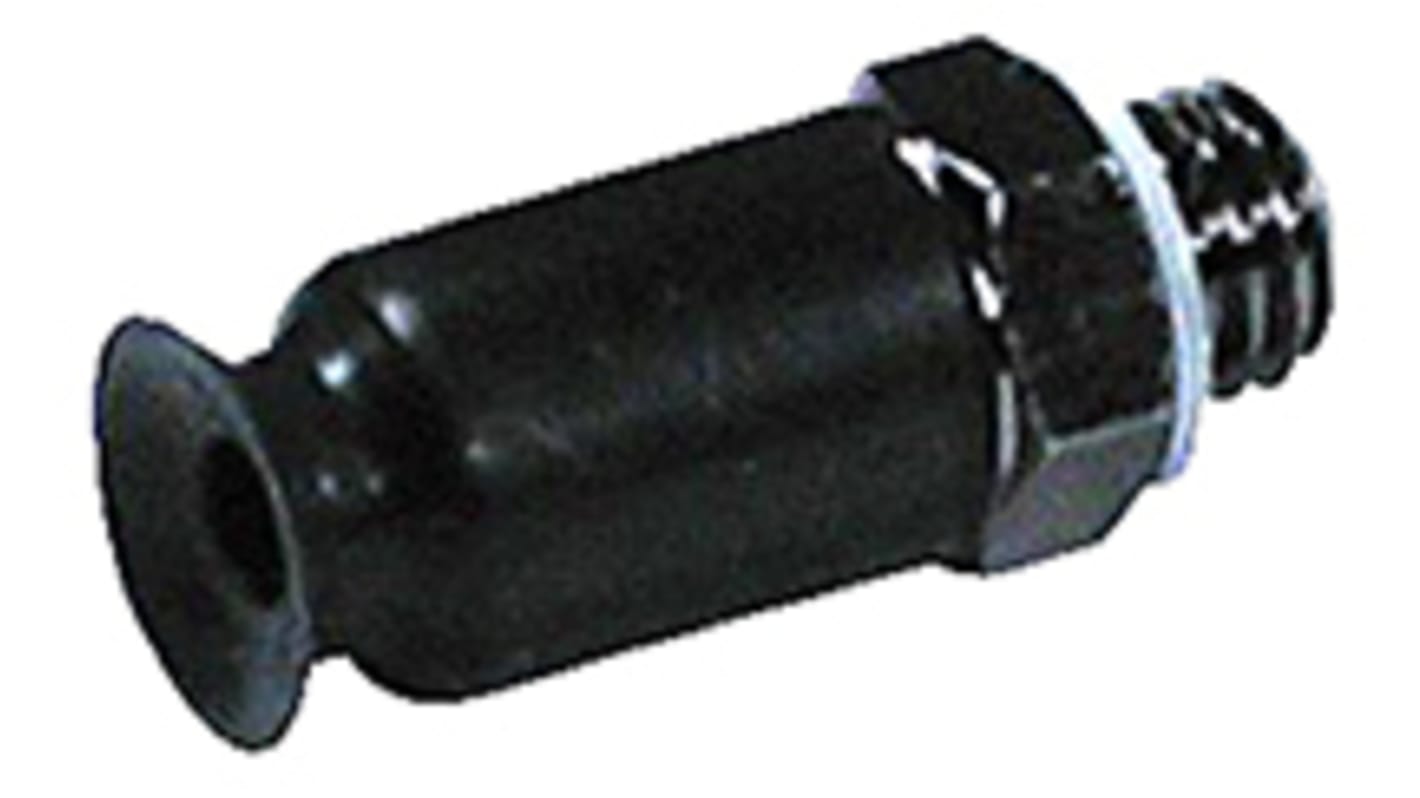

SMC 4mm Flat Silicon Rubber Vaccum Pad ZPT04US-A5, M5 x 0.8
- RS Stock No.:
- 827-8753
- Mfr. Part No.:
- ZPT04US-A5
- Brand:
- SMC
Save 10% when you buy 25 units
Subtotal (1 unit)*
£6.39
(exc. VAT)
£7.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 36 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £6.39 |
5 - 9 | £6.07 |
10 - 24 | £5.87 |
25 + | £5.74 |
*price indicative
- RS Stock No.:
- 827-8753
- Mfr. Part No.:
- ZPT04US-A5
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Pad Diameter | 4mm | |
Pad Type | Flat | |
Pad Material | Silicon Rubber | |
Connection Type | Male Thread | |
Manufacturer Series | ZPT | |
Vacuum Entry Direction | Vertical | |
Threaded Connection Size | M5 x 0.8 | |
Select all | ||
---|---|---|
Brand SMC | ||
Pad Diameter 4mm | ||
Pad Type Flat | ||
Pad Material Silicon Rubber | ||
Connection Type Male Thread | ||
Manufacturer Series ZPT | ||
Vacuum Entry Direction Vertical | ||
Threaded Connection Size M5 x 0.8 | ||
- COO (Country of Origin):
- JP
SMC Flat and Bellow Suction Cups
These suction cups offer you options to meet all your handling and transfer needs. They come in a variety of shapes and sizes suitable for a variety of lifting applications. All stems are non-rotating and come with rubber flat pad - different pad sizes and styles available
3 Stem types:
-Standard Stem
-Stem with buffer spring to allow objects of differing height to be picked up
-Stem with female thread, top entry, suitable for use with hollow-rod cylinders
All stems with 80mm diameter pads have push-in fittings included (excluding female thread top entry types)
2 Pad materials:
- NBR Rubber
- Silicone (for non-marking applications)
3 Pad styles:
- Flat
- Deep (for curved objects)
- Bellows (absorbs misalignment
-Standard Stem
-Stem with buffer spring to allow objects of differing height to be picked up
-Stem with female thread, top entry, suitable for use with hollow-rod cylinders
All stems with 80mm diameter pads have push-in fittings included (excluding female thread top entry types)
2 Pad materials:
- NBR Rubber
- Silicone (for non-marking applications)
3 Pad styles:
- Flat
- Deep (for curved objects)
- Bellows (absorbs misalignment
What are the benefits of flat bellow Suction cups?
Suction cups/vacuum pads are the components used to lift and hold a workpiece in a pick and place application., the cups grip the workpiece fast and precisely These suction cups are ideal for flat and uneven surfaces.
Note
Lifting Capacity quoted theoretically at 0.65 bar
