Festo 40 x 85mm Bellows NBR Vacuum Cup OGVM-40X85-AV-N-G14F
- RS Stock No.:
- 204-0091
- Mfr. Part No.:
- OGVM-40X85-AV-N-G14F
- Brand:
- Festo
Subtotal (1 unit)*
£48.66
(exc. VAT)
£58.39
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 6 unit(s) shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £48.66 |
*price indicative
- RS Stock No.:
- 204-0091
- Mfr. Part No.:
- OGVM-40X85-AV-N-G14F
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Pad Diameter | 40 x 85mm | |
Pad Type | Bellows | |
Pad Material | NBR | |
Manufacturer Series | OGVM | |
Holding Force | 126N | |
Select all | ||
---|---|---|
Brand Festo | ||
Pad Diameter 40 x 85mm | ||
Pad Type Bellows | ||
Pad Material NBR | ||
Manufacturer Series OGVM | ||
Holding Force 126N | ||
- COO (Country of Origin):
- DE

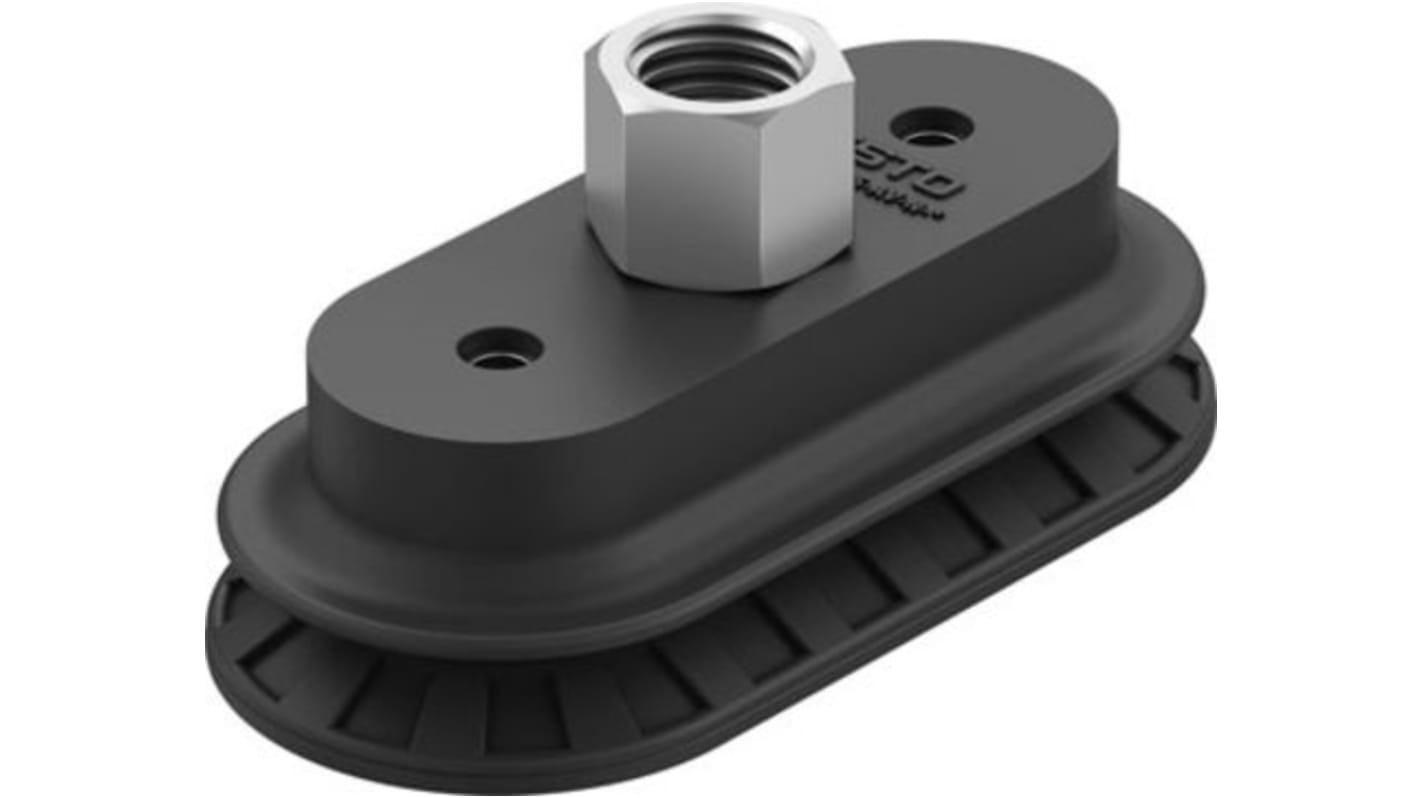

Festo Bellows Suction Cup, 40 (W) x 85mm (L) Pad, 126N Holding Force - OGVM-40X85-AV-N-G14F
Connect this suction cup from Festo to a vacuum device to pick up and move items in your industrial system. The pad is made from robust NBR (nitrile butadiene rubber) material, which is resistant to wear and tear so you can rely on it for long-term use. Thanks to its oval bellows design, the suction cup works effectively on curved surfaces. You can use it to lift non-modular objects like pipes and moulded plastic parts.
• Strong holding force of 126N (Newtons) ensures a reliable grip
• Can be assembled in any position for design flexibility
• Lightweight at 57g for easy handling
• Wrought aluminium alloy threaded plug is corrosion-resistant for long service life
• Can be assembled in any position for design flexibility
• Lightweight at 57g for easy handling
• Wrought aluminium alloy threaded plug is corrosion-resistant for long service life
Applications
• Packaging industry
• Logistics
• Storage facilities
• Logistics
• Storage facilities
How do I connect this suction cup to a vacuum device?
This suction cup comes with a mounting hole at its top. Simply insert a vacuum device with a G1/4 connector through the hole to connect it.
Can this unit withstand harsh temperatures?
Yes, it can. Thanks to its wide operating temperature range between -20°C and +80°C, this unit can withstand extremely hot and cold temperatures.
