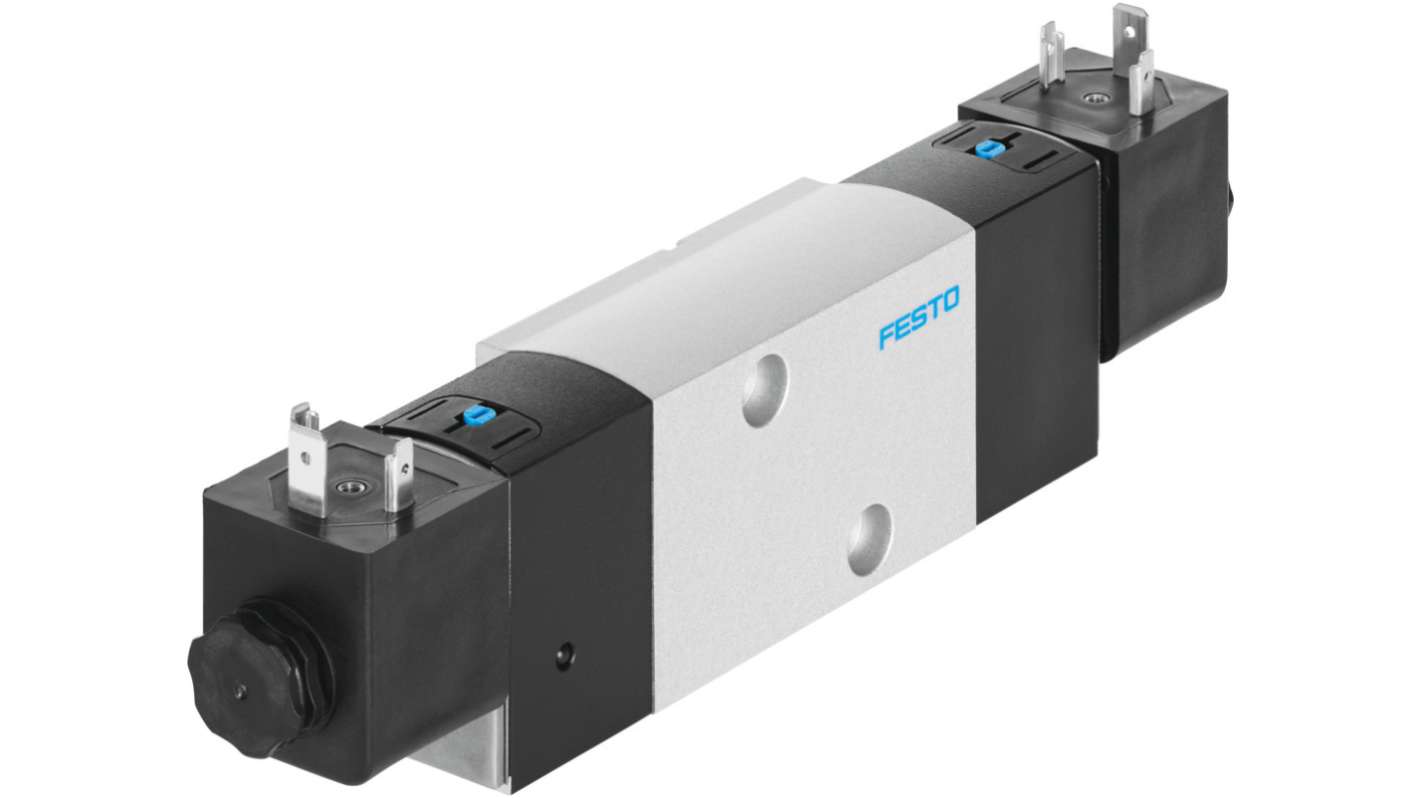

Festo 5/2 Double Solenoid Pneumatic Solenoid Valve - Electrical G 1/4 VSNC Series 24V dc
- RS Stock No.:
- 289-0734
- Mfr. Part No.:
- VSNC-FT-B52-D-G14-FN-1A1
- Brand:
- Festo
Subtotal (1 unit)*
£152.75
(exc. VAT)
£183.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £152.75 |
*price indicative
- RS Stock No.:
- 289-0734
- Mfr. Part No.:
- VSNC-FT-B52-D-G14-FN-1A1
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 5/2 Double Solenoid | |
Connection Port Thread | G 1/4 | |
Actuation Type | Electrical | |
Manufacturer Series | VSNC | |
Mounting Style | Through Hole | |
Solenoid Voltage | 24V dc | |
Solenoid Fitted | Yes | |
Number of Ports | 5/2 | |
Body Material | Wrought Aluminium Alloy | |
Minimum Operating Pressure | 1.5bar | |
Number of Positions | 2 | |
Thread Size | 1/4in | |
Maximum Operating Pressure | 8 bar | |
Configuration | 5/2 | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -20°C | |
Thread Standard | G | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 5/2 Double Solenoid | ||
Connection Port Thread G 1/4 | ||
Actuation Type Electrical | ||
Manufacturer Series VSNC | ||
Mounting Style Through Hole | ||
Solenoid Voltage 24V dc | ||
Solenoid Fitted Yes | ||
Number of Ports 5/2 | ||
Body Material Wrought Aluminium Alloy | ||
Minimum Operating Pressure 1.5bar | ||
Number of Positions 2 | ||
Thread Size 1/4in | ||
Maximum Operating Pressure 8 bar | ||
Configuration 5/2 | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -20°C | ||
Thread Standard G | ||
- COO (Country of Origin):
- CN
Festo VSNC Series Pneumatic Solenoid Valves, 24V DC Solenoid Voltage, 1/4in Thread size - VSNC-FT-B52-D-G14-FN-1A1, Numeric Part Number: 577298
This pneumatic solenoid valve is a part of the Festo VSNC series, designed to provide reliable electric actuation for fluid control. With a compact construction width of 32mm, it supports a wide range of applications through its 5/2 double solenoid configuration. It operates efficiently in diverse conditions with an ambient temperature range of -20°C to +60°C.
Features & Benefits
• Electric actuation delivers precise control for automation
• Soft sealing principle ensures leak-free performance
• IP65 and IP67 ratings provide robust environmental protection
• Manual override option allows for easy emergency operation
• Soft sealing principle ensures leak-free performance
• IP65 and IP67 ratings provide robust environmental protection
• Manual override option allows for easy emergency operation
Applications
• Integrated into automation systems for efficient air control
• Utilised in machinery and equipment for enhanced operability
• Implemented in pneumatic systems requiring precise control
• Suitable for use in environments with moderate corrosion stress
• Utilised in machinery and equipment for enhanced operability
• Implemented in pneumatic systems requiring precise control
• Suitable for use in environments with moderate corrosion stress
What is the recommended operating pressure for effective performance?
The valve is designed to operate within a pressure range of 1.5 bar to 8 bar, ensuring optimal functionality under various conditions.
Can the valve handle lubricated operation?
Yes, lubricated operation is possible but it is essential to ensure that lubrication is consistently maintained.
How does the electric actuation benefit automation processes?
Electric actuation enables rapid and accurate switching, significantly enhancing control in automated processes compared to manual systems.
What certifications does this valve hold for safety and reliability?
The valve is certified by DNVGL, confirming its compliance with high standards in safety and operational reliability.
