Festo 2/2 Way, Closed, Monostable Solenoid Valve - Electrical NPT 1 VZWP Series 24V dc, 1489974
- RS Stock No.:
- 288-3060
- Mfr. Part No.:
- VZWP-L-M22C-N1-250-1P4-40
- Brand:
- Festo
Subtotal (1 unit)*
£232.59
(exc. VAT)
£279.11
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £232.59 |
*price indicative
- RS Stock No.:
- 288-3060
- Mfr. Part No.:
- VZWP-L-M22C-N1-250-1P4-40
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 2/2 Way, Closed, Monostable | |
Connection Port Thread | NPT 1 | |
Actuation Type | Electrical | |
Manufacturer Series | VZWP | |
Solenoid Voltage | 24V dc | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 2/2 Way, Closed, Monostable | ||
Connection Port Thread NPT 1 | ||
Actuation Type Electrical | ||
Manufacturer Series VZWP | ||
Solenoid Voltage 24V dc | ||
- COO (Country of Origin):
- DE

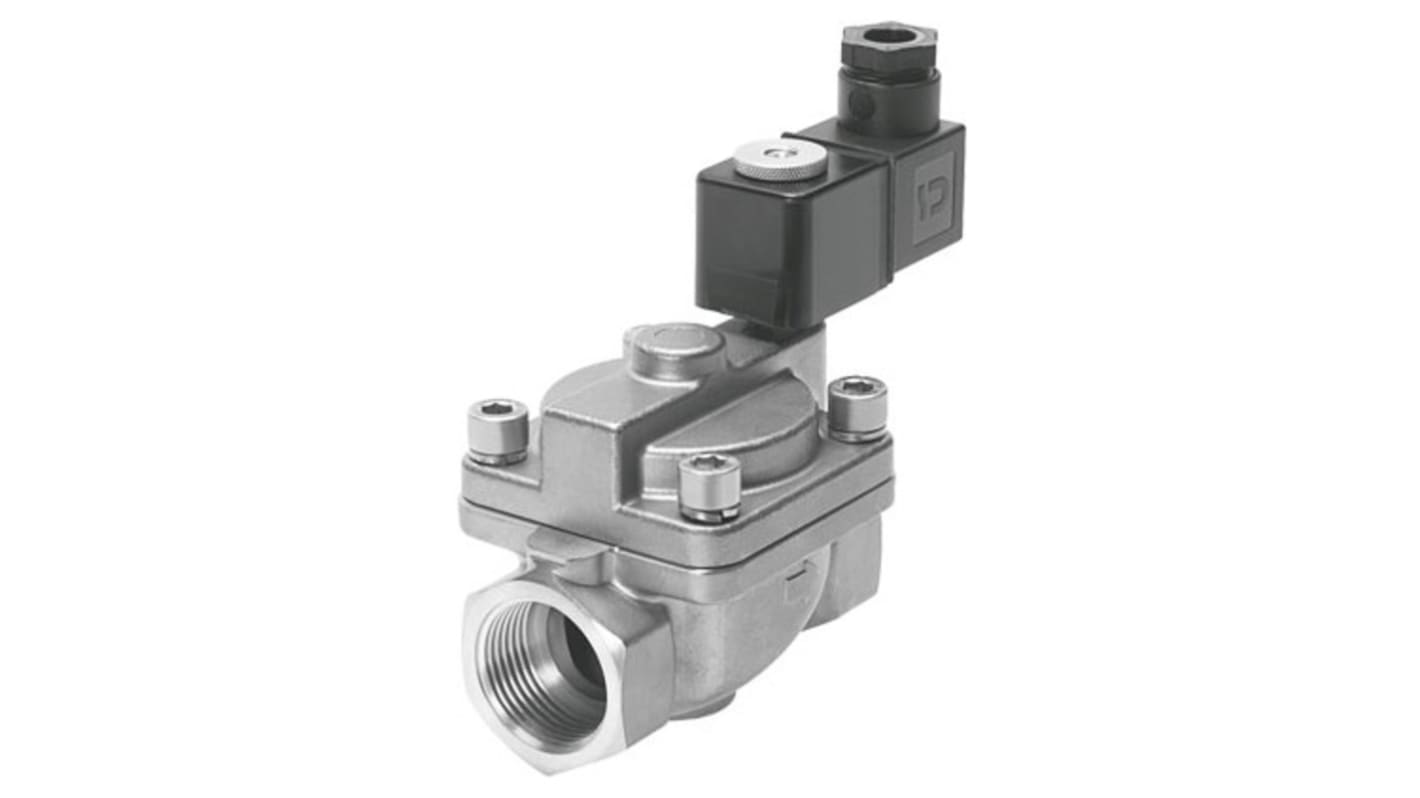

The Festo Solenoid Valve is designed as a piloted piston poppet valve with soft sealing principle, suitable for applications with compressed air, inert gases, and neutral fluids. It offers a nominal pressure of PN 40 and has a 2/2-way, closed, monostable
Designed for electric actuation with a coil on top mounting position
Suitable for in-line installation with a 1 NPT process valve connection
Features a 24 V DC characteristic coil and insulation material class H
Wide medium pressure range of 0.05 MPa to 4 MPa (0.5 bar to 40 bar)
Allows media temperature ranging from -10°C to 80°C for versatile applications
RoHS-compliant with high corrosion resistance and IP65 degree of protection
Suitable for in-line installation with a 1 NPT process valve connection
Features a 24 V DC characteristic coil and insulation material class H
Wide medium pressure range of 0.05 MPa to 4 MPa (0.5 bar to 40 bar)
Allows media temperature ranging from -10°C to 80°C for versatile applications
RoHS-compliant with high corrosion resistance and IP65 degree of protection
