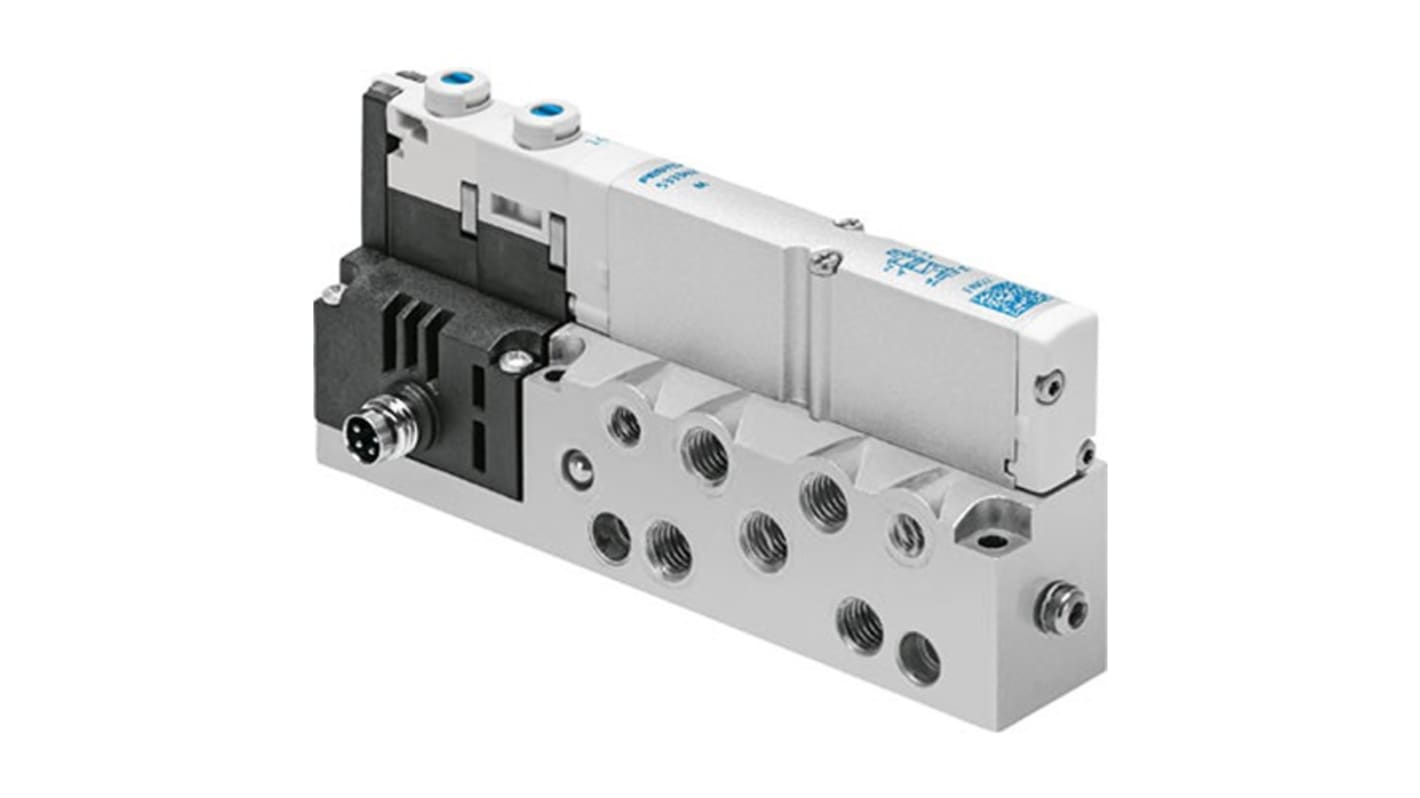

Festo Pneumatic Solenoid Valve - 2 x 2/2-Way, Closed, Monostable Electric G VMPA Series 24V
- RS Stock No.:
- 278-7036
- Mfr. Part No.:
- VMPA14-M1H-D-S-G1/8-PI
- Brand:
- Festo
Subtotal (1 unit)*
£190.92
(exc. VAT)
£229.10
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £190.92 |
*price indicative
- RS Stock No.:
- 278-7036
- Mfr. Part No.:
- VMPA14-M1H-D-S-G1/8-PI
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Solenoid Valve | |
| Port Size | 1/8 in G | |
| Port Type | Pneumatic | |
| Connection Thread Standard | G | |
| Actuation Type | Electric | |
| Solenoid Type | VMPA14-M1H-D-S-G1/8-PI | |
| Seal Material | Nitrile Rubber (NBR) | |
| Series | VMPA | |
| Voltage | 24V | |
| Mount Type | Through Hole | |
| Number of Ports | 2 | |
| Body Material | Die Cast Aluminium | |
| Maximum Operating Pressure | 1 Mpa | |
| Minimum Operating Temperature | -5°C | |
| Maximum Pilot Pressure | 0.8MPa | |
| Minimum Pilot Pressure | 0.3MPa | |
| Maximum Flow Rate | 570L/min | |
| Valve Function | 2 x 2/2-Way, Closed, Monostable | |
| Maximum Operating Temperature | 50°C | |
| Width | 14mm | |
| Standards/Approvals | CE, EU EMC, EU RoHS | |
| Hazardous Area Certification | NO | |
| Electrical Connection Type | Plug | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Solenoid Valve | ||
Port Size 1/8 in G | ||
Port Type Pneumatic | ||
Connection Thread Standard G | ||
Actuation Type Electric | ||
Solenoid Type VMPA14-M1H-D-S-G1/8-PI | ||
Seal Material Nitrile Rubber (NBR) | ||
Series VMPA | ||
Voltage 24V | ||
Mount Type Through Hole | ||
Number of Ports 2 | ||
Body Material Die Cast Aluminium | ||
Maximum Operating Pressure 1 Mpa | ||
Minimum Operating Temperature -5°C | ||
Maximum Pilot Pressure 0.8MPa | ||
Minimum Pilot Pressure 0.3MPa | ||
Maximum Flow Rate 570L/min | ||
Valve Function 2 x 2/2-Way, Closed, Monostable | ||
Maximum Operating Temperature 50°C | ||
Width 14mm | ||
Standards/Approvals CE, EU EMC, EU RoHS | ||
Hazardous Area Certification NO | ||
Electrical Connection Type Plug | ||
- COO (Country of Origin):
- DE
This Festo solenoid valve has an electric type of actuation. It has operating pressure ranging from 0.3 Mpa to 0.8 Mpa.
RoHS compliant
Die cast aluminium housing
UL Recognized
IP65 degree of protection
