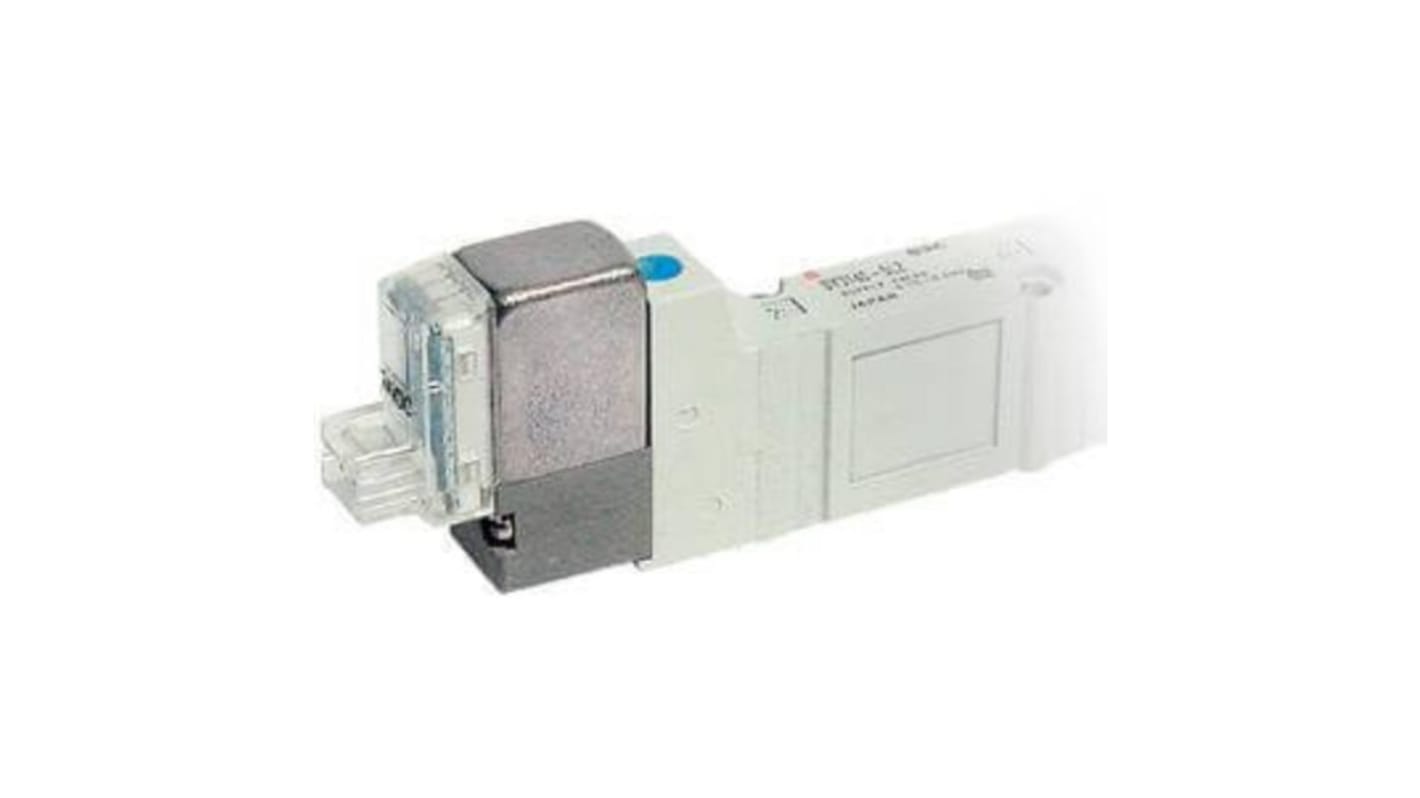

SMC Pneumatic Solenoid Valve - Air Metric SY3000 Series

Subtotal (1 unit)*

£52.03

(exc. VAT)

£62.44

(inc. VAT)

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£52.03

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Product Type	Pneumatic Solenoid Valve
	Connection Thread Standard	Metric
	Actuation Type	Air
	Seal Material	Halogenated Nitrile Rubber (HNBR)
	Series	SY3000
	Number of Ports	5
	Body Material	Die Cast Zinc
	Maximum Operating Pressure	0.7 MPa
	Minimum Pilot Pressure	0.1MPa
	Maximum Pilot Pressure	0.7MPa
	Maximum Flow Rate	276L/min
	Port Gender	Female
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Height	44.7mm

	Select all
	Brand SMC
	Product Type Pneumatic Solenoid Valve
	Connection Thread Standard Metric
	Actuation Type Air
	Seal Material Halogenated Nitrile Rubber (HNBR)
	Series SY3000
	Number of Ports 5
	Body Material Die Cast Zinc
	Maximum Operating Pressure 0.7 MPa
	Minimum Pilot Pressure 0.1MPa
	Maximum Pilot Pressure 0.7MPa
	Maximum Flow Rate 276L/min
	Port Gender Female
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Height 44.7mm
