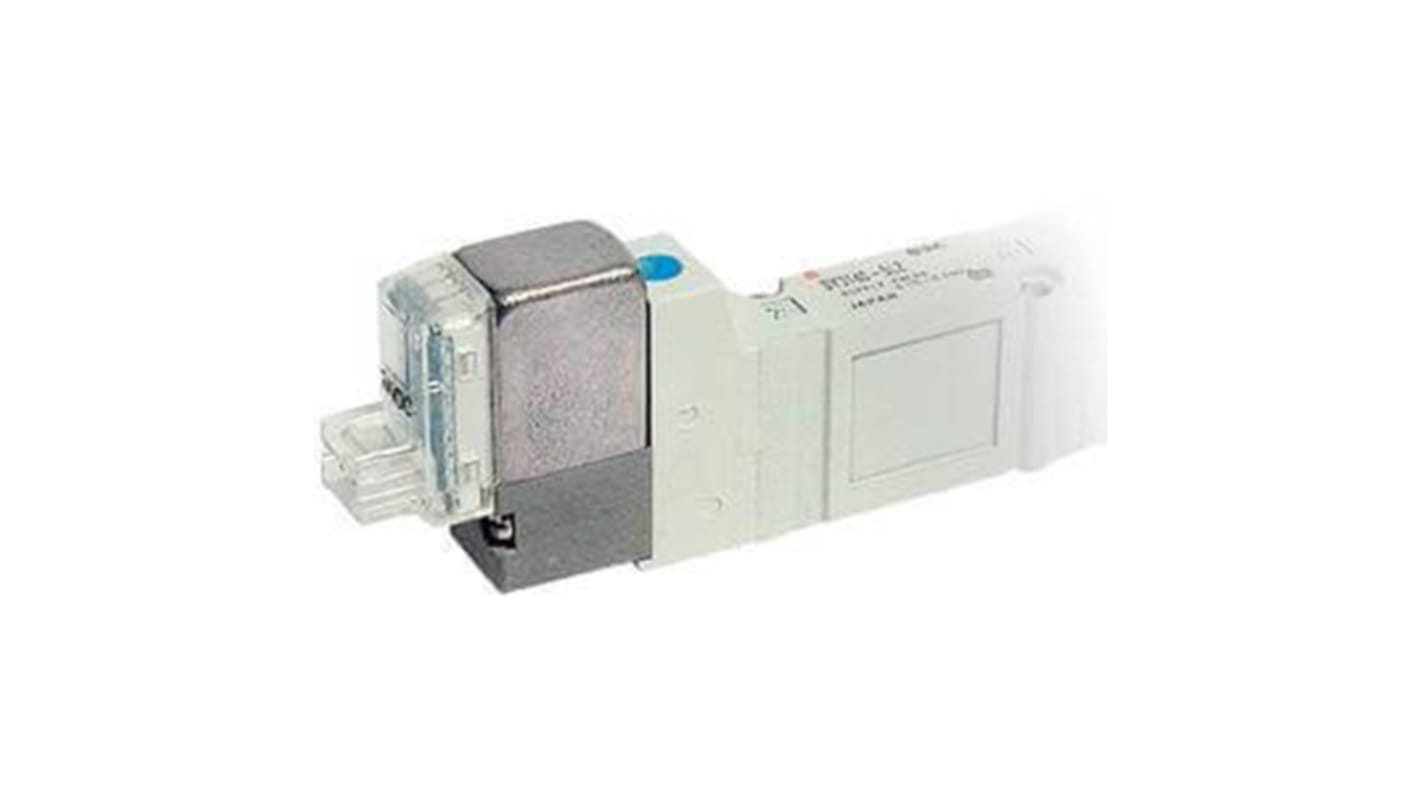

SMC Solenoid Valve - Solenoid Metric SY3000 Series
- RS Stock No.:
- 235-3462
- Mfr. Part No.:
- SY3140-5GZ-Q
- Brand:
- SMC
Subtotal (1 unit)*
£51.29
(exc. VAT)
£61.55
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship
- Plus 10 unit(s) shipping from 31 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £51.29 |
*price indicative
- RS Stock No.:
- 235-3462
- Mfr. Part No.:
- SY3140-5GZ-Q
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Solenoid Valve | |
| Port Size | M5 | |
| Port Type | Push-in | |
| Connection Thread Standard | Metric | |
| Actuation Type | Solenoid | |
| Series | SY3000 | |
| Seal Material | Nitrile Rubber (NBR) | |
| Mount Type | Base | |
| Number of Ports | 5 | |
| Body Material | Aluminium | |
| Maximum Operating Pressure | 0.7 Mpa | |
| Port Gender | Female | |
| Maximum Flow Rate | 276L/min | |
| Valve Function | NC | |
| Minimum Operating Temperature | -10°C | |
| Minimum Pilot Pressure | 0.1MPa | |
| Maximum Pilot Pressure | 0.7MPa | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | No | |
| Length | 97mm | |
| Width | 40mm | |
| Height | 80mm | |
| Number of Positions | 2 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Solenoid Valve | ||
Port Size M5 | ||
Port Type Push-in | ||
Connection Thread Standard Metric | ||
Actuation Type Solenoid | ||
Series SY3000 | ||
Seal Material Nitrile Rubber (NBR) | ||
Mount Type Base | ||
Number of Ports 5 | ||
Body Material Aluminium | ||
Maximum Operating Pressure 0.7 Mpa | ||
Port Gender Female | ||
Maximum Flow Rate 276L/min | ||
Valve Function NC | ||
Minimum Operating Temperature -10°C | ||
Minimum Pilot Pressure 0.1MPa | ||
Maximum Pilot Pressure 0.7MPa | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals No | ||
Length 97mm | ||
Width 40mm | ||
Height 80mm | ||
Number of Positions 2 | ||
- COO (Country of Origin):
- JP
The SMC 5 Port solenoid valve has 24V, 12V supply voltage. It has IP67 protection. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
Function 1 (2 Position Single)
Piping 40 (Body Ported Plug-in Integrated)
Pilot Type internal pilot (None for type 60)
Coil Specifications standard
Voltage 5 (24VDC)
