Buschjost NC Solenoid Valve - Solenoid G 1/4 82510 Series 24V dc
- RS Stock No.:
- 220-3423
- Mfr. Part No.:
- 8251020.9101.02400
- Brand:
- Buschjost
Save 3% when you buy 10 units
Subtotal (1 unit)*
£65.04
(exc. VAT)
£78.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £65.04 |
5 - 9 | £63.74 |
10 + | £62.44 |
*price indicative
- RS Stock No.:
- 220-3423
- Mfr. Part No.:
- 8251020.9101.02400
- Brand:
- Buschjost
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Buschjost | |
Function | NC | |
Connection Port Thread | G 1/4 | |
Actuation Type | Solenoid | |
Manufacturer Series | 82510 | |
Solenoid Voltage | 24V dc | |
Solenoid Fitted | Yes | |
Body Material | Brass | |
Maximum Flow Rate | 2.5L/min | |
Solenoid Power Consumption | 8W | |
Minimum Operating Pressure | 0bar | |
Maximum Operating Temperature | +50°C | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Pressure | 10 bar | |
Thread Size | 1/4in | |
Thread Standard | G | |
Select all | ||
---|---|---|
Brand Buschjost | ||
Function NC | ||
Connection Port Thread G 1/4 | ||
Actuation Type Solenoid | ||
Manufacturer Series 82510 | ||
Solenoid Voltage 24V dc | ||
Solenoid Fitted Yes | ||
Body Material Brass | ||
Maximum Flow Rate 2.5L/min | ||
Solenoid Power Consumption 8W | ||
Minimum Operating Pressure 0bar | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Pressure 10 bar | ||
Thread Size 1/4in | ||
Thread Standard G | ||
- COO (Country of Origin):
- DE

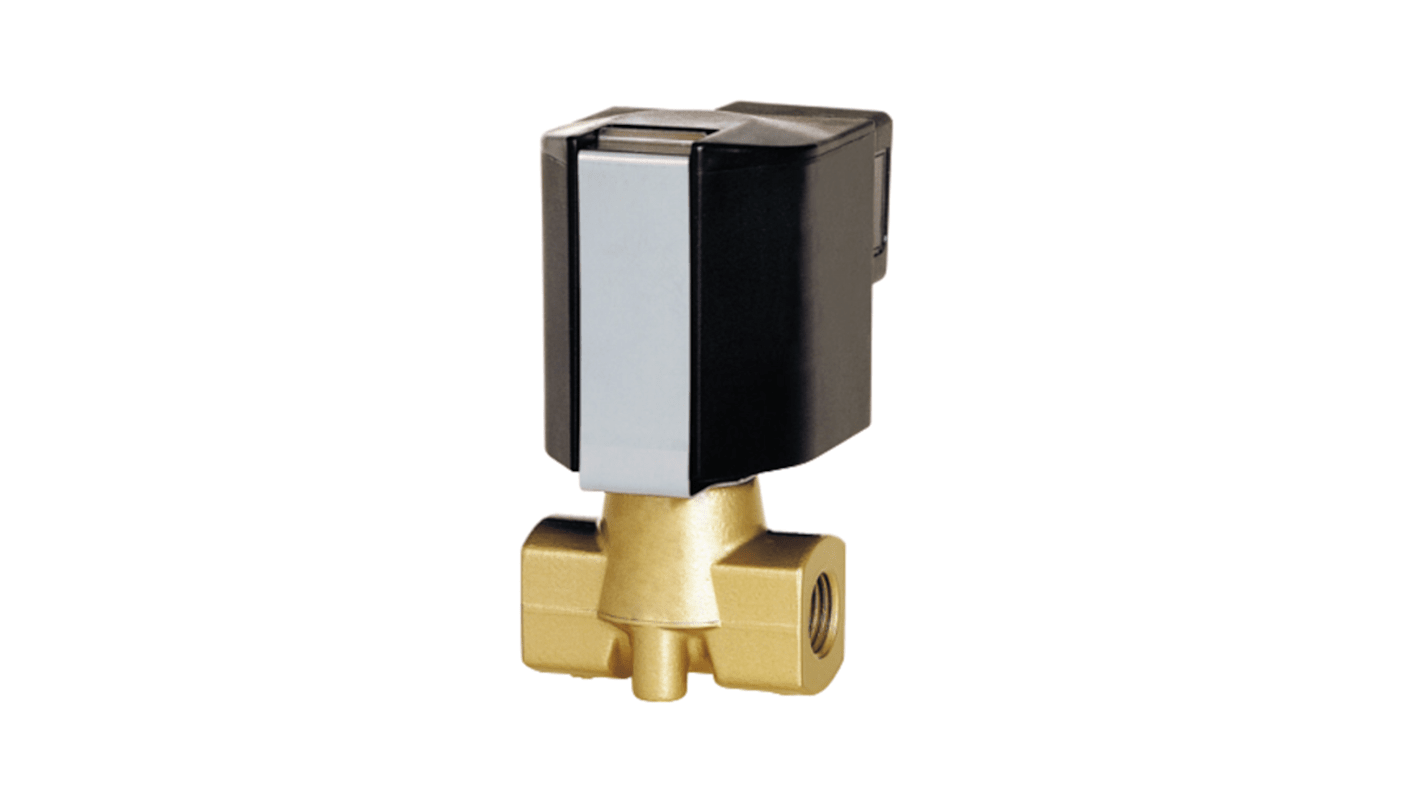

IMI 470 Buschjost Solenoid Valve, Brass Body, Differential Pressure Type - 82510 Series - 8251020.9101.02400
Looking for a low-pressure way to manage the fluids in your system? This 2/2-way solenoid valve from IMI 470 Buschjost is the answer. Supply it with 24V DC to adjust the poppet mechanism and stop or start the airflow to your process. Harsh environments are no problem for this unit, which handles temperatures of -10°C to +50°C. An IP65 rating indicates it's dust-tight and withstands water jets from any direction, so can be trusted in contaminated conditions. For easy installation, it has a G1/4 port that's compatible with standard connecting parts.
Features & Benefits
• Low weight of 330g means it puts minimal strain on your setup
• Space-saving size of 44 (L) x 30 (W) x 67mm (H)
• Versatile operating pressure range of 0 to 10 bar
• Brass body is rust-resistant for use in humid environments
• Durable NBR seat seal prevents leakage to maintain system pressure
• Space-saving size of 44 (L) x 30 (W) x 67mm (H)
• Versatile operating pressure range of 0 to 10 bar
• Brass body is rust-resistant for use in humid environments
• Durable NBR seat seal prevents leakage to maintain system pressure
Applications
• Drinks processing equipment
• Automotive fluid regulation
• Air compressor units
• Natural gas installations
• Automotive fluid regulation
• Air compressor units
• Natural gas installations
What media can this valve handle?
This versatile unit transmits any gas or liquid, provided it's neutral and the temperature is between -10°C and +90°C.
