Norgren Pneumatic Solenoid Valve - 5/2 Solenoid/Air G V60 Series 24V
- RS Stock No.:
- 218-0320
- Mfr. Part No.:
- V60A513A-A3000
- Brand:
- Norgren
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£91.09
(exc. VAT)
£109.31
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £91.09 |
| 5 - 9 | £89.27 |
| 10 + | £87.45 |
*price indicative
- RS Stock No.:
- 218-0320
- Mfr. Part No.:
- V60A513A-A3000
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Pneumatic Solenoid Valve | |
| Port Size | 1/8 in | |
| Connection Thread Standard | G | |
| Actuation Type | Solenoid/Air | |
| Series | V60 | |
| Voltage | 24V | |
| Seal Material | Nitrile Rubber (NBR) | |
| Mount Type | In Line Mount | |
| Number of Ports | 5 | |
| Maximum Operating Pressure | 10 bar | |
| Body Material | Aluminium | |
| Valve Function | 5/2 | |
| Minimum Pilot Pressure | 1bar | |
| Maximum Pilot Pressure | 10bar | |
| Minimum Operating Temperature | -10°C | |
| Maximum Flow Rate | 750L/min | |
| Maximum Operating Temperature | 50°C | |
| Solenoid Power Consumption | 2W | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | RoHS | |
| Electrical Connection Type | Industrial Standard | |
| Number of Positions | 2 | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Pneumatic Solenoid Valve | ||
Port Size 1/8 in | ||
Connection Thread Standard G | ||
Actuation Type Solenoid/Air | ||
Series V60 | ||
Voltage 24V | ||
Seal Material Nitrile Rubber (NBR) | ||
Mount Type In Line Mount | ||
Number of Ports 5 | ||
Maximum Operating Pressure 10 bar | ||
Body Material Aluminium | ||
Valve Function 5/2 | ||
Minimum Pilot Pressure 1bar | ||
Maximum Pilot Pressure 10bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Flow Rate 750L/min | ||
Maximum Operating Temperature 50°C | ||
Solenoid Power Consumption 2W | ||
Hazardous Area Certification NO | ||
Standards/Approvals RoHS | ||
Electrical Connection Type Industrial Standard | ||
Number of Positions 2 | ||
- COO (Country of Origin):
- CZ

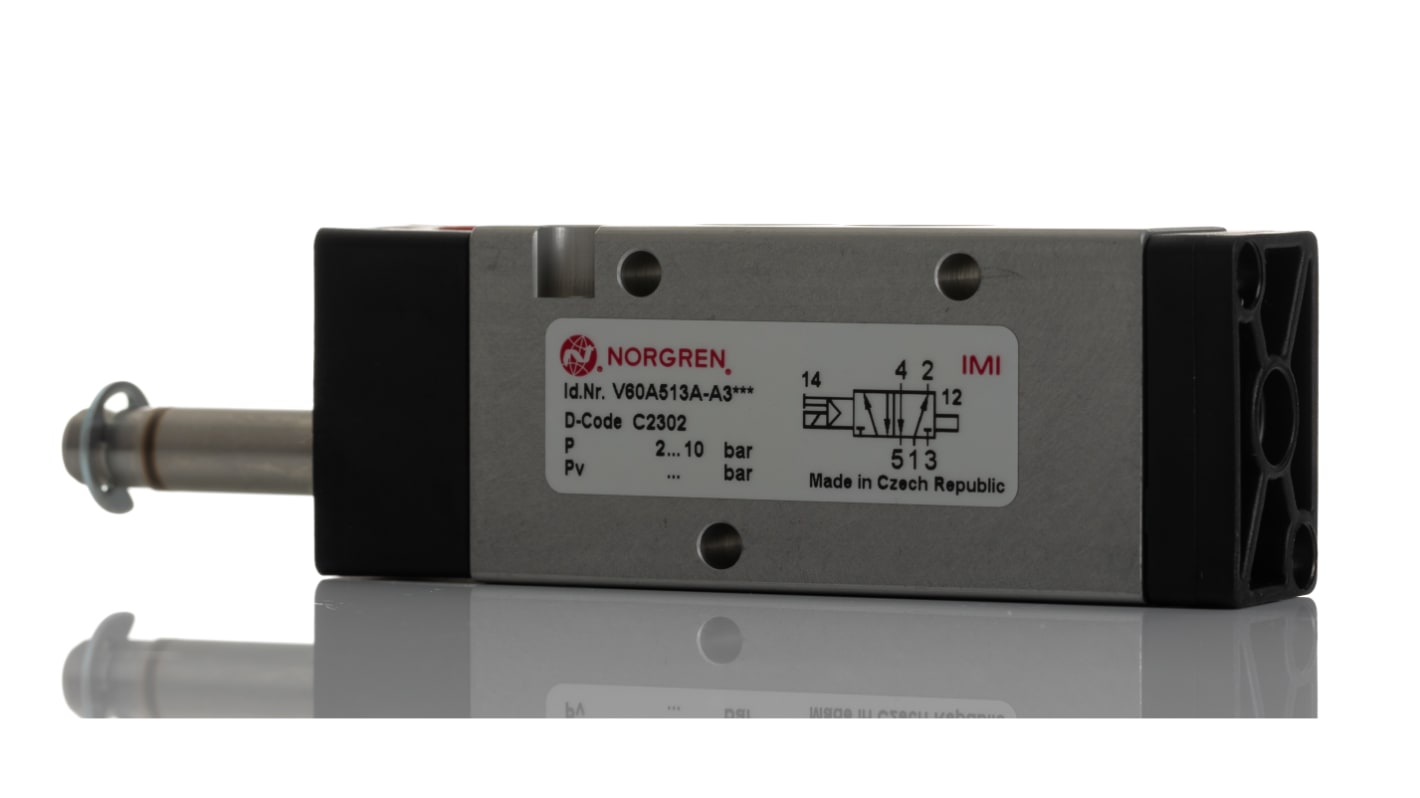

IMI Norgren Pneumatic Solenoid Valve, 5/2 Valve Operation, 750L/min Maximum Flow Rate - V60 Series - V60A513A-A3000
Point your hardware's compressed air in the right direction with this IMI Norgren pneumatic solenoid valve. By controlling with an internal air-powered spring, it directs airflow without the need for an extra connection. The device tackles flow rates up to 750l/min to keep up with intense tasks. It rotates in 90° steps once mounted to make for simple valve access. This unit's IP65 rating indicates it shrugs off wear from dust and low-pressure water jets for durability.
Features & Benefits
• Corrosion-resistant aluminium housing for reliability in damp settings
• Manual override opens ports without power, making it easy to check components during supply issues
• Industry-standard G1/8 thread port for versatility
• NBR rings form airtight seals to protect system pressure
• Broad operating pressure range of 2 to 10 bar for use with heavy-duty applications
Applications
• Process control
• Manufacturing industry
• Bottling plants
Can I control this solenoid valve using an electrical coil?
Yes, the unit supports a solenoid coil (723-539), letting it work with air or electrical power for flexibility.
