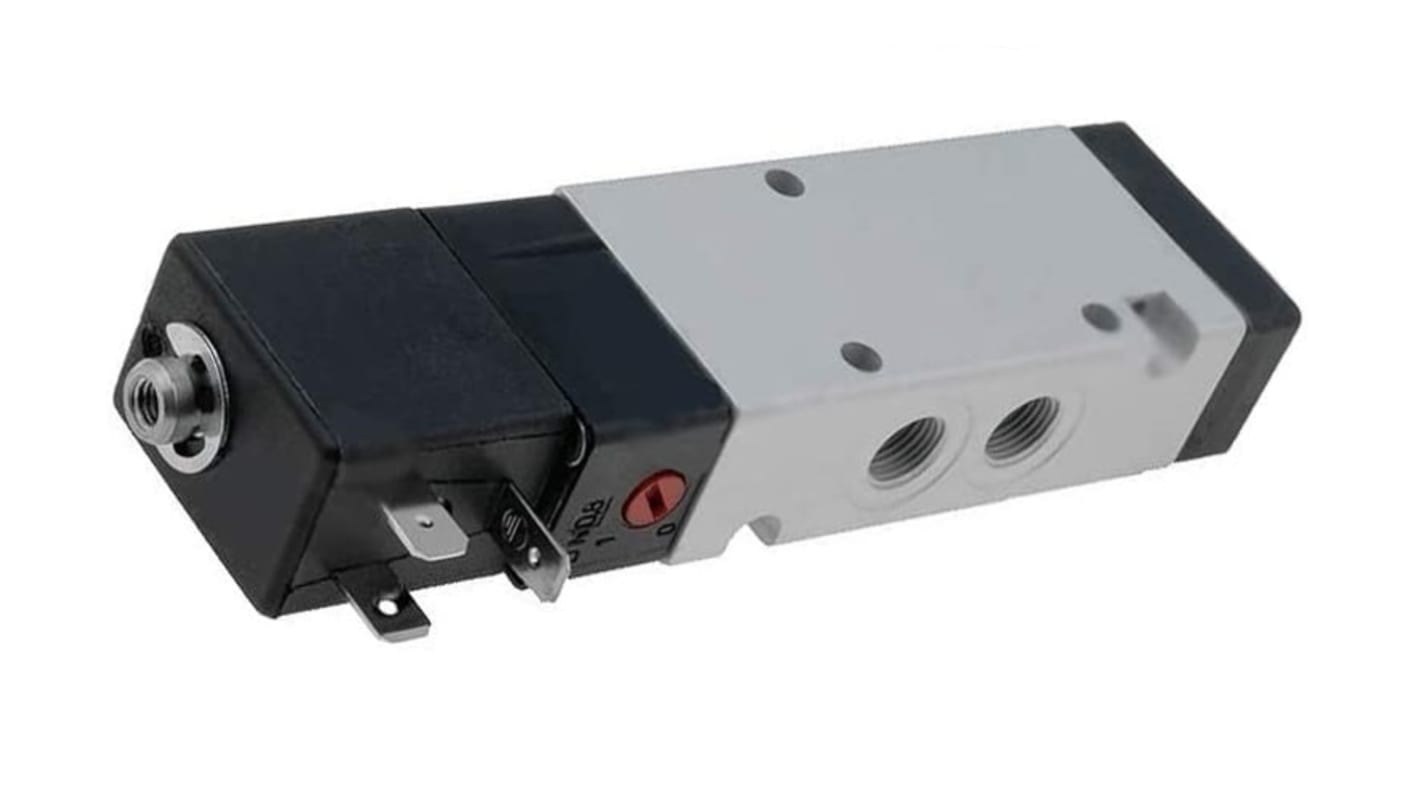

Norgren Pneumatic Solenoid Valve - Solenoid/Air G V60 Series 24V
- RS Stock No.:
- 218-0319
- Mfr. Part No.:
- V60A513A-A213J
- Brand:
- Norgren
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£107.58
(exc. VAT)
£129.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £107.58 |
| 5 - 9 | £105.43 |
| 10 + | £103.26 |
*price indicative
- RS Stock No.:
- 218-0319
- Mfr. Part No.:
- V60A513A-A213J
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Pneumatic Solenoid Valve | |
| Port Size | 1/8 to 1/2 in | |
| Connection Thread Standard | G | |
| Actuation Type | Solenoid/Air | |
| Series | V60 | |
| Seal Material | Nitrile Rubber (NBR) | |
| Voltage | 24V | |
| Mount Type | In Line Mount | |
| Number of Ports | 5 | |
| Body Material | Die Cast Aluminium | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Operating Temperature | -10°C | |
| Minimum Pilot Pressure | 1bar | |
| Maximum Pilot Pressure | 10bar | |
| Maximum Operating Temperature | 50°C | |
| Solenoid Power Consumption | 2W | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | RoHS | |
| Electrical Connection Type | Industrial Standard | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Pneumatic Solenoid Valve | ||
Port Size 1/8 to 1/2 in | ||
Connection Thread Standard G | ||
Actuation Type Solenoid/Air | ||
Series V60 | ||
Seal Material Nitrile Rubber (NBR) | ||
Voltage 24V | ||
Mount Type In Line Mount | ||
Number of Ports 5 | ||
Body Material Die Cast Aluminium | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -10°C | ||
Minimum Pilot Pressure 1bar | ||
Maximum Pilot Pressure 10bar | ||
Maximum Operating Temperature 50°C | ||
Solenoid Power Consumption 2W | ||
Hazardous Area Certification NO | ||
Standards/Approvals RoHS | ||
Electrical Connection Type Industrial Standard | ||
- COO (Country of Origin):
- DE
IMI Norgren Pneumatic Solenoid Valve, 5/2 Valve Function, 750L/min Maximum Flow Rate - V60 Series - V60A513A-A213J
Keen to manage the airflow in your system? Put this IMI Norgren pneumatic solenoid valve in control. It's a directional device, so it puts your compressed air on the right path from the control device. Shutting your system's airways during power cuts is no issue for this unit as its built-in air spring automatically seals unpowered valves. The device's coil rotates in 90° turns to simplify installation, and as it supports flow rates up to 750L/min, you can breathe easy while working with intense air-powered equipment.
Features & Benefits
• Locks with a simple push and turn, helping to cut disruption from tampering
• Low power usage of 2W for energy-efficient flow control
• Compact dimensions of 132 (L) x 22 (W) x 35mm (H) so it fits into busy systems
• Uses a standardised G1/8 thread connection for wide compatibility with standard industrial components
Applications
• Semiconductor manufacturing
• Industrial cleaning
• Spray painting
Can I use this solenoid valve in my outdoor applications?
Yes, the product's IP65 rating means it's dust-tight and resistant to low-pressure water jets, so it stands up to harsh weather conditions.
