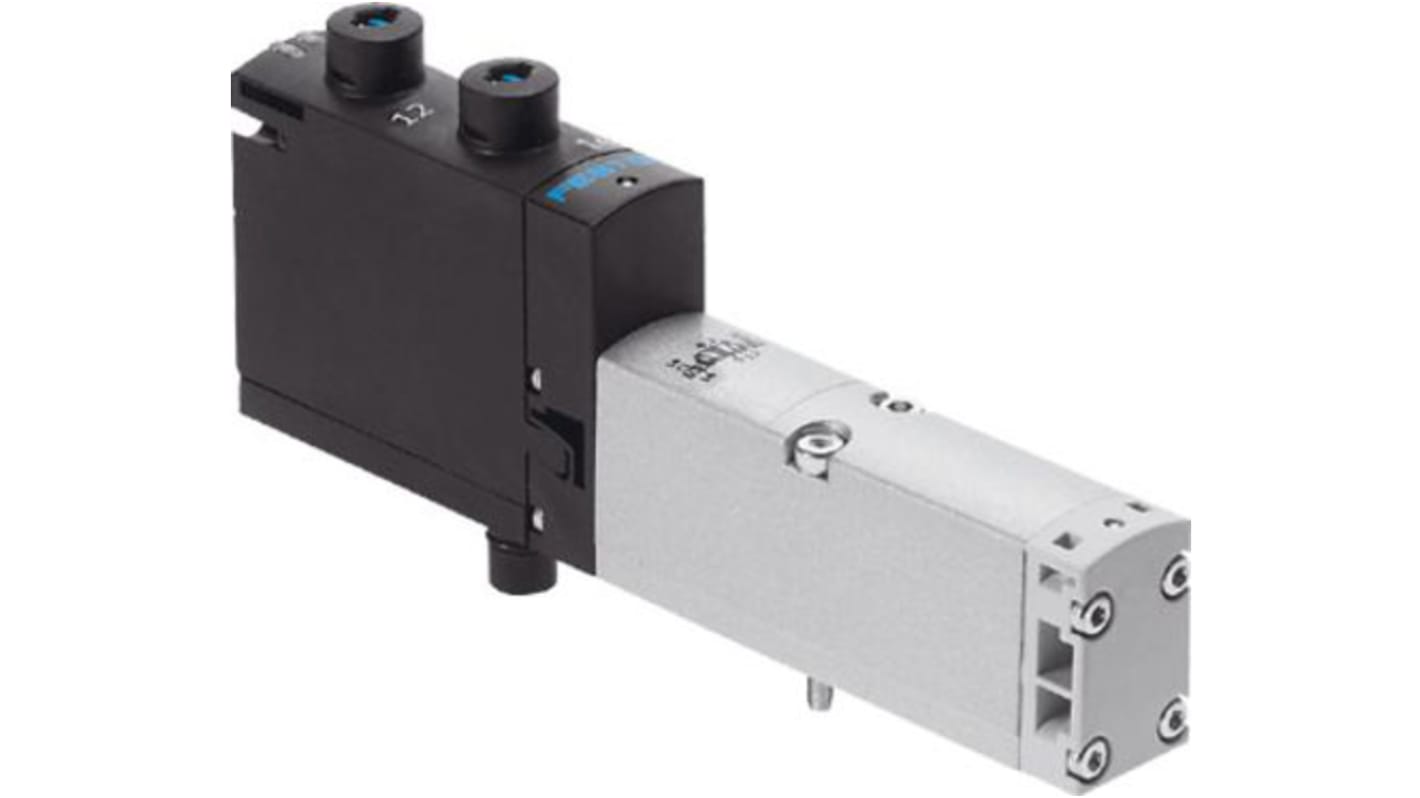

Festo Solenoid Valve - 5/3 Pressurised Electric ISO 15407-2 VSVA-B-P53U-ZD-A2-1T1L Series 24V
- RS Stock No.:
- 203-7445
- Mfr. Part No.:
- VSVA-B-P53U-ZD-A2-1T1L
- Brand:
- Festo
Subtotal (1 unit)*
£130.61
(exc. VAT)
£156.73
(inc. VAT)
FREE delivery for orders over £60.00
- Ready to ship from 10 November 2026
Units | Per unit |
|---|---|
| 1 + | £130.61 |
*price indicative
- RS Stock No.:
- 203-7445
- Mfr. Part No.:
- VSVA-B-P53U-ZD-A2-1T1L
- Brand:
- Festo
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Solenoid Valve | |
| Port Type | Pneumatic | |
| Connection Thread Standard | ISO 15407-2 | |
| Actuation Type | Electric | |
| Solenoid Type | Single | |
| Seal Material | Fluorelastomer, Halogenated Nitrile Rubber, Nitrile Rubber (NBR) | |
| Series | VSVA-B-P53U-ZD-A2-1T1L | |
| Voltage | 24V | |
| Mount Type | Base | |
| Number of Ports | 5 | |
| Body Material | Die Cast Aluminium, Polyamide | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Operating Temperature | -5°C | |
| Maximum Pilot Pressure | 10bar | |
| Minimum Pilot Pressure | 3bar | |
| Maximum Flow Rate | 700L/min | |
| Port Gender | Male | |
| Valve Function | 5/3 Pressurised | |
| Maximum Operating Temperature | 50°C | |
| Solenoid Power Consumption | 1.6W | |
| Standards/Approvals | CSA (OL) c UL us (OL), ISO 15407-2, ISO8573-1:2010 (7:4:4), RoHS | |
| Hazardous Area Certification | CSA, cULus | |
| Width | 18mm | |
| Length | 140mm | |
| Height | 58.3mm | |
| Electrical Connection Type | Plug | |
| Number of Positions | 3 | |
| Model Number | 539186 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Solenoid Valve | ||
Port Type Pneumatic | ||
Connection Thread Standard ISO 15407-2 | ||
Actuation Type Electric | ||
Solenoid Type Single | ||
Seal Material Fluorelastomer, Halogenated Nitrile Rubber, Nitrile Rubber (NBR) | ||
Series VSVA-B-P53U-ZD-A2-1T1L | ||
Voltage 24V | ||
Mount Type Base | ||
Number of Ports 5 | ||
Body Material Die Cast Aluminium, Polyamide | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -5°C | ||
Maximum Pilot Pressure 10bar | ||
Minimum Pilot Pressure 3bar | ||
Maximum Flow Rate 700L/min | ||
Port Gender Male | ||
Valve Function 5/3 Pressurised | ||
Maximum Operating Temperature 50°C | ||
Solenoid Power Consumption 1.6W | ||
Standards/Approvals CSA (OL) c UL us (OL), ISO 15407-2, ISO8573-1:2010 (7:4:4), RoHS | ||
Hazardous Area Certification CSA, cULus | ||
Width 18mm | ||
Length 140mm | ||
Height 58.3mm | ||
Electrical Connection Type Plug | ||
Number of Positions 3 | ||
Model Number 539186 | ||
- COO (Country of Origin):
- DE
