Festo 2x3/2 Closed, Monostable Solenoid Valve - Electrical VSVA Series, 534781
- RS Stock No.:
- 202-1355
- Mfr. Part No.:
- VSVA-B-T32C-AZH-A2-1R2L
- Brand:
- Festo
Subtotal (1 unit)*
£196.95
(exc. VAT)
£236.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
- Plus 999,999,995 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £196.95 |
*price indicative
- RS Stock No.:
- 202-1355
- Mfr. Part No.:
- VSVA-B-T32C-AZH-A2-1R2L
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 2x3/2 Closed, Monostable | |
Actuation Type | Electrical | |
Manufacturer Series | VSVA | |
Mounting Style | Sub Base | |
Maximum Flow Rate | 400L/min | |
Solenoid Power Consumption | 2.4W | |
Minimum Operating Pressure | 3bar | |
Maximum Operating Temperature | +50°C | |
Maximum Operating Pressure | 10 bar | |
Minimum Operating Temperature | -5°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 2x3/2 Closed, Monostable | ||
Actuation Type Electrical | ||
Manufacturer Series VSVA | ||
Mounting Style Sub Base | ||
Maximum Flow Rate 400L/min | ||
Solenoid Power Consumption 2.4W | ||
Minimum Operating Pressure 3bar | ||
Maximum Operating Temperature +50°C | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -5°C | ||
- COO (Country of Origin):
- DE

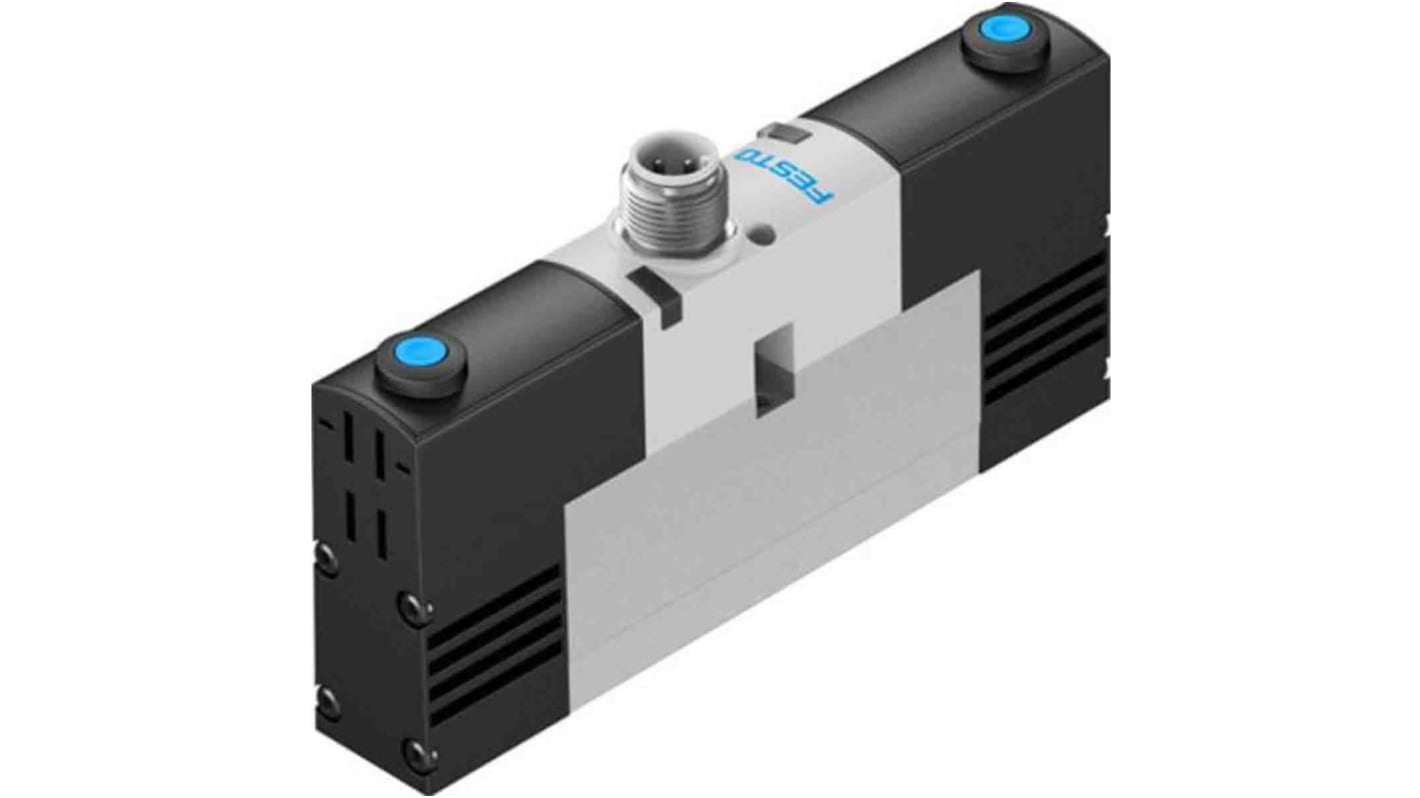

Festo Pneumatic Solenoid Valve, 2x3/2 Function, M8 Thread - VSVA-B-T32C-AZH-A2-1R2L
Choose this solenoid valve from Festo to direct the airways to your hardware. It controls two monostable valves with one electrical signal to deliver efficient flow management. With a 400L/min flow rate, the device can support the performance of smaller pneumatic equipment. A 24V DC supply voltage makes it compatible with many common power supplies. For safe servicing, there's a manual override that lets you open the ports without power.
• Performs between 3 and 10 bar pressures to suit your air supply
• Rated at IP65 to indicate complete protection against dust and low-pressure water jets, providing the versatility for even harsh indoor applications
• Standard M8 connection thread provides wide compatibility with industrial appliances
• Switching times between 10 and 22ms ensure a responsive component for intense automated systems
• Rated at IP65 to indicate complete protection against dust and low-pressure water jets, providing the versatility for even harsh indoor applications
• Standard M8 connection thread provides wide compatibility with industrial appliances
• Switching times between 10 and 22ms ensure a responsive component for intense automated systems
Applications
• Automotive industry
• Chemical and petrochemical processing
• Crane and lift systems
• Assembly lines
• Chemical and petrochemical processing
• Crane and lift systems
• Assembly lines
Does this solenoid valve come with any diagnostic information?
Yes, an LED indicator on the unit signals the status of the electrical connection. Attaching it to a PLC can provide more detailed diagnostic information.
