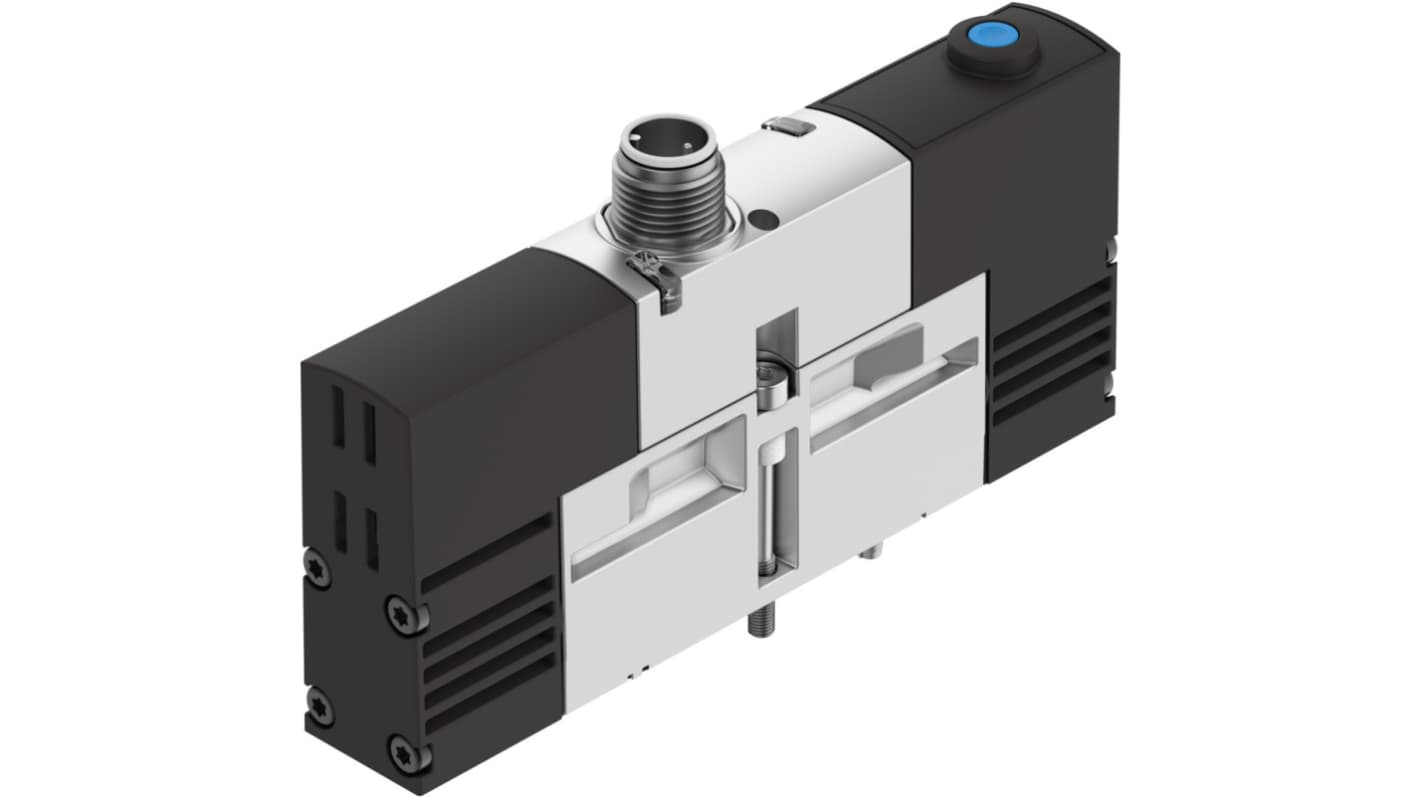

Festo 5/2 Monostable Solenoid Valve - Electrical VSVA Series, 546767
- RS Stock No.:
- 202-1297
- Mfr. Part No.:
- VSVA-B-M52-AH-A2-1R5L
- Brand:
- Festo
Subtotal (1 unit)*
£119.33
(exc. VAT)
£143.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £119.33 |
*price indicative
- RS Stock No.:
- 202-1297
- Mfr. Part No.:
- VSVA-B-M52-AH-A2-1R5L
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 5/2 Monostable | |
Actuation Type | Electrical | |
Manufacturer Series | VSVA | |
Mounting Style | Sub Base | |
Configuration | 5/2 | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 5/2 Monostable | ||
Actuation Type Electrical | ||
Manufacturer Series VSVA | ||
Mounting Style Sub Base | ||
Configuration 5/2 | ||
- COO (Country of Origin):
- DE
Festo VSVA Series Solenoid Valve, 5/2 Monostable Configuration, 24V DC Operating Voltage - VSVA-B-M52-AH-A2-1R5L, Numeric Part Number: 546767
This solenoid valve is an essential component for automation in various industrial applications. It is a 5/2 monostable valve designed for electrical actuation, ensuring efficient control of pneumatic systems. With a compact construction width of 18mm, it aligns easily with sub-base mounting requirements, facilitating seamless integration into existing frameworks.
Features & Benefits
• Operates effectively within a pressure range of 3 bar to 8 bar
• Features a standard nominal flow rate of 550 l/min
• Equipped with internal pilot air supply for efficient operation
• Offers optional flow control in the exhaust-air function
• Includes a safety shut-off mechanism for enhanced operational safety
• Built with an IP65 protection rating for durability in demanding environments
• Features a standard nominal flow rate of 550 l/min
• Equipped with internal pilot air supply for efficient operation
• Offers optional flow control in the exhaust-air function
• Includes a safety shut-off mechanism for enhanced operational safety
• Built with an IP65 protection rating for durability in demanding environments
Applications
• Used for controlling air flow in automation systems
• Employed in machinery requiring precise pneumatic control
• Suitable for with variable mounting positions
• Utilised in environments subject to moisture and dust
• Employed in machinery requiring precise pneumatic control
• Suitable for with variable mounting positions
• Utilised in environments subject to moisture and dust
What is the recommended operating temperature range for this unit?
The device operates efficiently in temperature conditions from -5°C to +50°C, making it suitable for various industrial environments.
How does the design of the valve support lubricated operation?
This valve is capable of lubricated operation, which is essential for applications requiring additional lubrication to ensure optimal performance and longevity.
What measures are in place for protection against electrical issues?
It features reverse polarity protection for all electrical connections, safeguarding the device from incorrect wiring and reducing the risk of damage.
Can the valve be manually overridden?
Yes, the valve includes a non-detenting manual override function, allowing for manual control when necessary during maintenance or testing.
