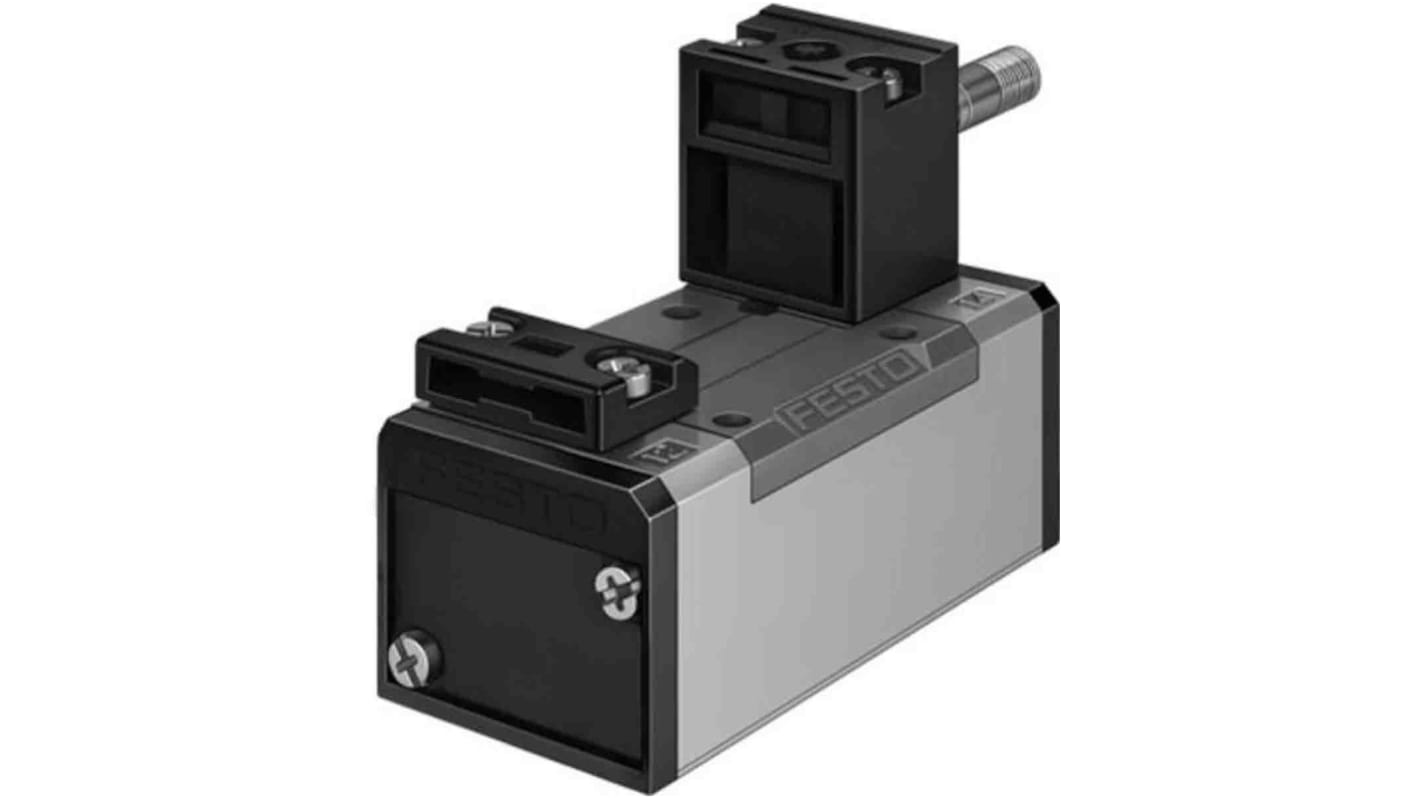

Festo 5/2 Monostable Solenoid Valve - Electrical G 1/4 MFH Series, 150981
- RS Stock No.:
- 202-1211
- Mfr. Part No.:
- MFH-5/2-D-1-C
- Brand:
- Festo
Subtotal (1 unit)*
£124.80
(exc. VAT)
£149.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £124.80 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£108.00
(exc. VAT)
£129.60
(inc. VAT)
- RS Stock No.:
- 202-1211
- Mfr. Part No.:
- MFH-5/2-D-1-C
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 5/2 Monostable | |
Connection Port Thread | G 1/4 | |
Actuation Type | Electrical | |
Manufacturer Series | MFH | |
Mounting Style | Manifold | |
Solenoid Fitted | No | |
Number of Ports | 5 | |
Body Material | Aluminium | |
Maximum Flow Rate | 1200L/min | |
Minimum Operating Pressure | 2bar | |
Maximum Operating Pressure | 10 bar | |
Number of Positions | 2 | |
Configuration | 5/2 | |
Thread Size | 1/4in | |
Maximum Operating Temperature | +40°C | |
Minimum Operating Temperature | -5°C | |
Thread Standard | G | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 5/2 Monostable | ||
Connection Port Thread G 1/4 | ||
Actuation Type Electrical | ||
Manufacturer Series MFH | ||
Mounting Style Manifold | ||
Solenoid Fitted No | ||
Number of Ports 5 | ||
Body Material Aluminium | ||
Maximum Flow Rate 1200L/min | ||
Minimum Operating Pressure 2bar | ||
Maximum Operating Pressure 10 bar | ||
Number of Positions 2 | ||
Configuration 5/2 | ||
Thread Size 1/4in | ||
Maximum Operating Temperature +40°C | ||
Minimum Operating Temperature -5°C | ||
Thread Standard G | ||
- COO (Country of Origin):
- HU
Festo Solenoid Valve, Electrical Actuation, 5/2 Monostable - MFH-5/2-D-1-C
Need a reliable valve for your pneumatic system? This solenoid valve from Festo is designed for effective flow control at a high flow rate of up to 1200L/min. It has an aluminium die-cast housing that's resistant to corrosion and heat, making it a good choice for use in demanding industrial environments. For greater control of your system, you can mount the unit on a hydraulic manifold to connect multiple valves and components together. This type of valve is commonly used in fluid power motors and domestic appliances such as dishwashers and washing machines.
• Wide operating temperature range of -5°C to +40 °C for industrial use
• IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets
• Manual override function for safe use in the event of power loss
• IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets
• Manual override function for safe use in the event of power loss
Applications
• Pneumatic and hydraulic systems
• HVAC (heating, ventilation and air conditioning) systems
• HVAC (heating, ventilation and air conditioning) systems
What's a 5/2 monostable valve?
A 5/2 valve like this one has five ports and two positions – it's an effective choice for use with a double-acting cylinder. As it's monostable, it's returned to its original position by a spring when it's not actuated. Monostable valves typically need less wiring than bistable alternatives.
