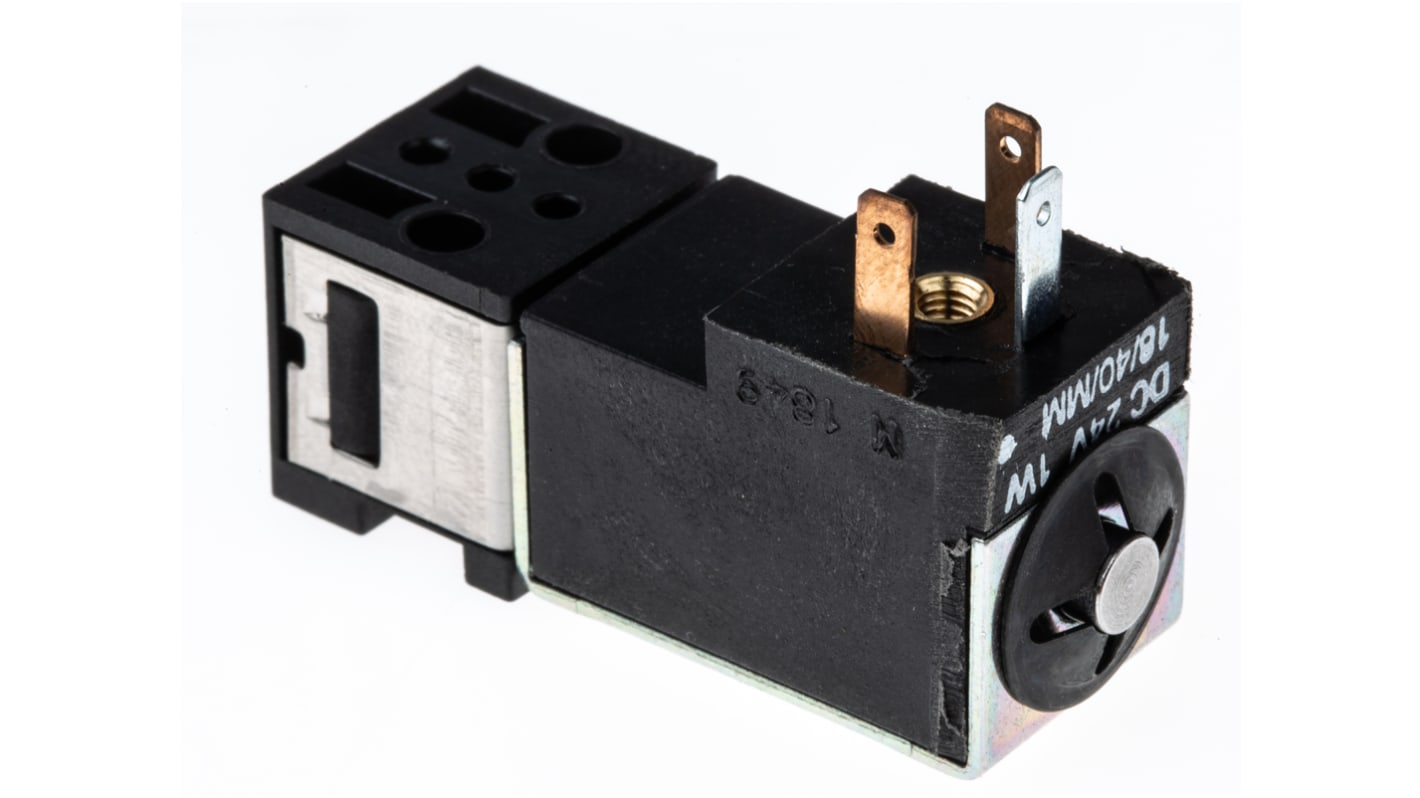

Crouzet 3/2 Pneumatic Solenoid Valve - 81 Series 24V dc

View all Pneumatic Solenoid Valves
Discontinued

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Crouzet 3/2 Pneumatic Solenoid Valve - Solenoid/Pilot 81 Series 24V dc
RS Stock No.
722-895

Each

£28.03

(exc. VAT)

£33.64

(inc. VAT)

RS Stock No.:
179-0653
Mfr. Part No.:
81519032
Brand:
Crouzet
Find similar products by selecting one or more attributes.
Select all

Brand

Crouzet

Function

3/2

Manufacturer Series

81

Mounting Style

Manifold

Solenoid Voltage

24V dc

Solenoid Fitted

Yes

Number of Ports

3/2

Maximum Flow Rate

25NL/min

Solenoid Power Consumption

1W

Minimum Operating Pressure

1bar

Maximum Operating Temperature

+50°C

Maximum Operating Pressure

8bar

Minimum Operating Temperature

-10°C

RoHS Status: Not Applicable

COO (Country of Origin):
MA

Control mini-solenoid valves


Control mini-solenoid valves, with or without manual control.
Direct connection to the socket mount and the mini-distributor.


Crouzet


Modular solenoid valves and accessories that have been designed for manifold assembly, and DIN rail mounting.The valves act as a functional interface between electrical/electronic control systems and pneumatic drives.Main Features:


Low power consumption (1W)
High output pressure range, 3 to 8 bar
Rapid installation and easy maintenance
Ideal for use with programmable controllers
