Festo 2/2 Solenoid Valve - Solenoid/Pilot G 3/8 VZWF Series 24V dc, 1492111
- RS Stock No.:
- 121-5805
- Mfr. Part No.:
- VZWF-B-L-M22C-G38-135-1P4-10
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£89.89
(exc. VAT)
£107.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 12 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £89.89 |
5 + | £86.29 |
*price indicative
- RS Stock No.:
- 121-5805
- Mfr. Part No.:
- VZWF-B-L-M22C-G38-135-1P4-10
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 2/2 | |
Connection Port Thread | G 3/8 | |
Actuation Type | Solenoid/Pilot | |
Manufacturer Series | VZWF | |
Mounting Style | Inline | |
Solenoid Voltage | 24V dc | |
Solenoid Fitted | Yes | |
Number of Ports | 2 | |
Body Material | Brass | |
Maximum Flow Rate | 2350L/min | |
Solenoid Power Consumption | 11W | |
Minimum Operating Pressure | 0bar | |
Thread Size | 3/8in | |
Maximum Operating Temperature | +35°C | |
Number of Positions | 2 | |
Maximum Operating Pressure | 10bar | |
Minimum Operating Temperature | -10°C | |
Thread Standard | G | |
Special Features | Forced Lifting of the Valve Diaphragm | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 2/2 | ||
Connection Port Thread G 3/8 | ||
Actuation Type Solenoid/Pilot | ||
Manufacturer Series VZWF | ||
Mounting Style Inline | ||
Solenoid Voltage 24V dc | ||
Solenoid Fitted Yes | ||
Number of Ports 2 | ||
Body Material Brass | ||
Maximum Flow Rate 2350L/min | ||
Solenoid Power Consumption 11W | ||
Minimum Operating Pressure 0bar | ||
Thread Size 3/8in | ||
Maximum Operating Temperature +35°C | ||
Number of Positions 2 | ||
Maximum Operating Pressure 10bar | ||
Minimum Operating Temperature -10°C | ||
Thread Standard G | ||
Special Features Forced Lifting of the Valve Diaphragm | ||
- COO (Country of Origin):
- DE

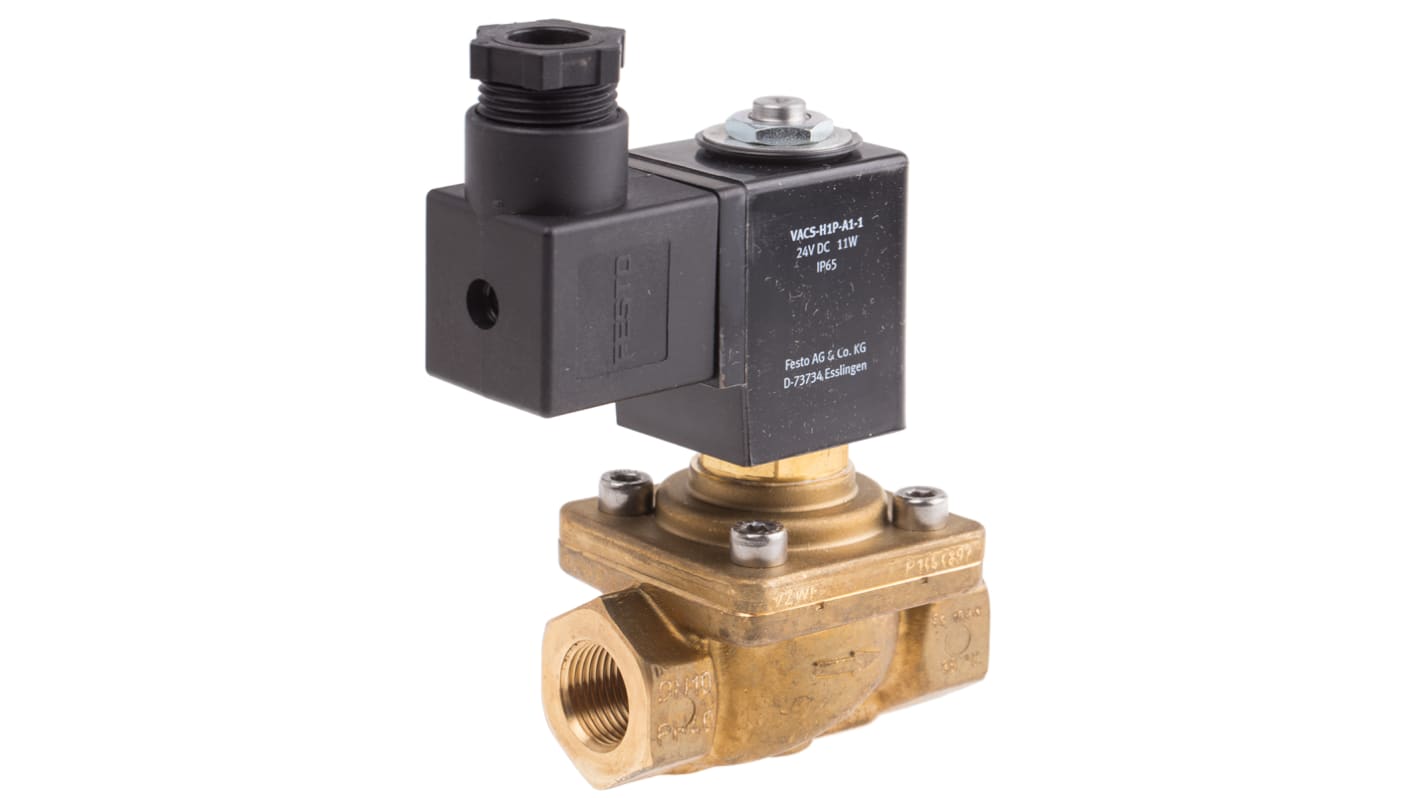

Festo Solenoid Valve, 0 to 10 Bar Operating Pressure Range, 2350L/min Maximum Flow Rate - VZWF-B-L-M22C-G38-135-1P4-10
Get a firm handle on airflow through your pneumatic system with this Festo solenoid valve. It opens when the 24V DC coil supplies an electric charge to the solenoid, causing a diaphragm to move away from the valve seat. The unit's snappy response times between 130 and 180ms mean it switches in a blink, so it keeps your system working efficiently. You can mount it without specialist tools thanks to its simple inline installation method.
Features & Benefits
• Achieves flow rates up to 2,350L/min, so it's a suitable choice for demanding applications
• Works with media including compressed air, inert gases and water, so it's a versatile option
• Industry-standard G3/8 thread size for easy compatibility with air-powered systems
• Durable cast brass body shrugs off wear and tear in harsh settings for a long service life
• Works with media including compressed air, inert gases and water, so it's a versatile option
• Industry-standard G3/8 thread size for easy compatibility with air-powered systems
• Durable cast brass body shrugs off wear and tear in harsh settings for a long service life
Applications
• Construction equipment
• Water treatment
• Manufacturing industry
• Water treatment
• Manufacturing industry
Can I use this product in harsh conditions?
Yes. This valve's IP65 rating indicates it stands up to heavy dust and low-pressure water jets, so it's suitable for use in challenging conditions.
