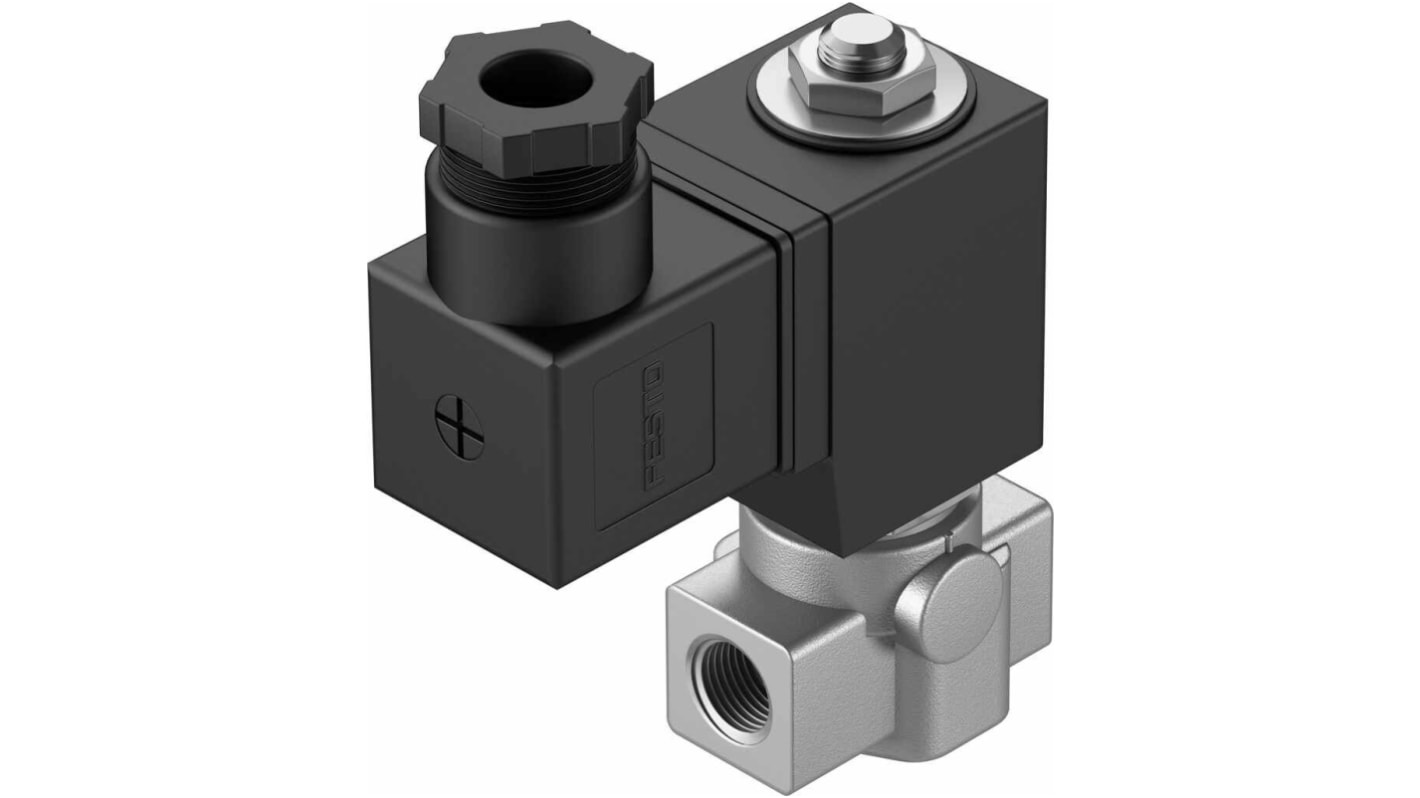

Festo 2/2 Pneumatic Solenoid Valve - Solenoid/Spring G 1/4 VZWD Series, 1491844
- RS Stock No.:
- 121-5798
- Mfr. Part No.:
- VZWD-L-M22C-M-G14-30-V-1P4-15
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£75.33
(exc. VAT)
£90.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £75.33 |
5 + | £72.32 |
*price indicative
- RS Stock No.:
- 121-5798
- Mfr. Part No.:
- VZWD-L-M22C-M-G14-30-V-1P4-15
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Function | 2/2 | |
Connection Port Thread | G 1/4 | |
Actuation Type | Solenoid/Spring | |
Manufacturer Series | VZWD | |
Mounting Style | Inline | |
Solenoid Fitted | Yes | |
Number of Ports | 2 | |
Body Material | Brass | |
Maximum Flow Rate | 210L/min | |
Minimum Operating Pressure | 0bar | |
Number of Positions | 2 | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Pressure | 15 bar | |
Thread Size | 1/4in | |
Special Features | Design Insensitive to Slight Contamination of the Media | |
Thread Standard | G | |
Select all | ||
---|---|---|
Brand Festo | ||
Function 2/2 | ||
Connection Port Thread G 1/4 | ||
Actuation Type Solenoid/Spring | ||
Manufacturer Series VZWD | ||
Mounting Style Inline | ||
Solenoid Fitted Yes | ||
Number of Ports 2 | ||
Body Material Brass | ||
Maximum Flow Rate 210L/min | ||
Minimum Operating Pressure 0bar | ||
Number of Positions 2 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Pressure 15 bar | ||
Thread Size 1/4in | ||
Special Features Design Insensitive to Slight Contamination of the Media | ||
Thread Standard G | ||
- COO (Country of Origin):
- DE
Festo Monostable Pneumatic Solenoid Valve, G 1/4 Valve, Closed - VZWD Series - VZWD-L-M22C-M-G14-30-V-1P4-R1
This pneumatic solenoid valve from Festo is a simple and versatile choice for pressurised systems. It periodically shuts off the flow of air, process gas or water and is ideal for use in high-pressure applications with low flow rates. The G 1/4 thread means it's compatible with most standard valves, while a mechanical spring makes it easy to reset the valve at any point. Two-port valves like this one are used to manage pneumatic actuators such as cylinders, turbines and diaphragms.
• IP (ingress protection) 65 rated, so it's sealed against dust and low-pressure water
• Stainless steel body is durable and non-corroding
• Inline mounting style means the valve mounts directly in the fluid lines for simple installation
• Built-in NC (normally closed) for safety
• Stainless steel body is durable and non-corroding
• Inline mounting style means the valve mounts directly in the fluid lines for simple installation
• Built-in NC (normally closed) for safety
Application Information
• High-pressure cleaning equipment
• Process automation
• Vacuum technology
• Process automation
• Vacuum technology
What is a direct-acting valve?
A direct-acting valve is triggered by the solenoid and doesn't need any difference in pressure between the inlet and outlet ports in order to operate. You can use it in negative pressure circuits.
When should I use a 'normally closed' valve?
Use a 'normally closed' solenoid valve in systems where it's safest to block flow in the event of malfunction.
