Festo 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/4 JMFH Series 48 V dc, 240 V ac, 10410
- RS Stock No.:
- 121-4380
- Mfr. Part No.:
- JMFH-5-1/4
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£224.40
(exc. VAT)
£269.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 7 unit(s) shipping from 27 October 2025
- Plus 31 unit(s) shipping from 27 October 2025
- Plus 11 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £224.40 |
| 5 + | £215.42 |
*price indicative
- RS Stock No.:
- 121-4380
- Mfr. Part No.:
- JMFH-5-1/4
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Function | 5/2 | |
| Connection Port Thread | G 1/4 | |
| Actuation Type | Solenoid/Pilot | |
| Manufacturer Series | JMFH | |
| Mounting Style | Through Hole | |
| Solenoid Voltage | 48 V dc, 240 V ac | |
| Solenoid Fitted | No | |
| Number of Ports | 5 | |
| Body Material | Aluminium | |
| Solenoid Power Consumption | 4.5W | |
| Minimum Operating Pressure | 1.5bar | |
| Maximum Operating Temperature | +40°C | |
| Thread Size | 1/4in | |
| Minimum Operating Temperature | -5°C | |
| Number of Positions | 2 | |
| Hazardous Area Certification | ATEX | |
| Maximum Operating Pressure | 8bar | |
| Thread Standard | G | |
Select all | ||
|---|---|---|
Brand Festo | ||
Function 5/2 | ||
Connection Port Thread G 1/4 | ||
Actuation Type Solenoid/Pilot | ||
Manufacturer Series JMFH | ||
Mounting Style Through Hole | ||
Solenoid Voltage 48 V dc, 240 V ac | ||
Solenoid Fitted No | ||
Number of Ports 5 | ||
Body Material Aluminium | ||
Solenoid Power Consumption 4.5W | ||
Minimum Operating Pressure 1.5bar | ||
Maximum Operating Temperature +40°C | ||
Thread Size 1/4in | ||
Minimum Operating Temperature -5°C | ||
Number of Positions 2 | ||
Hazardous Area Certification ATEX | ||
Maximum Operating Pressure 8bar | ||
Thread Standard G | ||
- COO (Country of Origin):
- CN

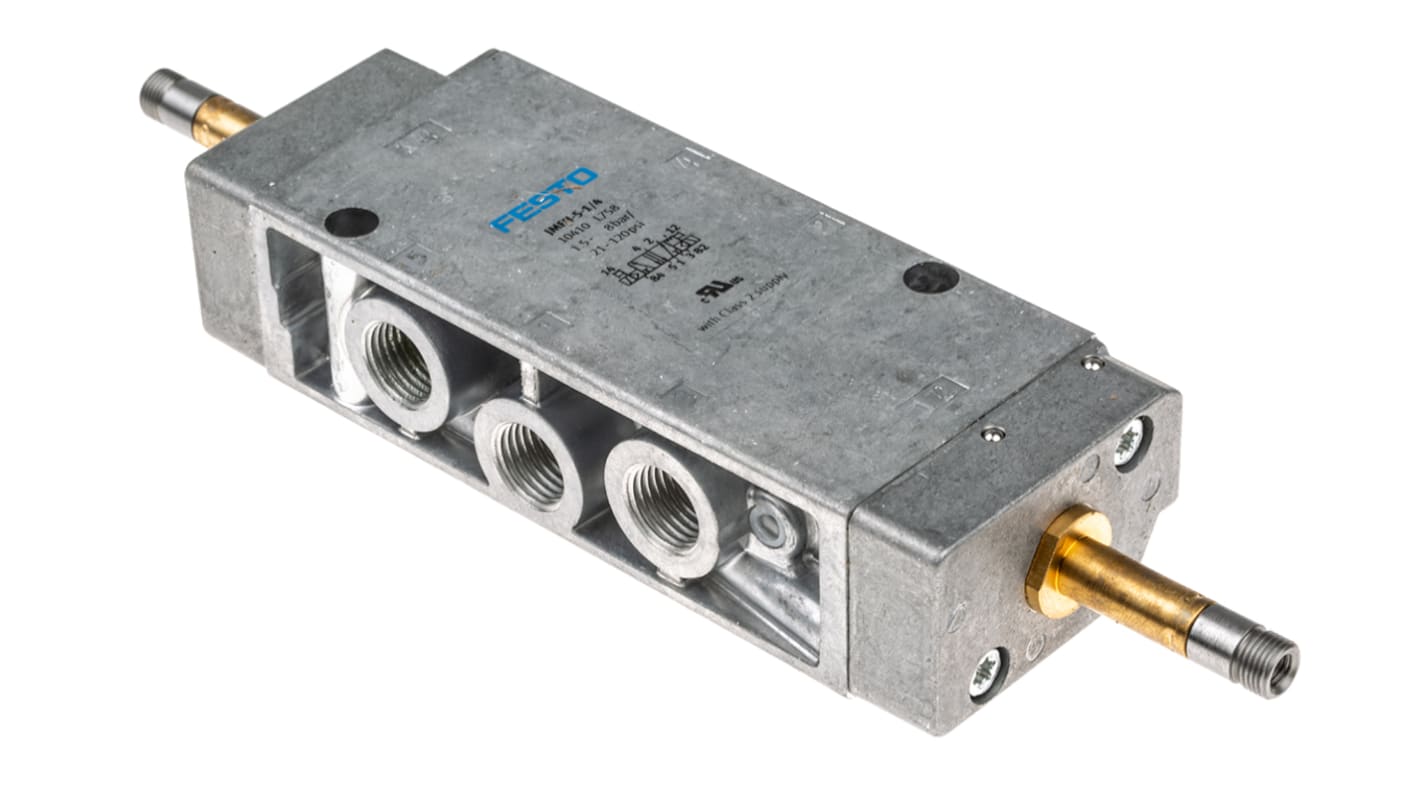

Festo JMFH Series Pneumatic Solenoid Valves, 1.5 to 8 Bar Operating Pressure, IP65 - JMFH-5-1/4, Numeric Part Number: 10410
This solenoid valve features a 5/2 double solenoid function with a nominal flow rate of 1100 l/min and operates within a pressure range of 0.15 to 0.8 MPa. It includes a poppet seat mechanism and has an IP65 rating, ensuring durability and reliability in various environments.
Features & Benefits
• 5/2 valve configuration for advanced control
• Low solenoid power consumption of 4.5W
• G 1/4 connection ports for easy integration
• ATEX certified for use in hazardous environments
• Ambient temperature range from -5°C to +40°C
• Optional manual override for emergency use
• Low solenoid power consumption of 4.5W
• G 1/4 connection ports for easy integration
• ATEX certified for use in hazardous environments
• Ambient temperature range from -5°C to +40°C
• Optional manual override for emergency use
Applications
• Controls air flow in automation systems
• Mechanical applications needing precise pressure control
• Environments requiring robust safety measures
• Industrial automated machinery
• Systems needing soft sealing
• Mechanical applications needing precise pressure control
• Environments requiring robust safety measures
• Industrial automated machinery
• Systems needing soft sealing
What is the maximum switching frequency of this valve?
The maximum switching frequency is 25 Hz.
Is lubrication required for operation?
Lubrication is possible and often recommended for optimal performance.
