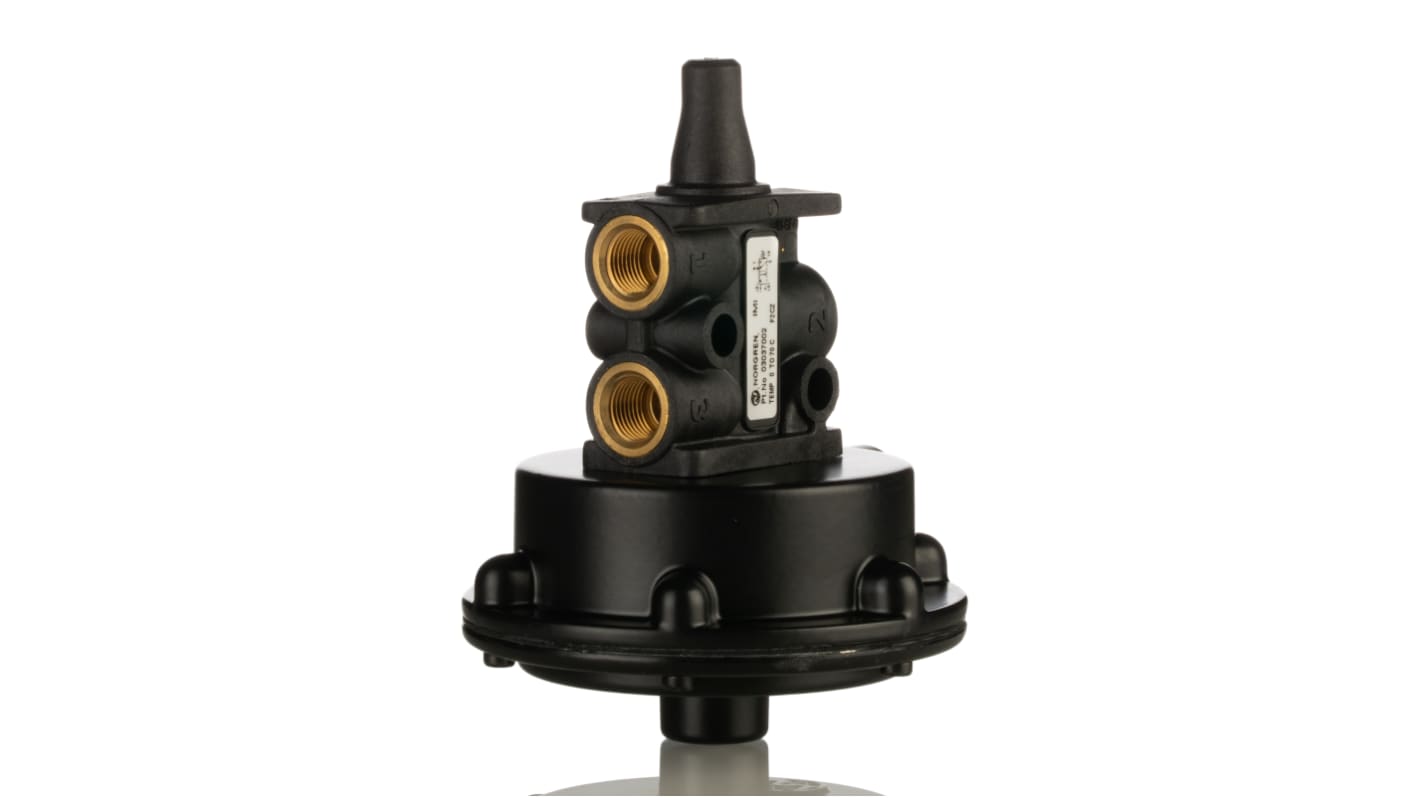

Norgren 3/2 Pneumatic Solenoid Valve - Pilot/Spring G 1/8 03 Series
- RS Stock No.:
- 724-273
- Mfr. Part No.:
- 03037002
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£136.14
(exc. VAT)
£163.37
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £136.14 |
5 + | £131.92 |
*price indicative
- RS Stock No.:
- 724-273
- Mfr. Part No.:
- 03037002
- Brand:
- Norgren
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Function | 3/2 | |
Connection Port Thread | G 1/8 | |
Actuation Type | Pilot/Spring | |
Manufacturer Series | 03 | |
Mounting Style | Through Hole | |
Number of Ports | 3 | |
Body Material | Die Cast Aluminium Alloy | |
Maximum Flow Rate | 335L/min | |
Minimum Operating Pressure | -0.93bar | |
Thread Size | 1/8in | |
Minimum Operating Temperature | 0°C | |
Maximum Operating Temperature | +80°C | |
Maximum Operating Pressure | 10bar | |
Number of Positions | 2 | |
Configuration | 2-Position, 3 Port | |
Thread Standard | G | |
Select all | ||
---|---|---|
Brand Norgren | ||
Function 3/2 | ||
Connection Port Thread G 1/8 | ||
Actuation Type Pilot/Spring | ||
Manufacturer Series 03 | ||
Mounting Style Through Hole | ||
Number of Ports 3 | ||
Body Material Die Cast Aluminium Alloy | ||
Maximum Flow Rate 335L/min | ||
Minimum Operating Pressure -0.93bar | ||
Thread Size 1/8in | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +80°C | ||
Maximum Operating Pressure 10bar | ||
Number of Positions 2 | ||
Configuration 2-Position, 3 Port | ||
Thread Standard G | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
IMI Norgren Pneumatic Solenoid Valve, -0.93 to 10 Bar Operating Pressure, G1/8 Thread - 03 Series - 03037002
Regulate the movement of air, gas or liquid in your pressurised system with this pneumatic solenoid valve from IMI Norgren. It utilises both compressed air and electromagnetic forces to open and close, stopping or starting the flow of media. The maximum flow rate the valve can sustain is 335 litres per minute, which is enough to support high-pressure use. It has 3/2 functionality, meaning there are three ports with two positions for expelling or receiving gas or liquid.
Features & Benefits
• -0.93 to 10 bar operating pressure range for use with low-pressure and high-pressure applications
• Operating temperature range between 0°C and +70°C for use in extreme environments
• G1/8 threaded end tightens in place to keep the valve reliably secured
• Die-cast aluminium material to protect against impact
• Operating temperature range between 0°C and +70°C for use in extreme environments
• G1/8 threaded end tightens in place to keep the valve reliably secured
• Die-cast aluminium material to protect against impact
Applications
• Factory automation
• Food production
• Bottling systems
• Chemical plants
• Medical facilities
• Food production
• Bottling systems
• Chemical plants
• Medical facilities
What mounting style does this pneumatic solenoid valve have?
This pneumatic solenoid valve has a through-hole mounting style, so it's straightforward to install and you can be sure of a secure attachment, even in vibrating systems.
