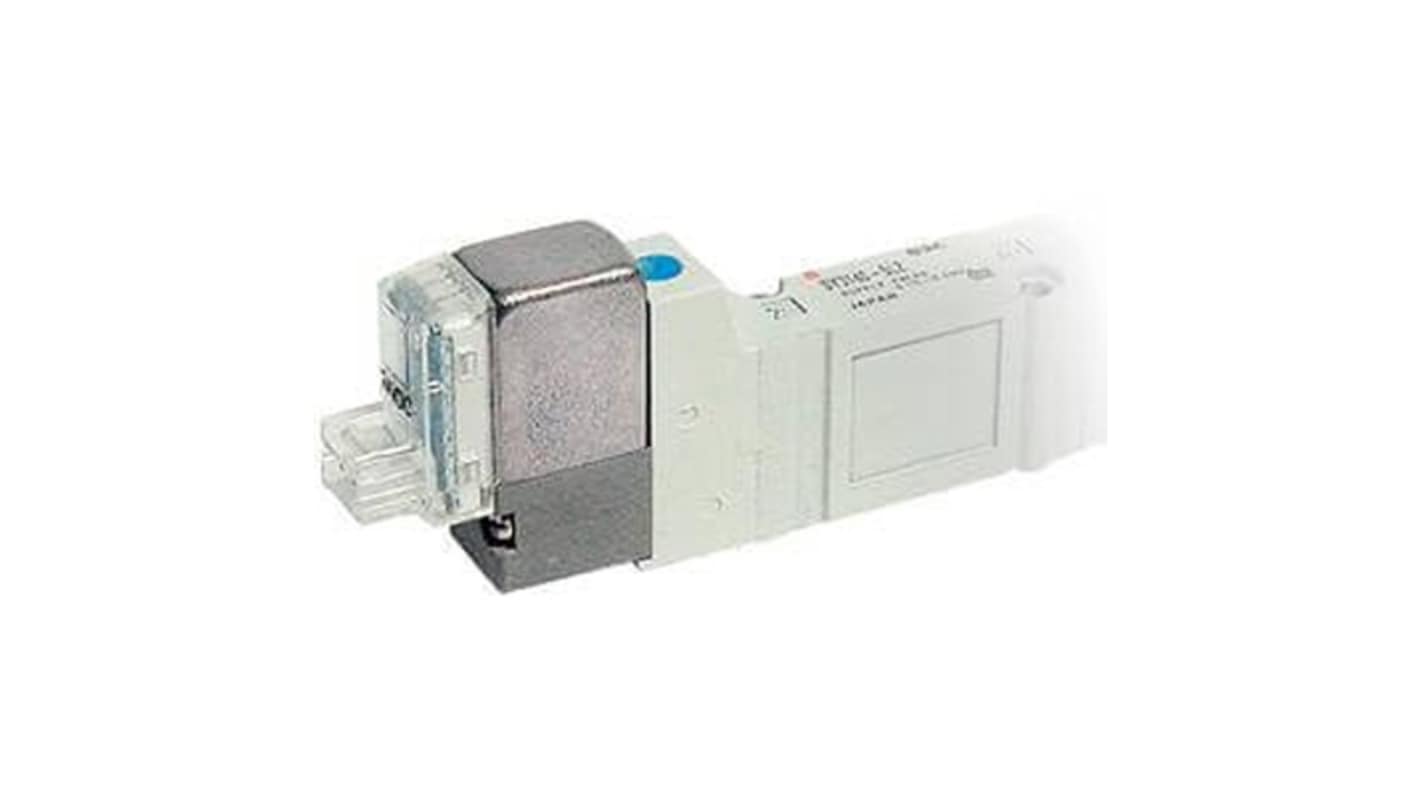

SMC Pneumatic Solenoid Valve - 3 Position Pressure Centre Solenoid G SY7000 Series 24V dc
- RS Stock No.:
- 362-791
- Mfr. Part No.:
- SY7520-5DZ-02F-Q
- Brand:
- SMC
Subtotal (1 unit)*
£98.16
(exc. VAT)
£117.79
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £98.16 |
*price indicative
- RS Stock No.:
- 362-791
- Mfr. Part No.:
- SY7520-5DZ-02F-Q
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Solenoid Valve | |
| Port Size | 1/4 in | |
| Port Type | Type G | |
| Connection Thread Standard | G | |
| Actuation Type | Solenoid | |
| Series | SY7000 | |
| Seal Material | Halogenated Nitrile Rubber | |
| Voltage | 24V dc | |
| Mount Type | Body Ported, Direct | |
| Number of Ports | 5 | |
| Maximum Operating Pressure | 0.7 Mpa | |
| Body Material | Die Cast Aluminium | |
| Port Gender | Female | |
| Minimum Pilot Pressure | -100kPa | |
| Maximum Pilot Pressure | 0.7MPa | |
| Minimum Operating Temperature | -10°C | |
| Mount Pattern | Body Ported | |
| Maximum Flow Rate | 2527L/min | |
| Valve Function | 3 Position Pressure Centre | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | CE-compliant | |
| Hazardous Area Certification | NO | |
| Electrical Connection Type | DIN Terminal | |
| Number of Positions | 3 | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Solenoid Valve | ||
Port Size 1/4 in | ||
Port Type Type G | ||
Connection Thread Standard G | ||
Actuation Type Solenoid | ||
Series SY7000 | ||
Seal Material Halogenated Nitrile Rubber | ||
Voltage 24V dc | ||
Mount Type Body Ported, Direct | ||
Number of Ports 5 | ||
Maximum Operating Pressure 0.7 Mpa | ||
Body Material Die Cast Aluminium | ||
Port Gender Female | ||
Minimum Pilot Pressure -100kPa | ||
Maximum Pilot Pressure 0.7MPa | ||
Minimum Operating Temperature -10°C | ||
Mount Pattern Body Ported | ||
Maximum Flow Rate 2527L/min | ||
Valve Function 3 Position Pressure Centre | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals CE-compliant | ||
Hazardous Area Certification NO | ||
Electrical Connection Type DIN Terminal | ||
Number of Positions 3 | ||
- COO (Country of Origin):
- JP
The SMC solenoid valve features the redesigned SY series, offering improved product performance and reliability. It maintains the same valve width as its predecessors but increases flow by up to 80%, allowing for a more compact design. The valve also includes a built-in strainer in the pilot valve, preventing issues caused by foreign matter. Additionally, the use of H-NBR seal material for the main valve and seals enhances ozone resistance, ensuring better durability and longer service life, even in demanding environments.
Saves energy and space
IP67 enclosure for standard specifications
M12 waterproof connector type ensures easy attaching and detaching
