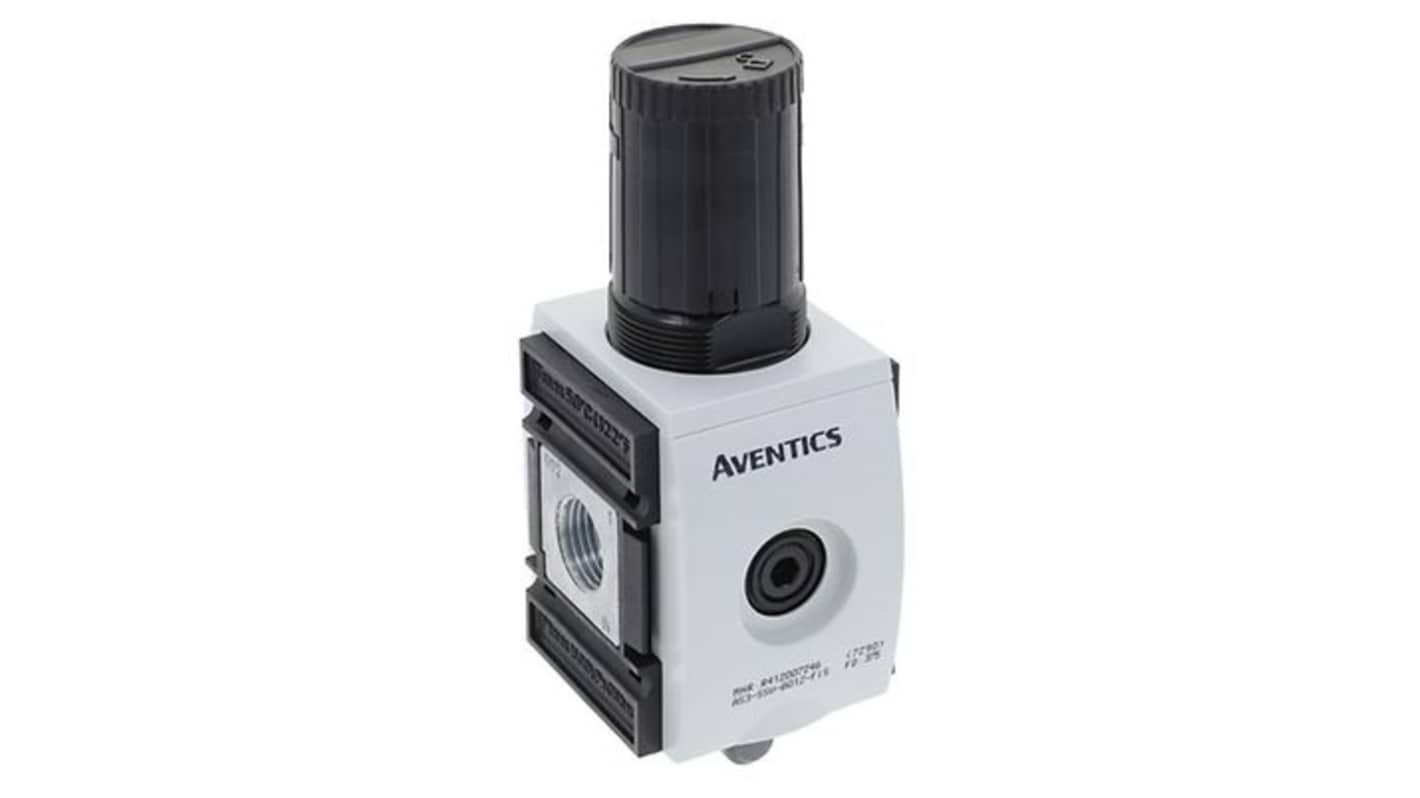

EMERSON – AVENTICS Pneumatic Soft Start Valve, 4500 L/min 1/2 in G Compressed Air 16 bar 3/8 in G
- RS Stock No.:
- 299-368
- Mfr. Part No.:
- R412007246
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£255.96
(exc. VAT)
£307.15
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £255.96 |
*price indicative
- RS Stock No.:
- 299-368
- Mfr. Part No.:
- R412007246
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Product Type | Pneumatic Soft Start Valve | |
| Series | AS3 | |
| Inlet Connection Size | 1/2 in G | |
| Outlet Connection Type | Compression | |
| Inlet Connection Type | Compressed Air | |
| Sub Type | Poppet Valve | |
| Flow Rate | 4500L/min | |
| Outlet Connection Size | 3/8 in G | |
| Minimum Operating Pressure | 2.5bar | |
| Maximum Operating Pressure | 16 bar | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Product Type Pneumatic Soft Start Valve | ||
Series AS3 | ||
Inlet Connection Size 1/2 in G | ||
Outlet Connection Type Compression | ||
Inlet Connection Type Compressed Air | ||
Sub Type Poppet Valve | ||
Flow Rate 4500L/min | ||
Outlet Connection Size 3/8 in G | ||
Minimum Operating Pressure 2.5bar | ||
Maximum Operating Pressure 16 bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals No | ||
RoHS Status: Exempt
The Aventics Filling valve, mechanically adjustable, series AS3-SSV is a modular and versatile maintenance unit for universal application. This series offers compact dimensions, high efficiency, light weight, and ease of use. The Series AS guarantees reliability, safety, and efficiency with simplified assembly and maintenance efforts.
Minimum working pressure 2.5 bar
Maximum working pressure 16 bar
Sealing principle Soft seal
Type Poppet valve
