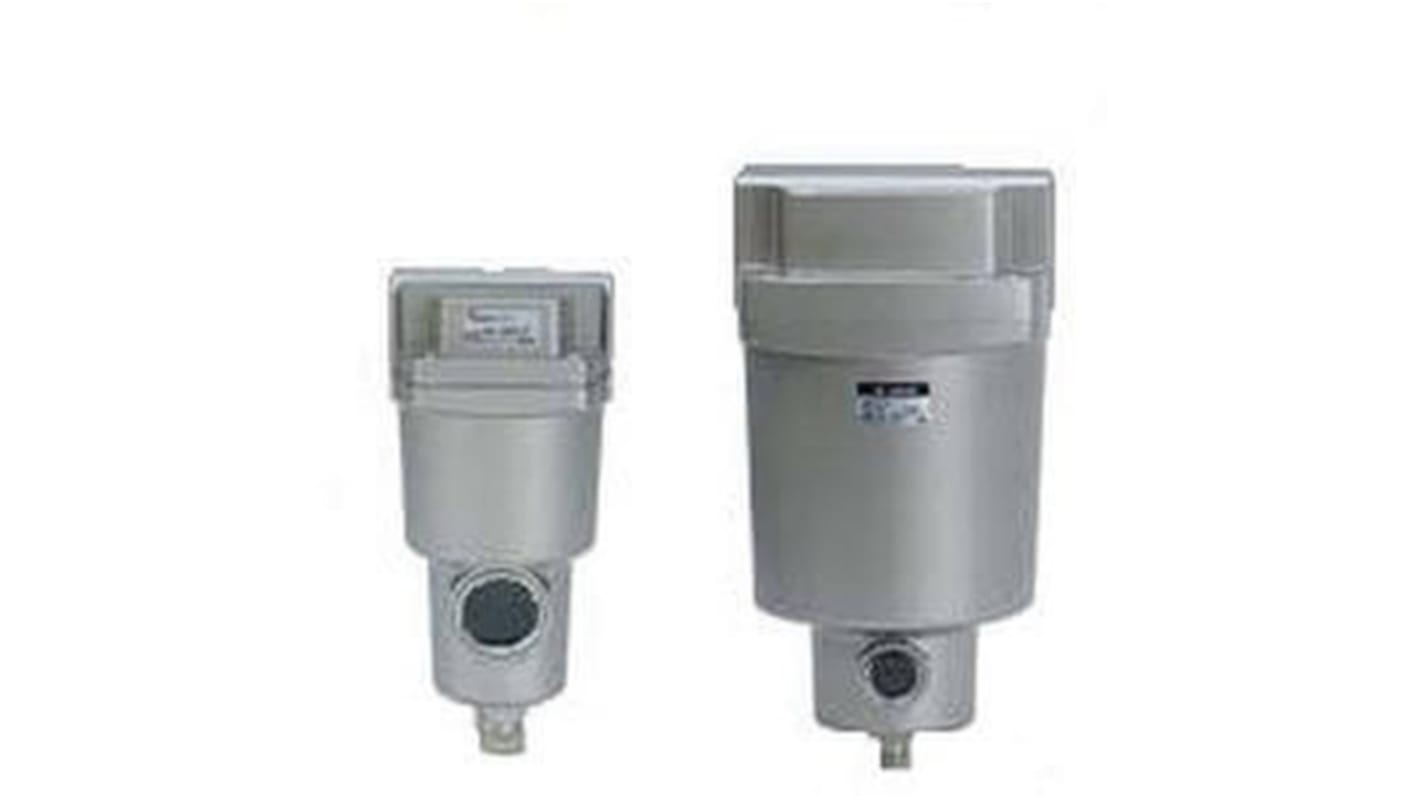

SMC G 1/8 Mist Separator, 0.03 μm filtration, 0.05 MPa to 1 Mpa
- RS Stock No.:
- 234-4147
- Mfr. Part No.:
- AM150C-F01
- Brand:
- SMC
Subtotal (1 unit)*
£53.17
(exc. VAT)
£63.80
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £53.17 |
*price indicative
- RS Stock No.:
- 234-4147
- Mfr. Part No.:
- AM150C-F01
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Mist Separator | |
| Port Size | G 1/8 | |
| Sub Type | Mist Separator | |
| Connection Thread Standard | G | |
| Filtration Size | 0.03μm | |
| Series | AM | |
| Seal Material | Nitrile Rubber (NBR) | |
| Maximum Operating Pressure | 1 Mpa | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Minimum Operating Pressure | 0.05MPa | |
| Standards/Approvals | No | |
| Overall Width | 63mm | |
| Overall Height | 158mm | |
| Bowl Material | Polycarbonate | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Mist Separator | ||
Port Size G 1/8 | ||
Sub Type Mist Separator | ||
Connection Thread Standard G | ||
Filtration Size 0.03μm | ||
Series AM | ||
Seal Material Nitrile Rubber (NBR) | ||
Maximum Operating Pressure 1 Mpa | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Minimum Operating Pressure 0.05MPa | ||
Standards/Approvals No | ||
Overall Width 63mm | ||
Overall Height 158mm | ||
Bowl Material Polycarbonate | ||
- COO (Country of Origin):
- JP
The SMC series AM mist separators has nominal filtration rating 0.1 μm or 0.3 μm and rated flow from 300 to 14500 l/min (ANR). Connection size 1/8 to 2.
Nominal filtration rating 0.3 μm
Rated flow from 300 to 12000 l/min (ANR)
Connection size 1/8 to 2
Filter element service indicator option
