SMC 1100 L/min G 1/2 Mist Separator, 0.3μm filtration, 0.1MPa to 1 MPa, 1.5 MPa
- RS Stock No.:
- 783-2053
- Mfr. Part No.:
- AFM40-F04D-A
- Brand:
- SMC

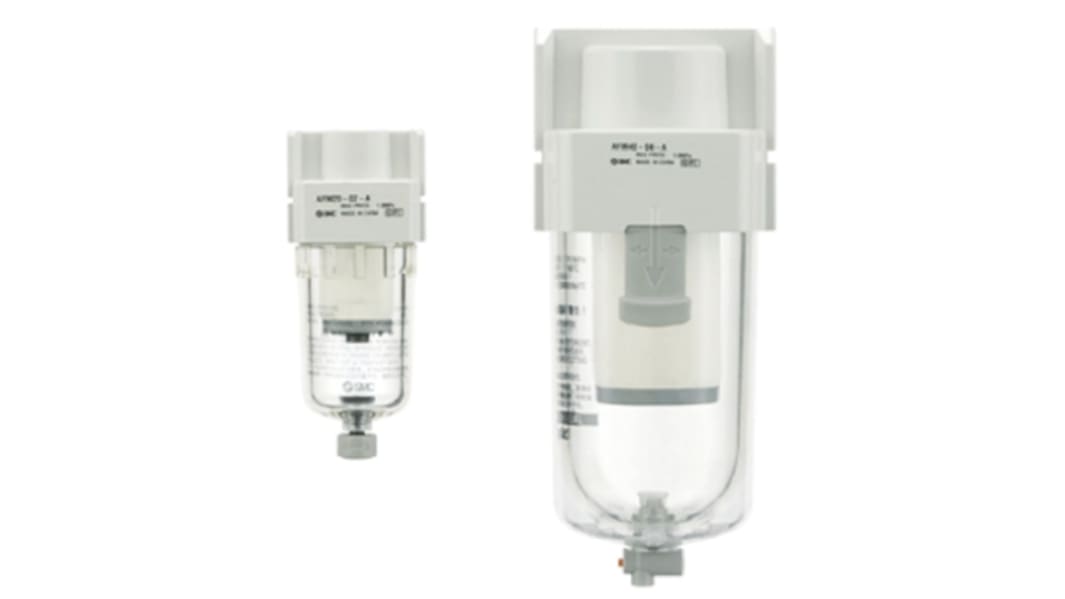

Image representative of range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£96.26
(exc. VAT)
£115.51
(inc. VAT)
- RS Stock No.:
- 783-2053
- Mfr. Part No.:
- AFM40-F04D-A
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Port Connection | G 1/2 | |
| Typical Flow | 1100 L/min | |
| Filtration Size | 0.3µm | |
| Manufacturer Series | AFM | |
| Typical Flow Rated At | 0.7MPa | |
| Port Connection Thread Size | 1/2 in | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | +60°C | |
| Maximum Operating Pressure | 1 MPa, 1.5 MPa | |
| Port Connection Thread Standard | G | |
| Minimum Operating Pressure | 0.1MPa | |
Select all | ||
|---|---|---|
Brand SMC | ||
Port Connection G 1/2 | ||
Typical Flow 1100 L/min | ||
Filtration Size 0.3µm | ||
Manufacturer Series AFM | ||
Typical Flow Rated At 0.7MPa | ||
Port Connection Thread Size 1/2 in | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature +60°C | ||
Maximum Operating Pressure 1 MPa, 1.5 MPa | ||
Port Connection Thread Standard G | ||
Minimum Operating Pressure 0.1MPa | ||
- COO (Country of Origin):
- CN
Modular Mist Separator AFM20 - AFM40
Modular mist separators from SMC are lightweight and easy to install, minimising the time spent on installation. The bowl guards in the AFM series are clear enabling users to view from any angle.
Lightweight
Interchangeable for mounting
Interchangeable for mounting
Note
Transparent bowl is for body size 30 and over
Filters, Lubricators and Separators
High flow capacity filters, lubricators and separators with polycarbonate bowls. All have an ambient and media temperature range of 5 - 60°C and a proof pressure of 15 bar.
