- RS Stock No.:
- 175-2127
- Mfr. Part No.:
- NECU-S-M12G3-HX
- Brand:
- Festo
Available to back order for despatch 14/06/2024, delivery within 2 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£15.39
(exc. VAT)
£18.47
(inc. VAT)
Units | Per unit |
1 + | £15.39 |
- RS Stock No.:
- 175-2127
- Mfr. Part No.:
- NECU-S-M12G3-HX
- Brand:
- Festo
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details

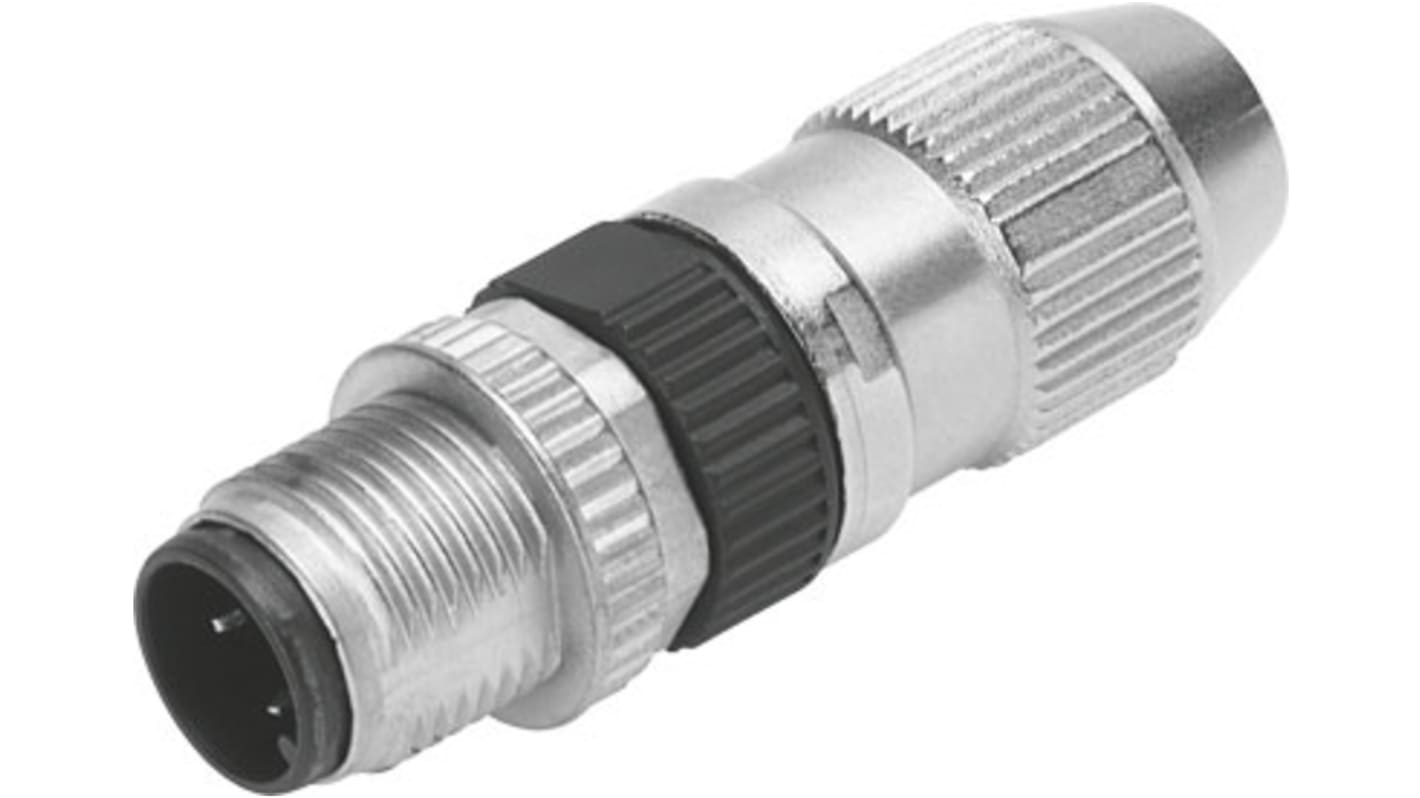

Festo NECU Series Plug / Socket Connectors
Features and Benefits
Cable diameter 6 mm to 8 mm
Terminal cross-section 0.14 mm² to 0.75 mm²
IP67 Protection
Ambient temperature -25°C to +85°C
CE mark to EU directive low voltage devices
RoHS compliant
Corrosion resistance class 1 (low corrosion stress)
Zinc diecast, nickel plated housing
Terminal cross-section 0.14 mm² to 0.75 mm²
IP67 Protection
Ambient temperature -25°C to +85°C
CE mark to EU directive low voltage devices
RoHS compliant
Corrosion resistance class 1 (low corrosion stress)
Zinc diecast, nickel plated housing
Straight Socket
Stock no. 136-6487, M12x1, 5-pin, screw terminal
Straight Plug
Festo Plug Connectors
The Festo plug connectors are the NECU series for cable diameter of 2.9mm to 5.1mm. The plugs come with a terminal cross-sectional area of 0.14mm² to 0.75mm². The range of operating voltage for both AC and DC is 0-32V and the acceptable current load at 400C is 4A. This plug is available in zinc die-casting and nickel plated material housing.
Features and Benefits
Simple connection using clamping technology
Ambient temperature ranges between -25°C and 85°C
Corrosion resistance class 1 (low corrosion stress)
Ambient temperature ranges between -25°C and 85°C
Corrosion resistance class 1 (low corrosion stress)
Applications
Self-Assembly
Certifications
UL approved
CE certified
IP67 rated
CE certified
IP67 rated
Specifications
Attribute | Value |
---|---|
Accessory Type | Adapter |
Manufacturer Series | NECU |
For Use With | Self-Assembly |
- RS Stock No.:
- 175-2127
- Mfr. Part No.:
- NECU-S-M12G3-HX
- Brand:
- Festo
