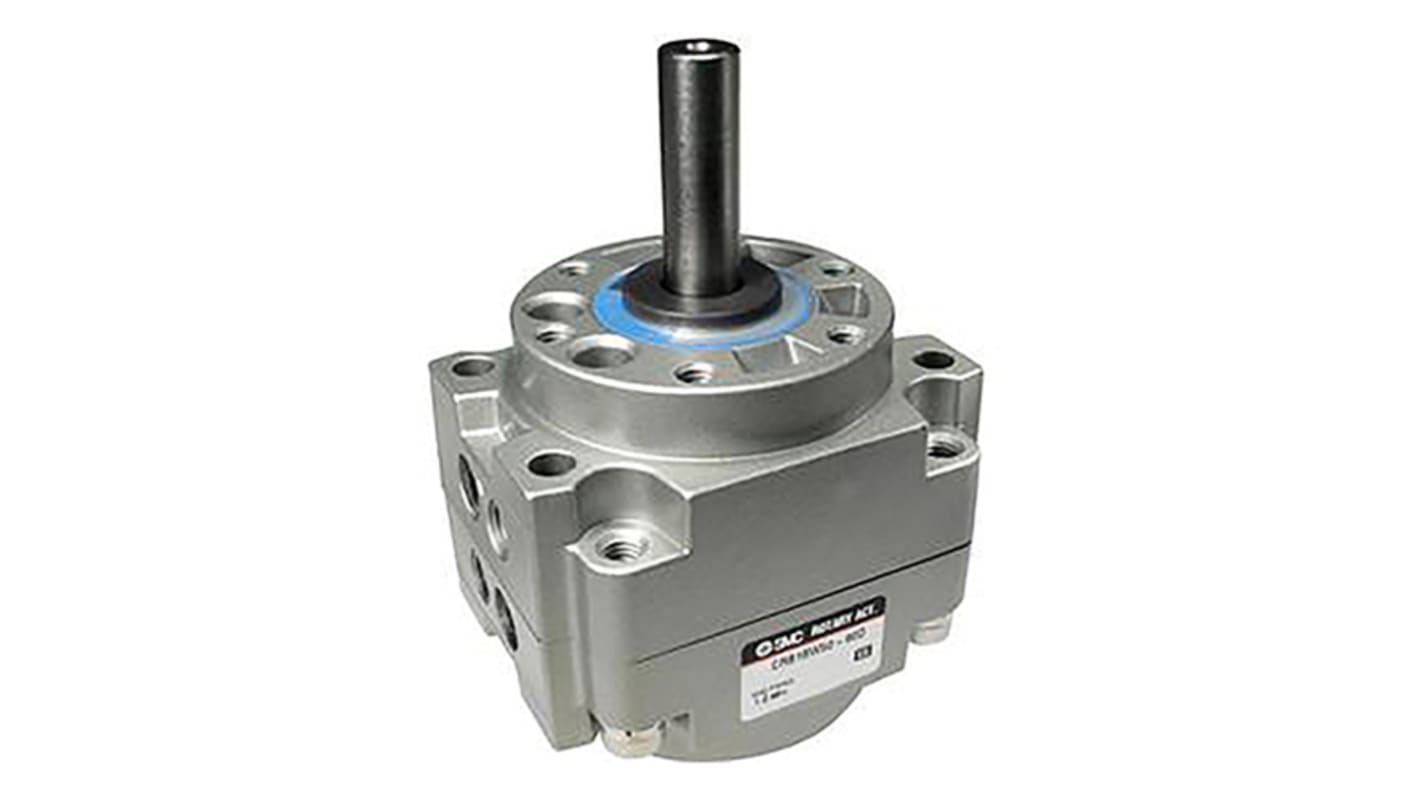

SMC CRB1 Series 1 MPa Double Action Pneumatic Rotary Actuator, 90° Rotary Angle, 50mm Bore
- RS Stock No.:
- 849-7042
- Mfr. Part No.:
- CRB1BW50-90D
- Brand:
- SMC
Subtotal (1 unit)*
£229.32
(exc. VAT)
£275.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 999,999,997 unit(s) shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £229.32 |
*price indicative
- RS Stock No.:
- 849-7042
- Mfr. Part No.:
- CRB1BW50-90D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Rotary Angle | 90° | |
Action | Double | |
Bore | 50mm | |
Manufacturer Series | CRB1 | |
Maximum Input Pressure | 1MPa | |
Maximum Operating Pressure | 1 MPa | |
Absolute Maximum Pressure | 1.5MPa | |
Cushioning Type | Rubber Bumper | |
Port Connection | R 1/8 | |
Weight | 906g | |
Select all | ||
---|---|---|
Brand SMC | ||
Rotary Angle 90° | ||
Action Double | ||
Bore 50mm | ||
Manufacturer Series CRB1 | ||
Maximum Input Pressure 1MPa | ||
Maximum Operating Pressure 1 MPa | ||
Absolute Maximum Pressure 1.5MPa | ||
Cushioning Type Rubber Bumper | ||
Port Connection R 1/8 | ||
Weight 906g | ||
- COO (Country of Origin):
- JP
Rotary Cylinders CRB Heavy Duty Series
SMC CRB series of heavy duty series of cylinders provide the user with a reliable & durable solution.
Range of vane type rotary actuators
50 mm diameter piston.
Choice of two rotation angles: 90°and 180°
Increased reliability and durability thanks to bearings which support thrust and radial loads
Direct mounting of the rotary actuator
Slide and axial port options available
50 mm diameter piston.
Choice of two rotation angles: 90°and 180°
Increased reliability and durability thanks to bearings which support thrust and radial loads
Direct mounting of the rotary actuator
Slide and axial port options available
Vane Types 10-80mm Diameter
A range of compact, lightweight rotary actuators, ideal for turning small loads in confined spaces.
