Festo DFPD Series 8 bar Double Action Pneumatic Rotary Actuator, 120 Rotary Angle, 240mm Bore
- RS Stock No.:
- 280-8190
- Mfr. Part No.:
- DFPD-240-RP-120-RD-F0710
- Brand:
- Festo
Subtotal (1 unit)*
£677.07
(exc. VAT)
£812.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £677.07 |
*price indicative
- RS Stock No.:
- 280-8190
- Mfr. Part No.:
- DFPD-240-RP-120-RD-F0710
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Rotary Angle | 120 | |
Action | Double | |
Bore | 240mm | |
Manufacturer Series | DFPD | |
Maximum Operating Pressure | 8 bar | |
Absolute Maximum Pressure | 24bar | |
Cushioning Type | Not Cushioned | |
Port Connection | G 1/4 | |
Weight | 10.9kg | |
Series | DFPD | |
Size Type | Standard | |
Model Number | 8065344 | |
Select all | ||
---|---|---|
Brand Festo | ||
Rotary Angle 120 | ||
Action Double | ||
Bore 240mm | ||
Manufacturer Series DFPD | ||
Maximum Operating Pressure 8 bar | ||
Absolute Maximum Pressure 24bar | ||
Cushioning Type Not Cushioned | ||
Port Connection G 1/4 | ||
Weight 10.9kg | ||
Series DFPD | ||
Size Type Standard | ||
Model Number 8065344 | ||
- COO (Country of Origin):
- IT

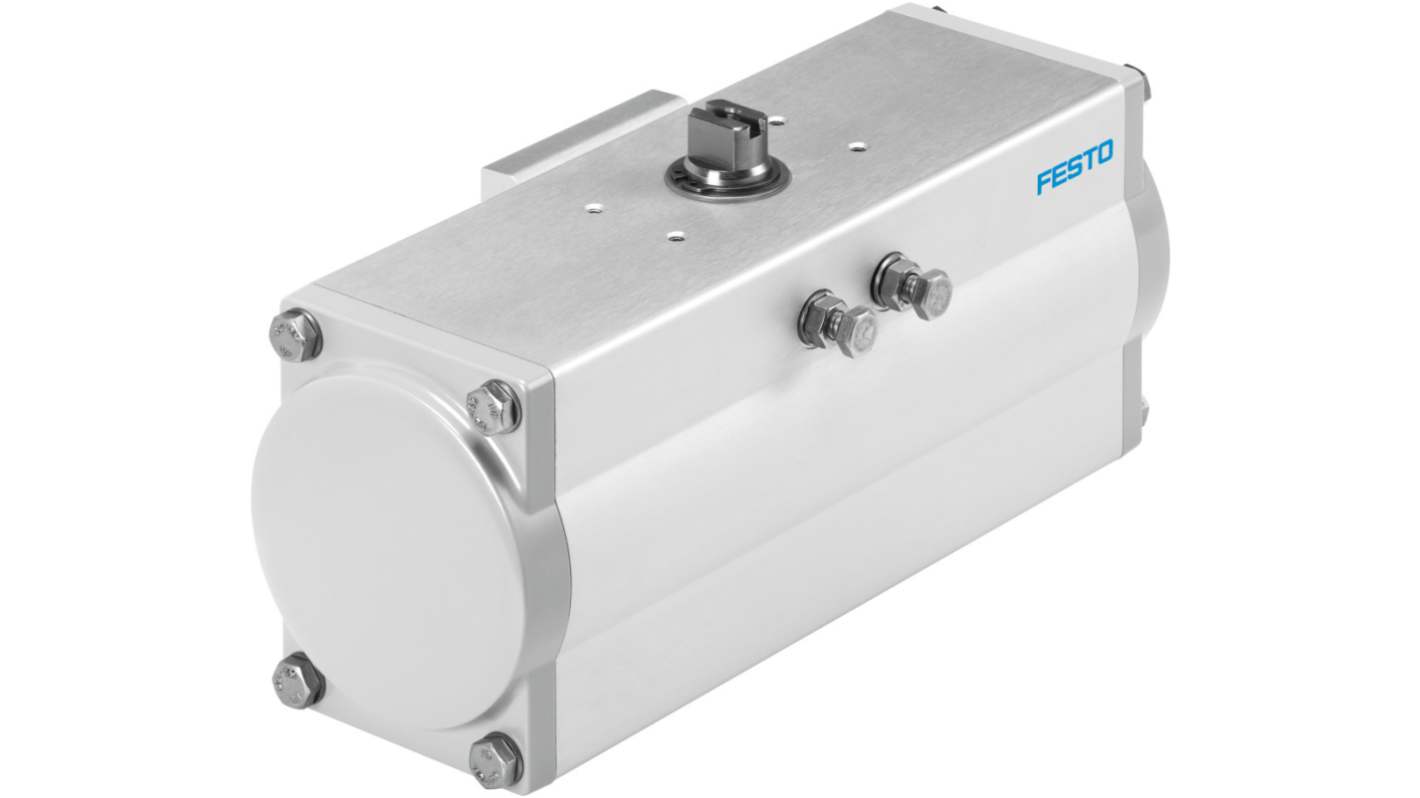

Festo DFPD Series Pneumatic Rotary Actuator, 120° Rotary Angle, 240mm Bore - DFPD-240-RP-120-RD-F0710, Numeric Part Number: 8065344
This pneumatic rotary actuator is designed for precise movement and effective performance in various industrial applications. Featuring a 240mm bore and capable of a 120-degree swivel angle, it operates efficiently under a maximum pressure of 8 bar. This actuator ensures robust functionality and reliability in demanding environments.
Features & Benefits
• Double-acting operation enhances efficiency and reliability
• Rack and pinion design offers a smooth rotation
• End-position adjustment allows for fine-tuning of performance
• Suitable for maritime and explosion-sensitive usage
• Low corrosion stress materials ensure durability
• Rack and pinion design offers a smooth rotation
• End-position adjustment allows for fine-tuning of performance
• Suitable for maritime and explosion-sensitive usage
• Low corrosion stress materials ensure durability
Applications
• Used in automated production lines for precise control
• Suitable for valve actuation in hazardous locations
• Integrates seamlessly with positioners and sensors
• Ideal for industrial processes requiring high-performance rotation
• Utilised in environments needing compliance with explosion protection standards
• Suitable for valve actuation in hazardous locations
• Integrates seamlessly with positioners and sensors
• Ideal for industrial processes requiring high-performance rotation
• Utilised in environments needing compliance with explosion protection standards
What is the compatibility of this actuator with other systems?
It conforms to ISO 5211 for fitting connections and VDI/VDE 3845 for valve connections, making it compatible with various standard systems in industrial automation.
How does the end-position adjustment feature improve functionality?
This feature allows for adjustments of up to ±5 degrees at both 0° and nominal swivel angles, facilitating precise control and positioning in complex applications.
What materials are used in the construction of this actuator, and how do they impact performance?
The actuator is crafted from anodised aluminium alloys and high-alloy stainless steel, providing low corrosion stress and ensuring reliable operation in various environmental conditions.
What is the significance of having adjustable torque levels?
With a nominal torque of 234.3 Nm, it allows for adjusting the operational torque to stay within the permissible limits, preventing excessive stress on mounting fittings.
