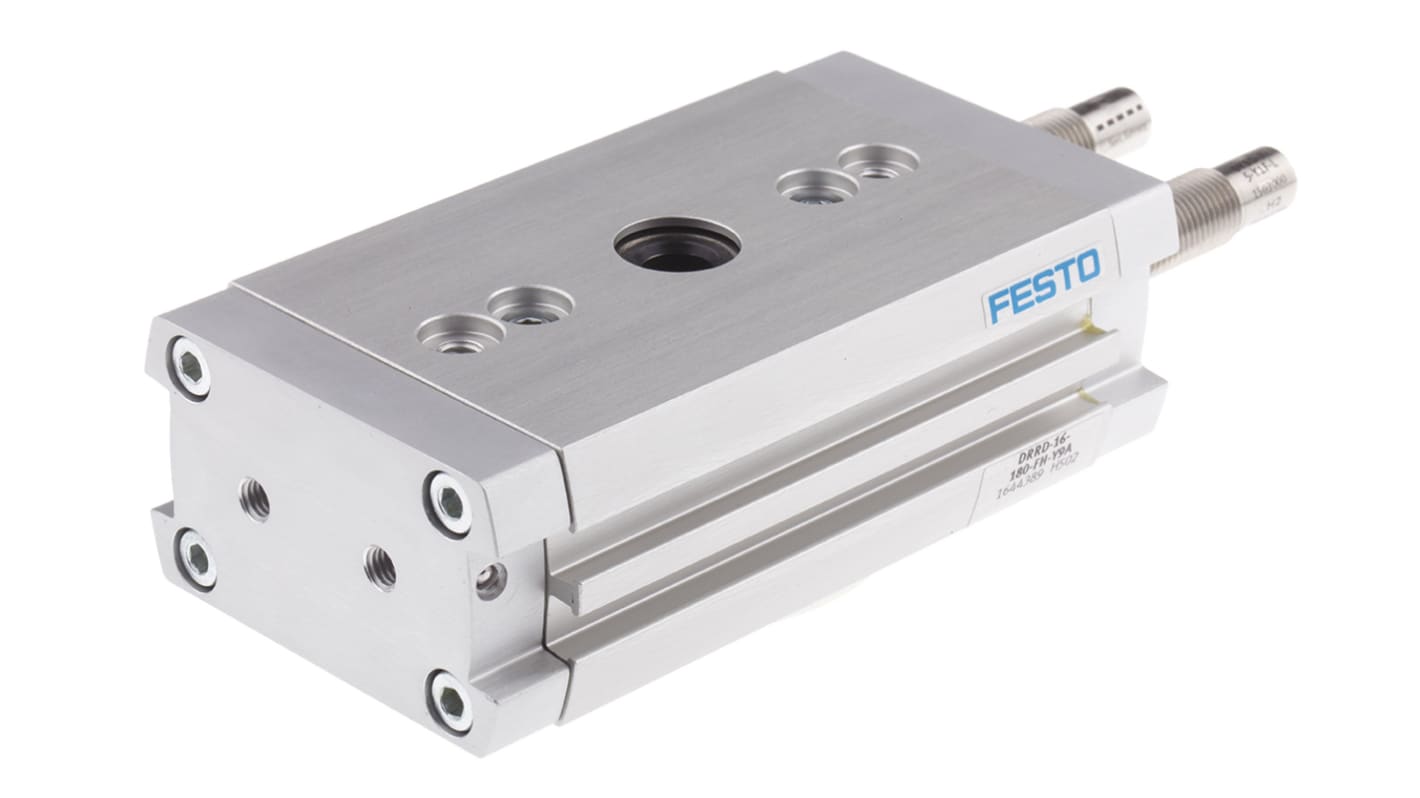

Festo DRRD Series 10 bar Double Action Pneumatic Rotary Actuator, 180° Rotary Angle, 16mm Bore
- RS Stock No.:
- 121-5352
- Mfr. Part No.:
- DRRD-16-180-FH-Y9A
- Brand:
- Festo
Subtotal (1 unit)*
£732.16
(exc. VAT)
£878.59
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £732.16 |
*price indicative
- RS Stock No.:
- 121-5352
- Mfr. Part No.:
- DRRD-16-180-FH-Y9A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Rotary Angle | 180° | |
Action | Double | |
Bore | 16mm | |
Force at 7 bar | 1.6 Nm @ 6 bar | |
Manufacturer Series | DRRD | |
Maximum Input Pressure | 10bar | |
Maximum Operating Pressure | 10 bar | |
Cushioning Type | Hydraulic | |
Port Connection | M5 | |
Weight | 650g | |
Size Type | Standard | |
Series | DRRD | |
Model Number | 1644389 | |
Select all | ||
---|---|---|
Brand Festo | ||
Rotary Angle 180° | ||
Action Double | ||
Bore 16mm | ||
Force at 7 bar 1.6 Nm @ 6 bar | ||
Manufacturer Series DRRD | ||
Maximum Input Pressure 10bar | ||
Maximum Operating Pressure 10 bar | ||
Cushioning Type Hydraulic | ||
Port Connection M5 | ||
Weight 650g | ||
Size Type Standard | ||
Series DRRD | ||
Model Number 1644389 | ||
- COO (Country of Origin):
- DE
Festo Double Acting Rotary Actuator, 180° Swivel - DRRD Series - DRRD-16-180-FH-Y9A
To achieve a hassle-free turning or twisting motion in your automation system, turn to this semi-rotary actuator from Festo. It swivels up to 180° for all-around flexibility and can handle very heavy loads. Rack and pinion-based movement ensures low backlash and good dynamic response. A high-mass moment of inertia provides improved accuracy and productivity. Rated IP65, this unit can handle washdowns and is well-protected from dust and other particles. As part of Festo's comprehensive range of pneumatic drives, the actuator is designed and tested to deliver superior efficiency.
• Air-cushioning type
• Force of 1.6 Nm at 7 bar
• Maximum operating and input pressure of 10 bar
• M5 port connection
• Size of 16 mm
• Weight of 650 g
• Cushioning angle of 43°
• Lubricated operation possible
• Anodised wrought aluminium alloy material for compactness and durability
• Operating temperature range of -10°C to +60°C
• Force of 1.6 Nm at 7 bar
• Maximum operating and input pressure of 10 bar
• M5 port connection
• Size of 16 mm
• Weight of 650 g
• Cushioning angle of 43°
• Lubricated operation possible
• Anodised wrought aluminium alloy material for compactness and durability
• Operating temperature range of -10°C to +60°C
Range Information
• Festo's DRRD series is a core product range consisting of twin-piston semi-rotary drives
• The splash-proof design has an IP65 rating for resistance to dust and water
• Available in a wide choice of variants based on cushioning action, shaft position and placement of sensors
• The series offers high load capacity and high moment of inertia even at small sizes, improving equipment efficiency
• The splash-proof design has an IP65 rating for resistance to dust and water
• Available in a wide choice of variants based on cushioning action, shaft position and placement of sensors
• The series offers high load capacity and high moment of inertia even at small sizes, improving equipment efficiency
