SMC Double Acting Rodless Actuator 800mm Stroke, 25mm Bore

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
SMC Double Acting Rodless Actuator 800mm Stroke, 25mm Bore
RS Stock No.
873-2629

Each

£314.01

(exc. VAT)

£376.81

(inc. VAT)

RS Stock No.:
885-2297
Mfr. Part No.:
MY1B25TFG-800Z
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Stroke

800mm

Bore

25mm

Length

1.02m

Action

Double

Maximum Operating Pressure

0.8 MPa

Absolute Maximum Pressure

1.2MPa

Force at 7 bar

343N

Cushioning Type

Air

Port Connection

Rc 1/8

Dimensions

1020 x 53 x 54mm

Weight

1.3kg

Width

53mm

Height

54mm

Size Type

Standard

Non Compliant

COO (Country of Origin):
JP

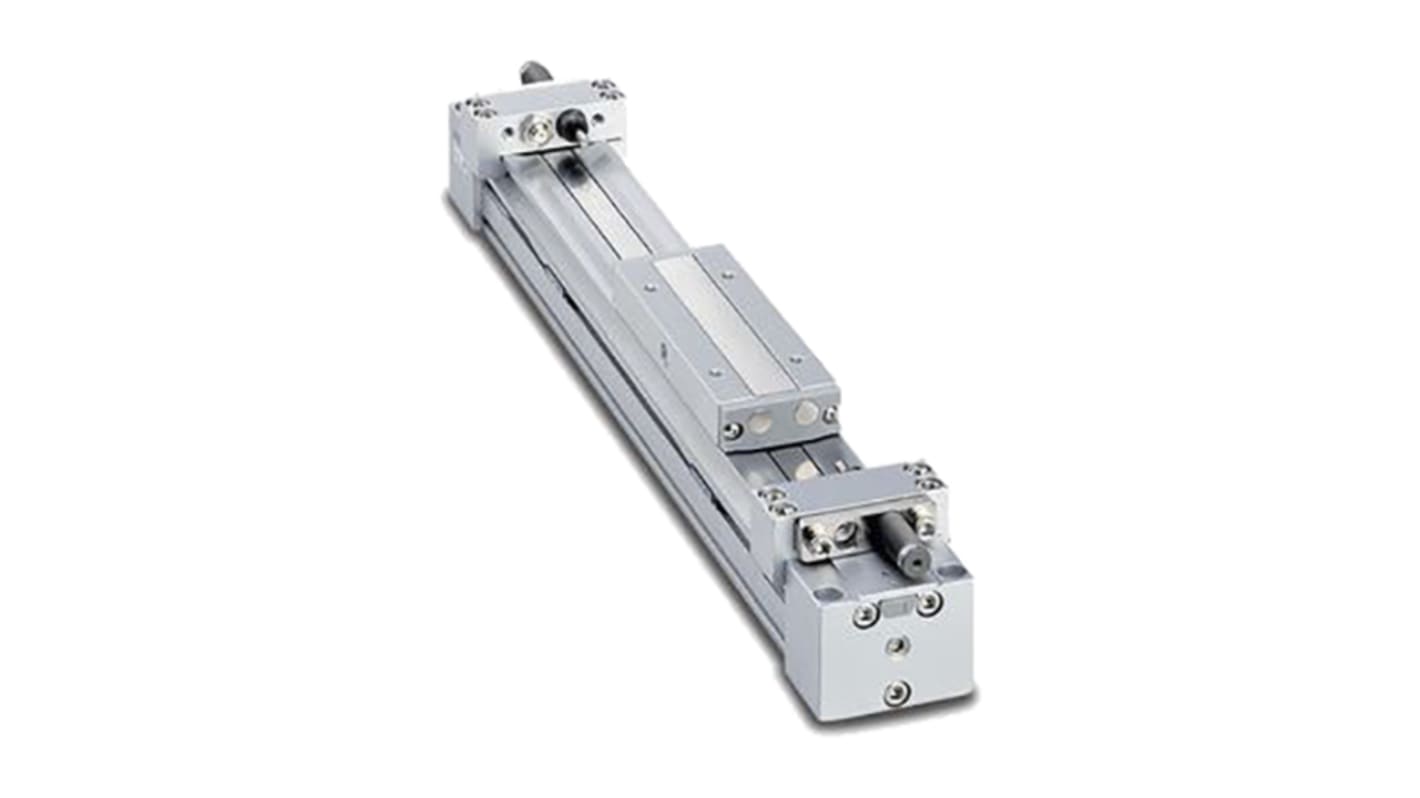

MY1B-Z Basic Rodless Cylinder


Double acting mechanically jointed rodless cylinder with air cushioning and a magnetic piston as standard. The MY1b-Z provides a simple, compact, reliable method for positioning or moving components and finished parts. These rodless actuators are suitable for a diverse range of applications including assembly automation, packaging lines and electronics production. SMC’s revised MY1B range offers a number of benefits over the original design

Compact design
Up to 17% lighter than previous model
Auto-switches can be mounted in any position
Piping can be connected from 4 directions
Cushion needle easy to adjust using hexagon wrench
Side supported to prevent cylinder tube deflecting at longer strokes.
New dust seals use magnetic attraction to improve retention and service life.
Floating bracket connection for easier installation
