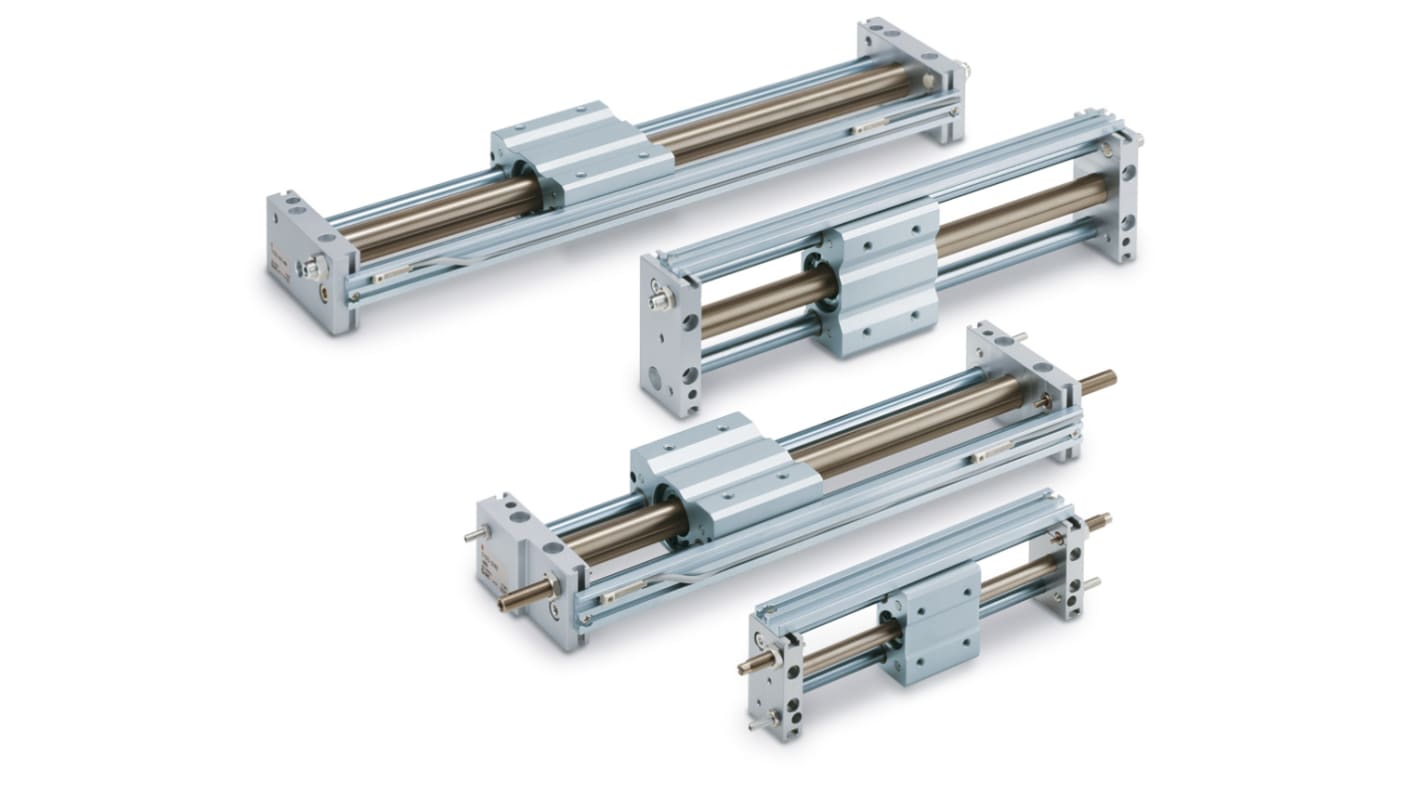

SMC Double Acting Acting Rodless Pneumatic Cylinder 15 mm Bore 750 mm
- RS Stock No.:
- 254-6726
- Mfr. Part No.:
- CY1L15H-300
- Brand:
- SMC
Subtotal (1 unit)*
£615.87
(exc. VAT)
£739.04
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £615.87 |
*price indicative
- RS Stock No.:
- 254-6726
- Mfr. Part No.:
- CY1L15H-300
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Rodless Pneumatic Cylinder | |
| Bore Size | 15mm | |
| Stroke Length | 750mm | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 7 bar | |
| Cushioning Type | Rubber, Shock Absorber | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Weight | 1.1kg | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Rodless Pneumatic Cylinder | ||
Bore Size 15mm | ||
Stroke Length 750mm | ||
Action Type Double Acting | ||
Maximum Operating Pressure 7 bar | ||
Cushioning Type Rubber, Shock Absorber | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Weight 1.1kg | ||
- COO (Country of Origin):
- JP
The SMC rod less cylinder has magnetically coupled uses industrial strength magnets located in the piston and external carriage to form a single unit that will travel when actuated with air pressure. It is available in a standard or heavy duty magnetic ho
0.18 Map minimum operating pressure
Auto switch capable
