Parker Origa G 1/8 Pneumatic Regulator - 0bar to 8bar, 1/8 in, 10bar max. input

View all Pneumatic Regulators
Discontinued

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Parker Origa G 1/8 Pneumatic Regulator - 0bar to 8bar, 1/8in, 10bar max. input
RS Stock No.
290-3412

Each

£703.08

(exc. VAT)

£843.70

(inc. VAT)

RS Stock No.:
290-3406
Mfr. Part No.:
PS11140-B-01
Brand:
Parker Origa
Find similar products by selecting one or more attributes.
Select all

Brand

Parker Origa

Port Connection

G 1/8

Maximum Outlet Pressure

8bar

Minimum Outlet Pressure

0bar

Maximum Input Pressure

10bar

Manufacturer Series

Piezo

Port Connection Thread Size

1/8 in

Maximum Flow Rate

350L/min

Typical Flow Rate

200L/min

Integral Check Valve

Without Check Valve

Port Connection Thread Standard

G

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+50°C

RoHS Status: Not Applicable

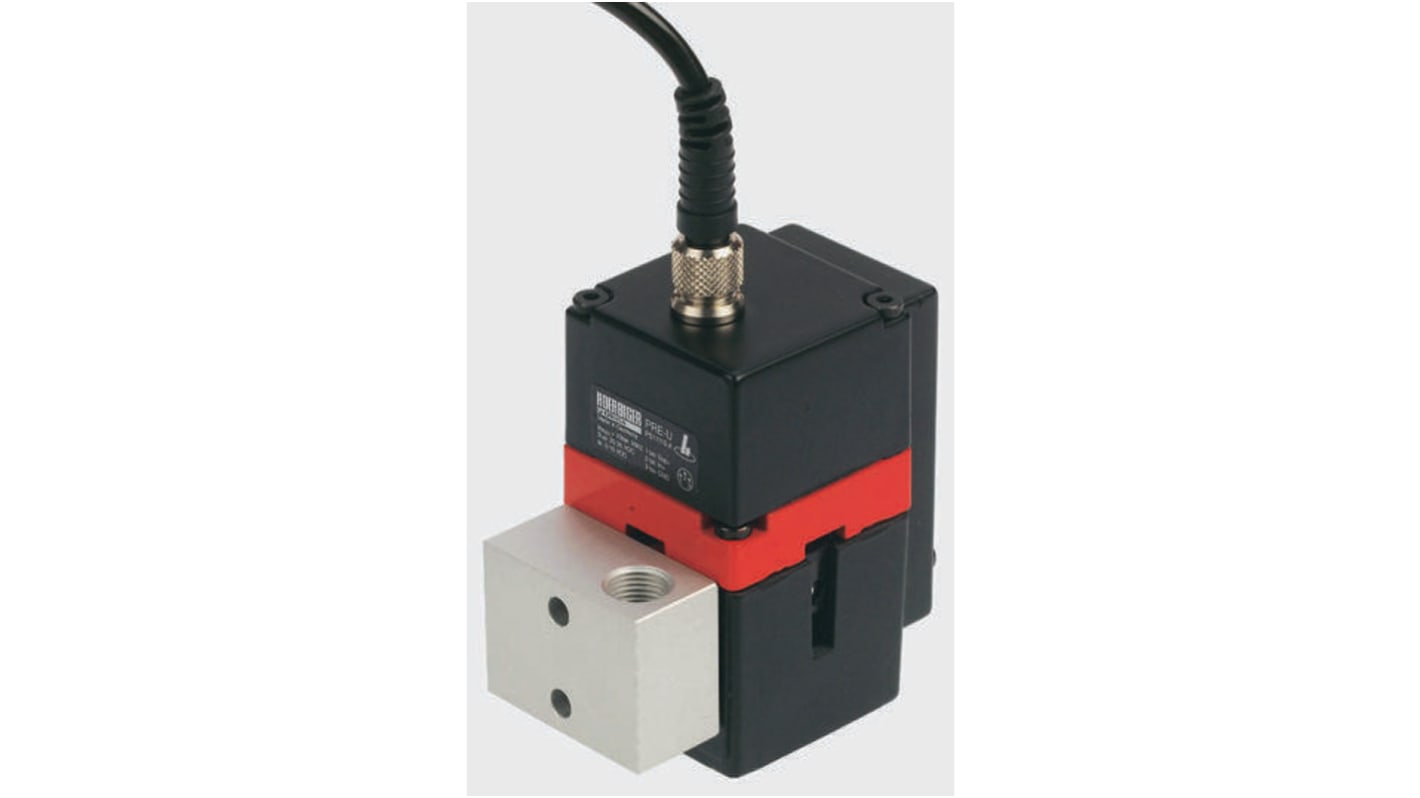

G 1/8 Piezo Type Pressure Regulator


Compact, lightweight design
Temperature range: 0° to +50°C
Typical flow: 130l/min
Fast response: 42Hz
High precision and reliability
Low power consumption
Integrated closed loop pressure measurement
Requires dry air filtered to 5μm; 1.5 to 10 bar
Weight: 180g

Note

The Regulator is supplied without the Mounting Block and Cable. To order a Piezo Regulator, Mounting Block and Cable please quote stock number 290-3406
