SMC G 1/4 Pneumatic Regulator - 0.5bar to 8.5bar, 10bar max. input
- RS Stock No.:
- 234-4190
- Mfr. Part No.:
- AR30-F02G-A
- Brand:
- SMC
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£29.85
(exc. VAT)
£35.82
(inc. VAT)
- RS Stock No.:
- 234-4190
- Mfr. Part No.:
- AR30-F02G-A
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Port Connection | G 1/4 | |
Maximum Outlet Pressure | 8.5bar | |
Minimum Outlet Pressure | 0.5bar | |
Maximum Input Pressure | 10bar | |
Manufacturer Series | AR30 | |
Typical Flow Rate | 20L/min | |
Select all | ||
---|---|---|
Brand SMC | ||
Port Connection G 1/4 | ||
Maximum Outlet Pressure 8.5bar | ||
Minimum Outlet Pressure 0.5bar | ||
Maximum Input Pressure 10bar | ||
Manufacturer Series AR30 | ||
Typical Flow Rate 20L/min | ||
- COO (Country of Origin):
- JP

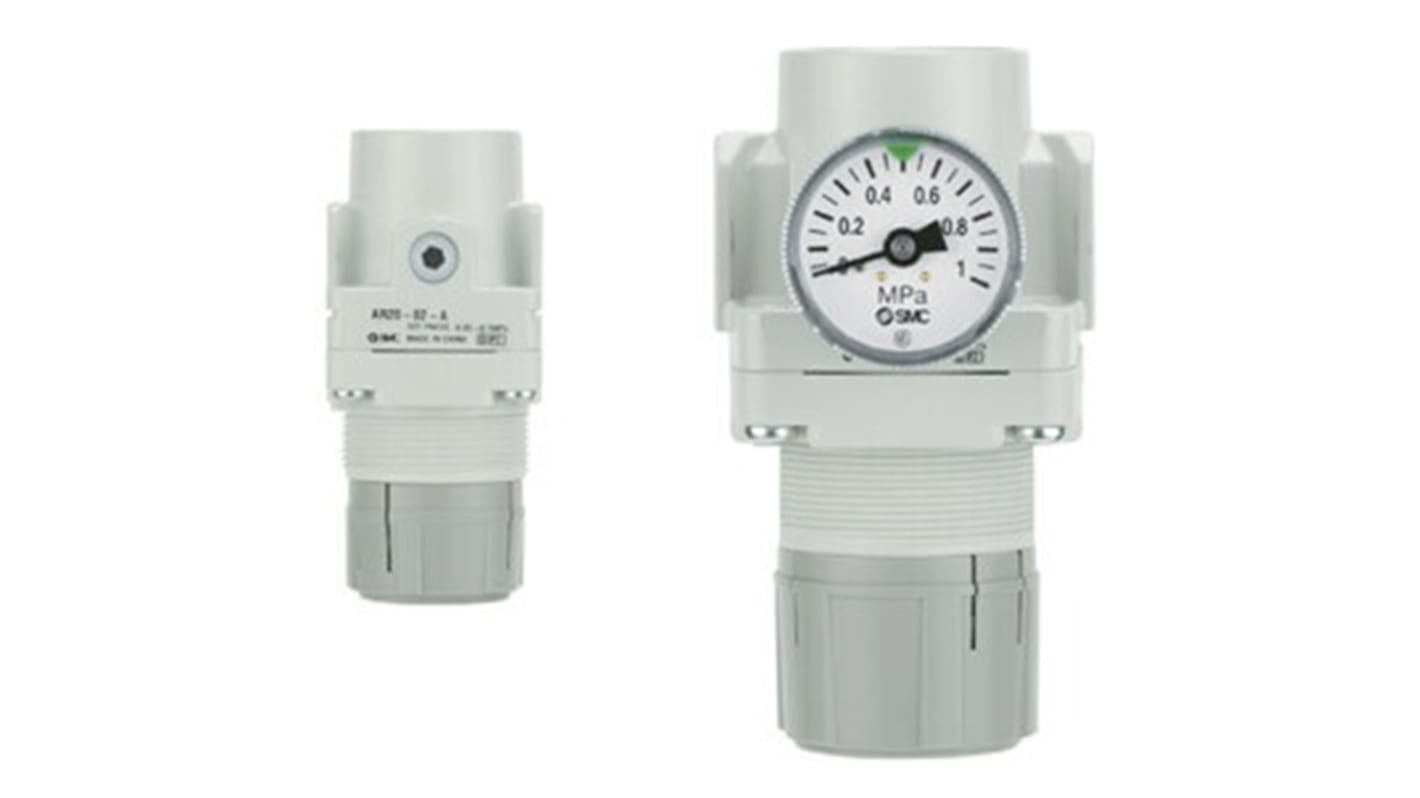

The SMC series AR-B regulators cost effective and clean looking offer various pressure range settings to accommodate most applications. The locking adjustment knob prevents accidental setting changes. The modular design of the AR series connects with other SMC air preparation equipment.
Modular type regulator
Available with built-in backflow mechanism
Optional embedded pressure gauge
Rc, NPT or G(PF) threads
Diaphragm is made of ozone resistant rubber material (HNBR)
Available with built-in backflow mechanism
Optional embedded pressure gauge
Rc, NPT or G(PF) threads
Diaphragm is made of ozone resistant rubber material (HNBR)
